Rohde & Schwarz NGT3600 Series DC Power Supplies With 1800W per Channel

Benefits of the NGT3621 1-Channel and NGT3622 2-Channel Power Supplies

• 1 or 2 channels with 1800 W power each.
• 80 V or 50 A per channel, with Multi-Device Mode up to 480 V or 300 A.
• Wide touch screen, USB and LAN/Ethernet.

Rohde & Schwarz NGT3600 Series DC Power Supplies With 1800 W per Channel

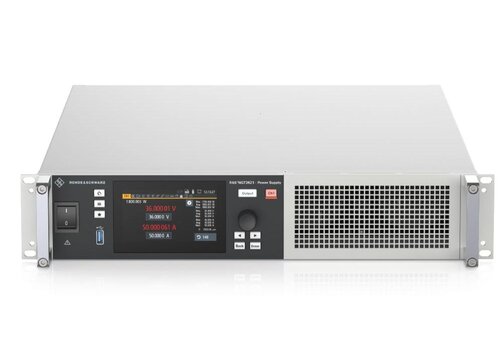

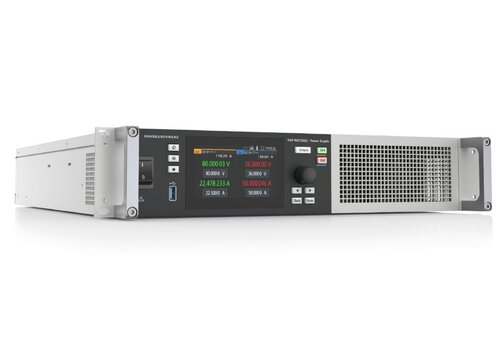

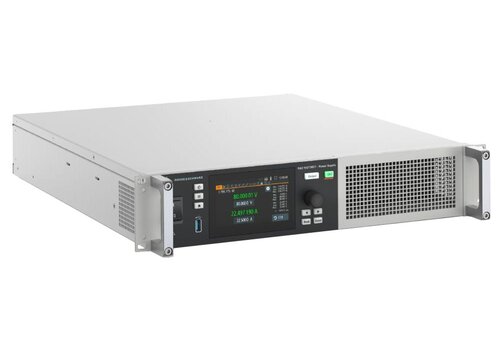

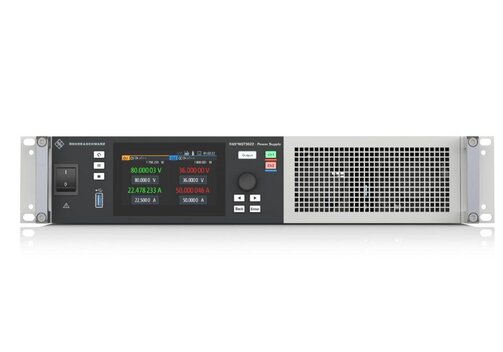

The DC power supplies of the Rohde & Schwarz NGT3600 series offer one (NGT3621) or two (NGT3622) channels with a power of 1800 W each. Per channel they can supply a voltage of max. 80 V or a current of max. 50 A. The devices are operated via a capacitive touch display and can be programmed and remotely controlled via USB or LAN/Ethernet.

• One or two channel DC power supplies.
• Max. output power 1800 W per channel (total 3600 W on the 2-channel model).
• Max. voltage per output 80 V;
  max. current per output 50 A;
  up to 480 V or 300 A in Multi-Device mode.
• Additional features such as arbitrary function, remote sensing, data logging.
• OVP, OPP, and OTP protection festures.
• Wide touch screen.
• USB and LAN/Ethernet interfaces.

Model Overview
