PeakTech P268/2685 HV-Insulationstesters, up to 10,000V/600GΩ

Obsolete - not available
min Quantity
1 piece
Unit price
base price
Variants
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Files/Downloads

EOL/obsolete, not available anymore

Benefits

  • Up to 10,000 V test voltage.
  • LCD display.
  • Acoustic and visual alarm signal.

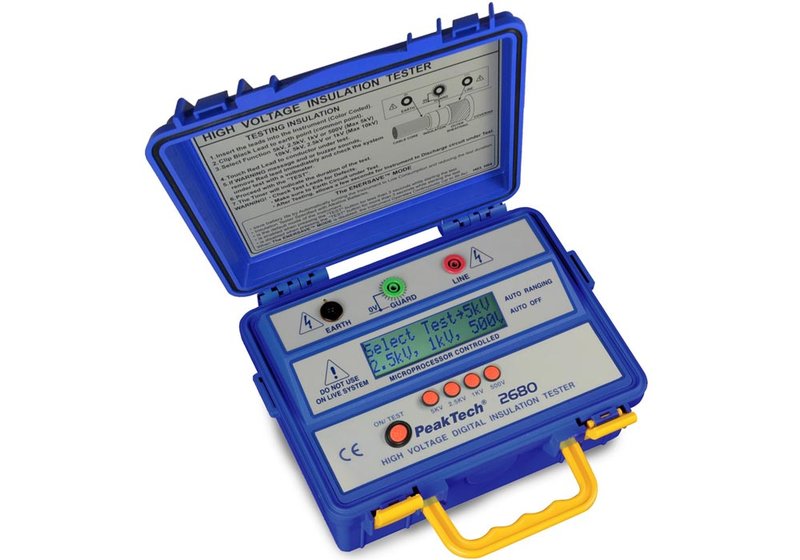

PeakTech P268x HV-Insulationstesters, up to 10,000 V/600 GΩ

The PeakTech series P268x testers enable measurements according to VDE 0413. The highly accurate, rugged testers have a a two-line (16 digit) LCD-display and were especially designed to read accurate measurements in harsh environments. An internal guard circuitry helps to eliminate measurement errors based on surface leakage current. The tester is controlled by a CMOS microprocessor with testvisual and audible early warning function. Further functions include long calibration interval, EEPROM-technology, an energy-save-program to save batteries, growbar, flash-test protection, current limit/power limit / auto-discharge detector-indicator, auto-off shut-down the tester, auto-stop timer shut-down the test. Depending on the model, the DC test voltage is 5,000 or 10,000 V.

  • Professional insulation measuring device with up to 10,000 V test voltage.
  • Easy handling and automatic measuring function.
  • Stable and splash-proof housing with carrying strap.
  • Security: EN 61010-1; CAT III.

Model Overview

ModelP2680P2685
DC test voltage500/1,000/2,500/5,000 V1,000/2,500/5,000/10,000 V
GΩ-measuring ranges30 GΩ (500 V), 60 GΩ (1,000 V), 60 GΩ (1,000 V), 150 GΩ (2,500 V)150 GΩ (2,500 V), 300 GΩ (5,000 V), 300 GΩ (5,000 V), 600 GΩ (10,000 V)
Accuracy±5% + 2 digits
Max. output power limit1 W
Short circuit currentLCD display, 2-line, 16 digits each
Operation voltage8x 1.5 V batteries (UM3, AA)
Dimensions (mm)250 x 190 x 110; 1.5  kg

Included: P 2680 or P2685, heavy duty case, high grade colour modern flexible silicone test leads, ultrahigh voltage, integral guarded test probe and lead with coaxial silicone, batteries and operation manual.

Meilhaus Electronic is authorized Peaktech distributor
