Benefits of the Polaris 7044 USB "Switching Center"
- Flexible 4x4 USB matrix with 24 possible configurations.
- Supports USB 3, 2.0, and 1.1.
- Up to 6 W and 15 W power via USB.
ADI Icron Polaris 7044 USB 3-2-1 Matrix
The ADI Icron Polaris 7044 is a 4x4 USB 3-2-1 Matrix. With the Polaris 7044, any host can conveniently connect to, and switch between, one or more devices. Polaris supports USB 3 (5 Gbps), 2.0, and 1.1 devices while powering up to 15 W offering up to 24 possible configurations, controlled via RS232, web GUI, or API providing extremely flexible USB connectivity. Typical applications are boardrooms, divisible rooms, IT as part of a KVM, and desktop switching.
- 4x4 (4 upstream, 4 downstream) USB matrix.
- 24 possible configurations.
- Supports USB 3 (5 Gbps) and USB 2.0/1.1.
- 15 W of power per USB-C device port.
- 6 W of power per USB-A device port.
- RS232 and Network API.
- RS232, LAN Control with Web GUI interface.
- SSH secure login.
- 2 Polaris 7044 per single 19" rack space.
Model Overview

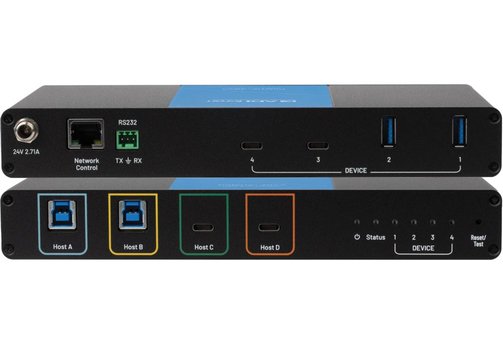

| Model | Polaris 7044 |

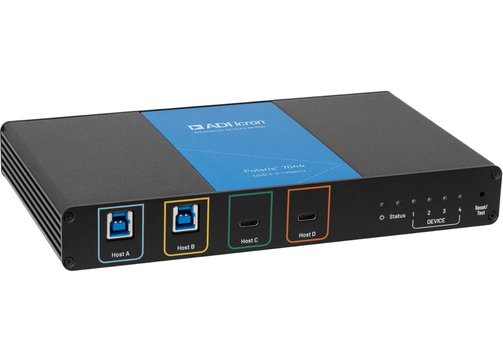

| Host upstream ports | 2x USB-B ports, 2x USB-C ports |

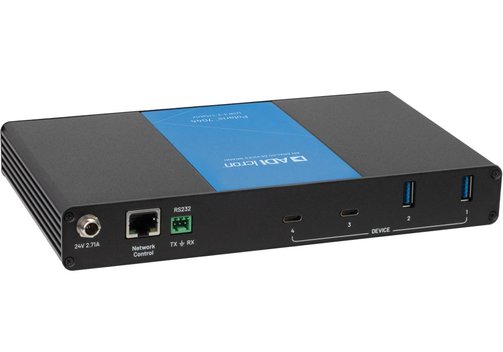

| Device downstream ports | 2x USB-A ports, 2x USB-C ports |
| Traffic types | Supports all USB traffic types |
| Device types | Supports all USB device types |
| Available power | 15 W per USB-C port, 6 W per USB-A port |
| Hub tiers used | 1 |
| Network | 100BASE-T |
| Control | 1x RJ45, 1x 3-Pin RS232 |
| Power supply | 100...240 VAC input, 24 V/2.71 ADC output |
| Dimensions (mm) | 213 x 125 x 30; enclosure material black anodized aluminum |
| Environmental | Temperature 0...+50°C (operating), -20...+70°C (storage), relative humidity (non-condensing) 20...80% (operating), 10...90% (storage) |
| Certifications | FCC (Class A), CE (Class A), RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1 4th ED |
Included: Polaris 7044 matrix, 24 V/2.71 A international power adaptor, country specific AC power cord, RS232 mating connector, default values label (to affix where desired), quick atart guide. Note: USB cables are not included.
