PicoSource AS108 8GHz Agile Synthesizer

6.408,27
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Item available at short notice. Delivery Time ~3-10 workdays
Item available at short notice. Delivery Time ~3-10 workdays
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

Benefits of the PicoSource AS108 USB PC Synthesizer up to 8.192 GHz

  • Professional and portable syntehsizer at low cost.
  • Frequency range 300 kHz to 8.192 GHz.
  • USB-controlled from a Windows PC or tablet.

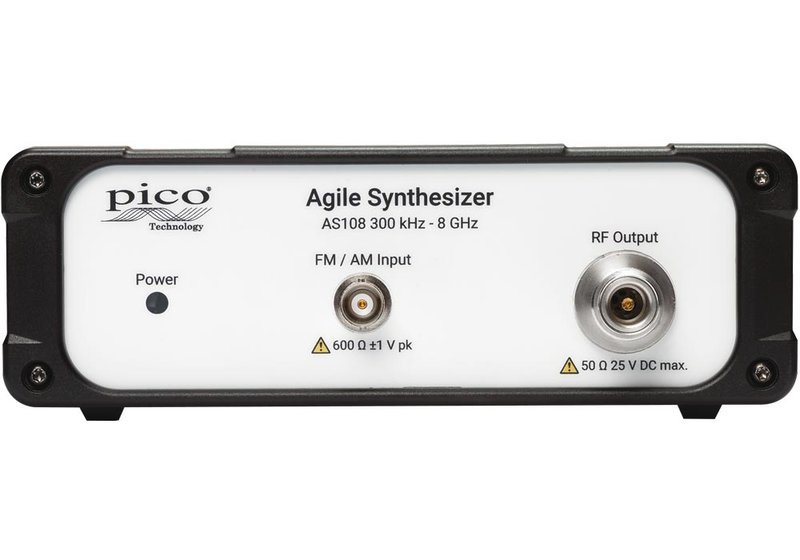

PicoSource AS108 8 GHz Agile Synthesizer.

The PicoSource AS108 agile synthesizer is designed to meet the needs of both benchtop and integrated module applications. Its broad 300 kHz to 8 GHz frequency range, fast settling and programmable phase, frequency and amplitude match it to a wide range of applications, with the added advantages of low cost, small footprint and 12 V to 15 V power requirement.

  • 300 kHz to 8 GHz operation.
  • -15 dBm to +15 dBm dynamic range.
  • Fast 55 µs frequency settling time to 10 ppm.
  • Fast amplitude settling: <25 µs to 1 dB and <200 µs to 0.1 dB.

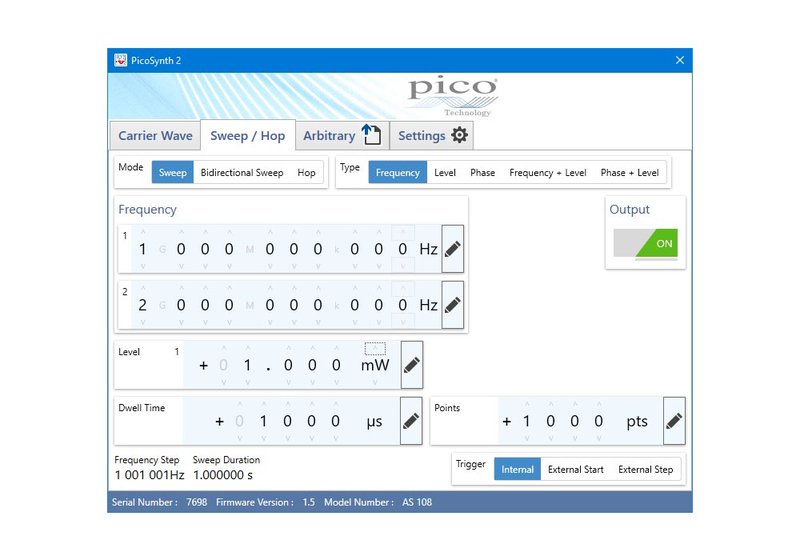

  • Sweep, hop and list of frequency and level or phase and level.
  • -100 dBc/Hz phase noise typical at 1 GHz and 10 kHz offset.
  • AM, FM, ΦM modulation, internal sine or external input.
  • Configurable stand-alone operation mode.

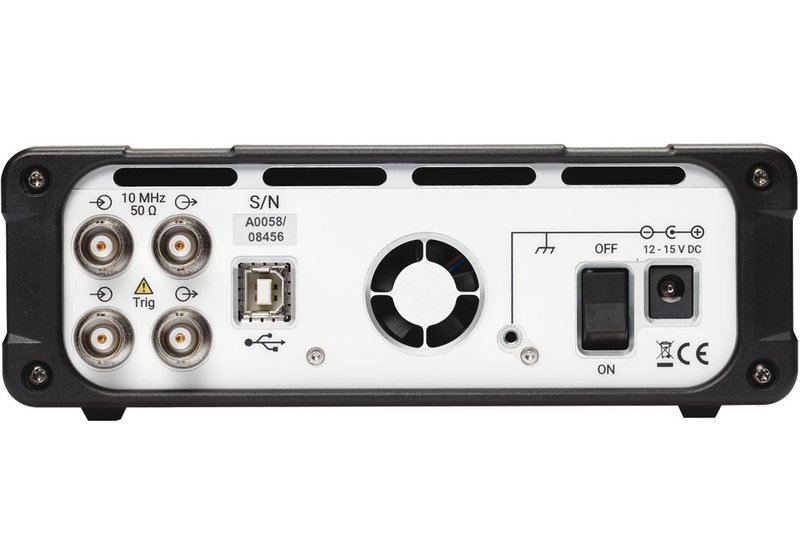

  • External reference clock I/O and trigger I/O.
  • Compact and portable.
  • Use sweep lists to emulate schemes such as QPSK, QAM, ASK, FSK
  • Adjustable dwell and trigger sweep or trigger next point modes.
  • Work in and convert units of measure to suit application.
  • Programming examples for LabVIEW, C, C#, Python, MATLAB.
  • Suited to bench, field and system integration applications.
  • USB-controlled from Windows PC and display or tablet.
  • Touch, mouse, keyboard or remote interface software (API included).
  • Multi-unit operation with synchronized modulation, sweeps, hops and lists.

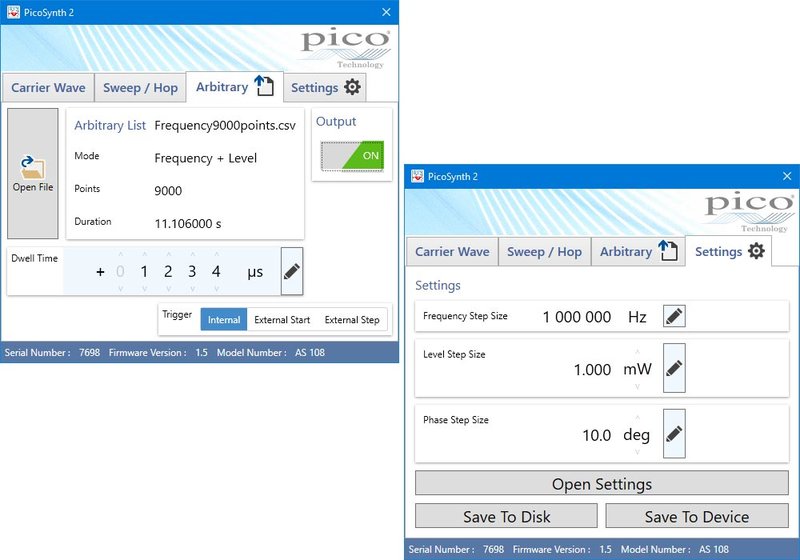

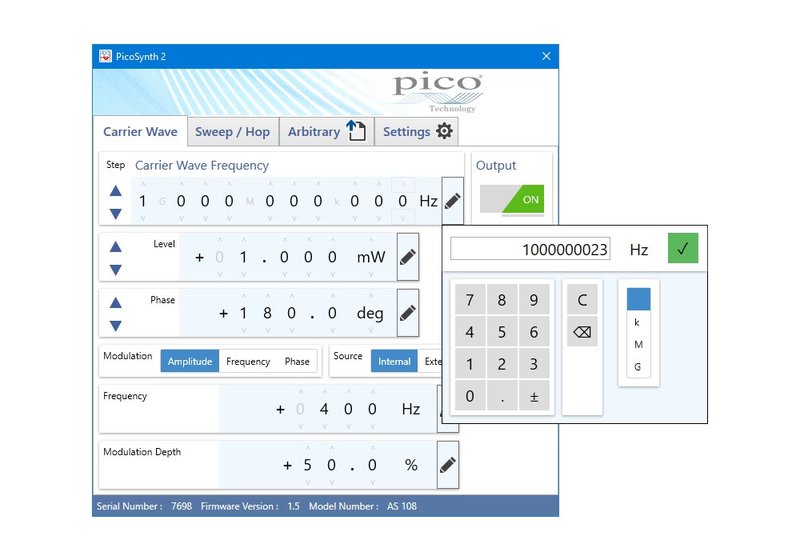

Included: PicoSource AS 108 (ordering code PQ163), power supply adaptor, PicoSynth2 software (download).
