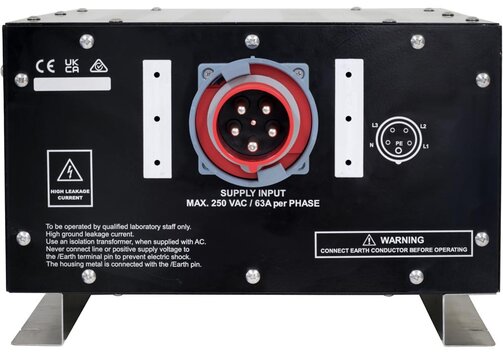

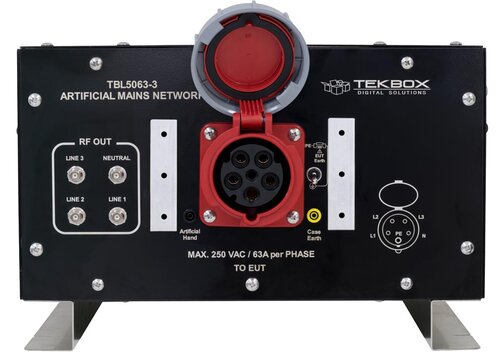

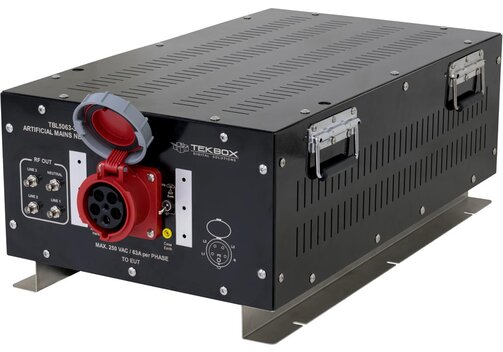

Tekbox TBL5063-3 50 µH Line Impedance Stabilisation Network LISN
Tekbox TBL0510-1 5 µH Line Impedance Stabilisation Network LISN
The Tekbox TBL0510-1 is an affordable 5 µH LISN designed for conducted emission measurements in the frequency range of 100 kHz to 400 MHz. It complies with CISPR-25 (EN 55025), numerous automotive manufacturer standards, MIL-STD-461F, DO-160, AECTP-500 and ISO 7637-2. The LISN is inserted into the supply lines of the EUT/DUT (Equipment/Device Under Test). Conducted noise which is present at the supply terminals of the DUT can be measured at the BNC connector s using a spectrum analyzer or a measurement receiver. The source (supply) terminal and the DUT terminal are decoupled by a 5 µH inductor. Two TBL0510-1 in combination with the Tekbox LISN Mate enable separate measurement of common mode and differential mode noise.
Model Overview
| Model | TBL0510-1 |
| Frequency range | 10 kHz...400 MHz; depending on standard and external capacitor |
| DC resistance | 40 mΩ |
| Continuous current | 10 A |
| Nominal operating voltage range | 0...60 VDC |
| Absolute maximum rating of internal components | 200 VDC; external 1 µF capacitor: 100 V |
| Other features |
|
Information on product safety:
Manufacturer:
TekBox Digital Solutions Vietnam Co. Ltd., Saigon Hi-Tech Park, Factory 4, 4F, Lot I-3B-1, N6 Street, Thu Duc City, 700 000 Ho Chi Minh City/VNM
www.tekbox.com
Responsible person:
Meilhaus Electronic GmbH, Am Sonnenlicht 2, 82239 Alling/DEU
