TekBox Torque Wrench

TekBox Torque Wrench

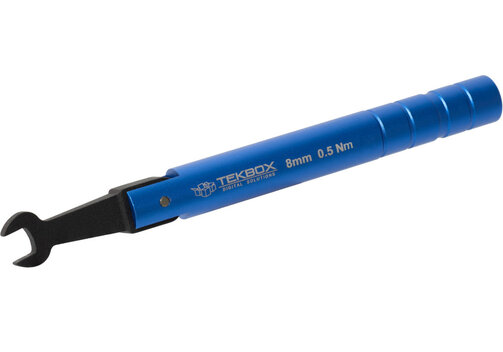

The TekBox TBTWR-05NM SMA torque wrench is a break-over type with a standard SMA 5/16" (8 mm) opening and is also suitable for 3.5 mm and 2.92 mm connectors.

• Economical SMA torque wrench to ensure consistent and reliable connections for RF/microwave measurements.
• Break-over type with a standard SMA 5/16" (8 mm) opening.
• Bidirectional operation.
• Default factory calibration: 0.5 Nm.
• Torque accuracy: ±0.05 Nm.
• Available in 0.5 Nm or 0.9 Nm (custom torque settings also available).
• Certificate of calibration available upon request (non-accredited).
• Each torque wrench has been hand-calibrated by Tekbox Digital Solution.
• Applications:
  • SMA with brass connectors: 0.5 Nm (5 in-lbs).
  • SMA with stainless steel connectors: 0.9 Nm (8 in-lbs).
  • For connecting 3.5 mm or 2.92 mm to SMA: 0.56 Nm (5 in-lbs).
  • For 3.5 mm and 2.92 mm: 0.9 Nm (8 in-lbs).
