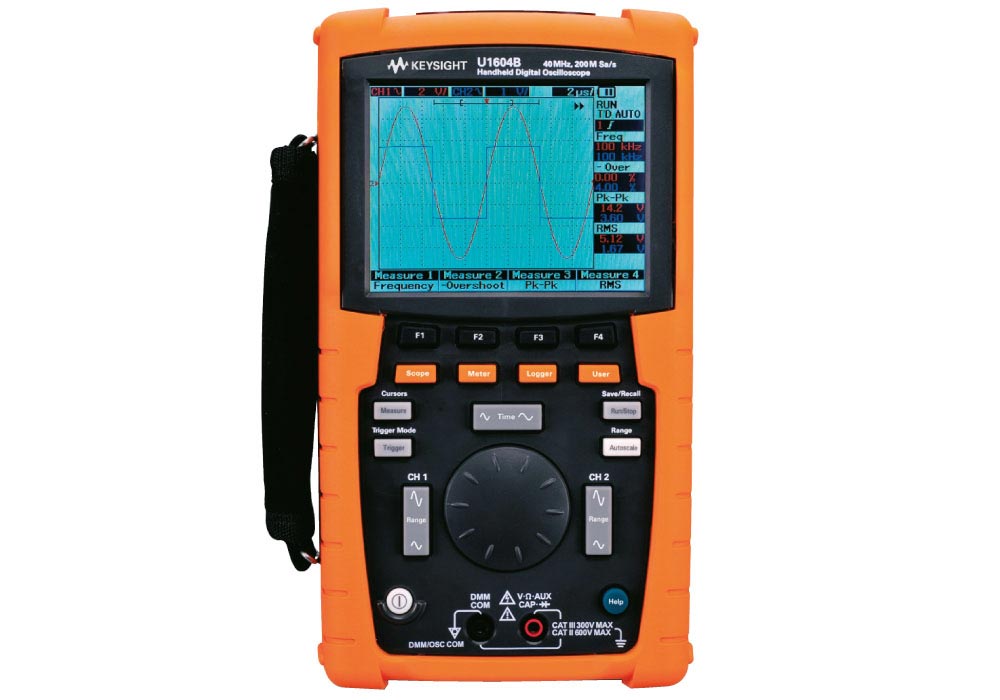

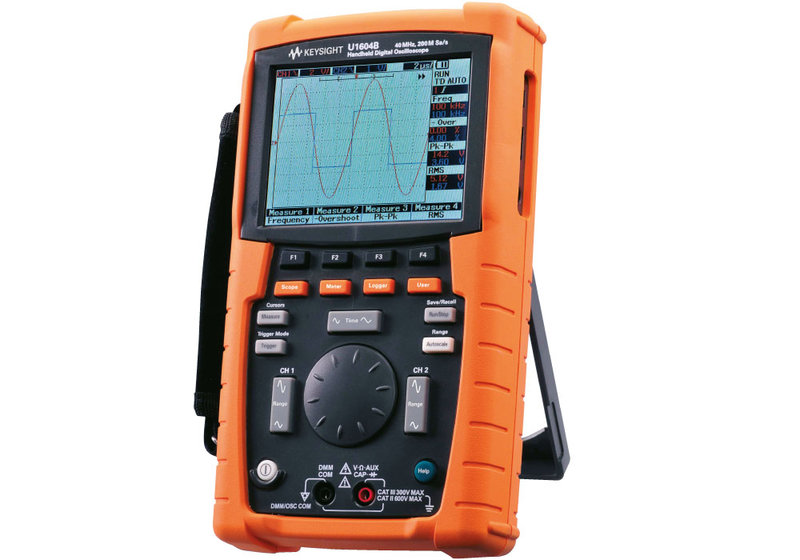

Keysight U1604B 40MHz Oscilloscope and Multimeter

Obsolete - not available
This Article is currently not on stock. Please enter your mail and we will notify you when the product is back on stock.
Your request has been accepted
Your mail is incorrect!
The requested article couldnt be found!
An error occured!
Please accept the Privacy Policy
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

EOL/obsolete, not available anymore

Keysight Handheld Digital Oscilloscope for Service and Maintenance, Battery for 5 h Operation

The Keysight U160xB handheld digital oscilloscope is a full-featured oscilloscope that offers maximum versatility for current and future needs. The U160xB model is a dual-channel, 20 or 40 MHz oscilloscope that has built-in DMM and DMM data logging functions.

  • Oscilloscope, digital multimeter and DMM datalogger in one device.
  • Waveform zoom and math functions for signal analysis.
  • Advanced triggers.
  • U1604B: DC...40 MHz oscilloscope bandwidth, 200 MS/s max. sample rate (one channel interleaved, 125 ns/div), 100 MS/s (per channel, 50 s/Div...250 ns/Div). Timebase range 10 ns...50 s/Div. Additional FFT spectrum analysis with four windowing techniques available.
  • Max. recording length: 125,000 points.
  • 6,000 count DMM resolution with built-in measurement functions including voltmeter, ohmmeter, and auxiliary meter.
  • Ni-MH-battery for 5 h operation.
  • USB interface. Application software included.

Model Overview

Model Channels Bandwidth Max. sample rate Other features
U1602B 2 20 MHz 200 MS/s Timebase range 50 ns...50 s/Div;
max. recording length 125,000 points
U1604B 2 40 MHz 200 MS/s Timebase range 10 ns...50 s/Div;
max. recording length 125,000 points

Included: Handheld device with battery, power adaptor, user manual, 2 probes, test lead set.
