USB-COM-M Series - USB-to-RS232, RS422, RS485 up to 32 Ports

USB-COM-M USB to 1/2/4/8/16/32 port RS232, RS422, RS485
additional images:
progressive price
taking 1 pcs
from
€ 48,00
taking 5 pcs
from
€ 45,60
Price
starting 48,00*
starting € 57,12 brutto
* excluding VAT plus shipping
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Description

Benefits

  • Converters from USB 1.1 to RS232, RS422, RS485.
  • ESD protection and model "SI" with opto-isolation
  • Easy installation and drivers for various operating systems.

USB-COM-M Series - Industrial Converters from USB to RS232 and/or RS422/485 in Metal Housing.

These converters from USB to serial match the requirements of many industrial applications: Depending on the model they are DIN-rail-, wall-, or rack-mountable and have metal housings.

  • Converters from USB to RS232, RS422/RS485, or RS232/RS422/RS485.
  • 1, 2, 4, 8, 16, or 32 serial ports. 9-pin D-sub male connectors.
  • USB 1.1 (compatible with 2.0/3.0), depending on model FullSpeed or HiSpeed.
  • Robust metal houtings. Depending on model wall-, DIN-rail, rack-mountable.
  • Serial rates up to 921.6 kbps.
  • Depending on the model: USB-powered or external power supply adaptor (included) or internal power supply (power cable incl.).
  • Drivers for various operating systems.

Model Overview

ModelConversionIsolation2)ESD protection3)ConnectorsPower supply
fromrateto serial1)rate

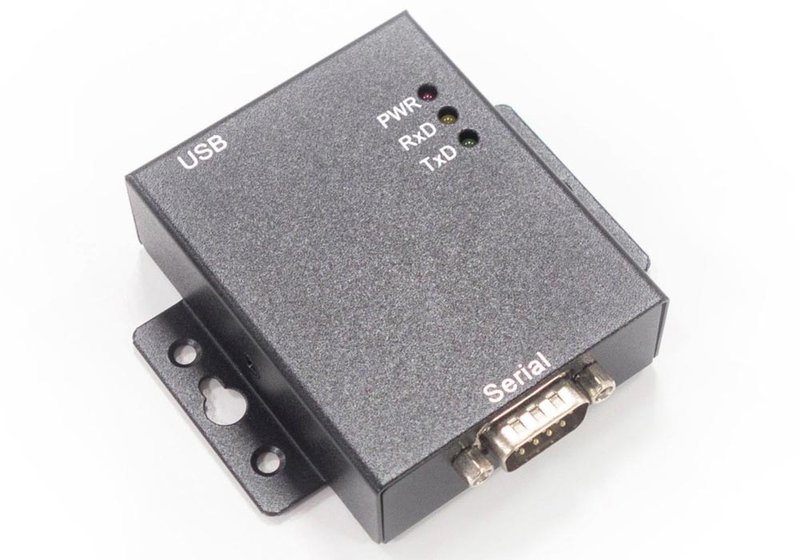

USB-COM-MUSB-1.0/1.1 compliant, USB 2.0- and 3.0-compatible12 Mbps, FullSpeed1x RS232921.6 kbps-10 kV9-pin D-sub male USB
USB-COM-SI-M1x RS2322 kV25 kVUSB-powered
USB-COMi-M1x RS232, RS422, RS485-10 kV9-pin D-sub male, 6-pin terminal blockUSB-powered

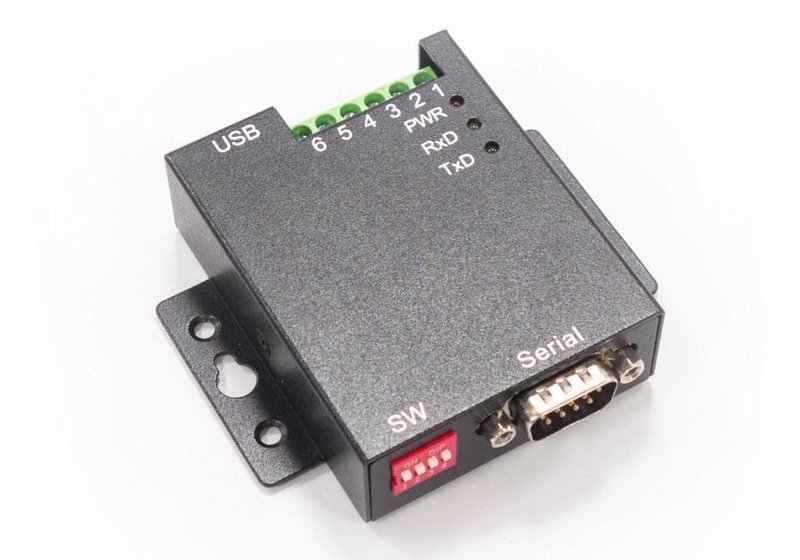

USB-COMi-SI-M1x RS232, RS422, RS4852 kV25 kVUSB-powered

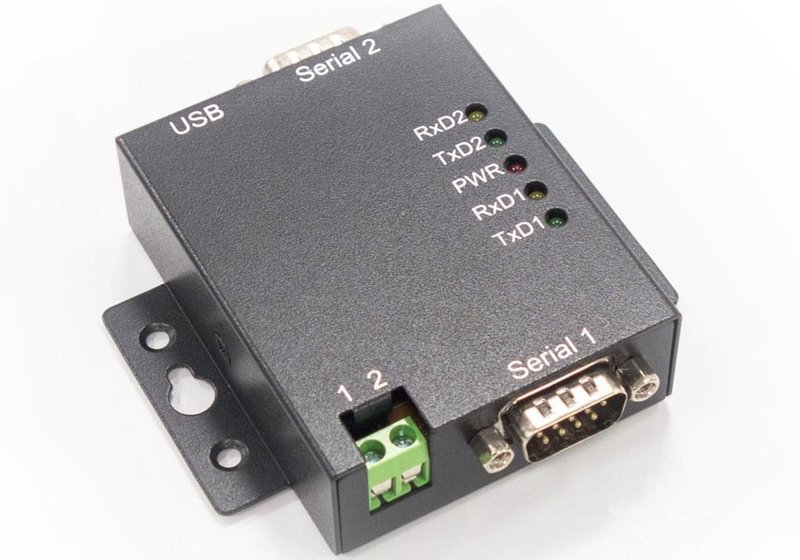

USB-2COM-MUSB-1.0/1.1 compliant, USB 2.0- and 3.0-compatible12 Mbps, FullSpeed2x RS232921.6 kbps-10 kV9-pin D-sub maleUSB-powered
USB-2COM-SI-M2x RS2322 kV25 kVUSB-powered

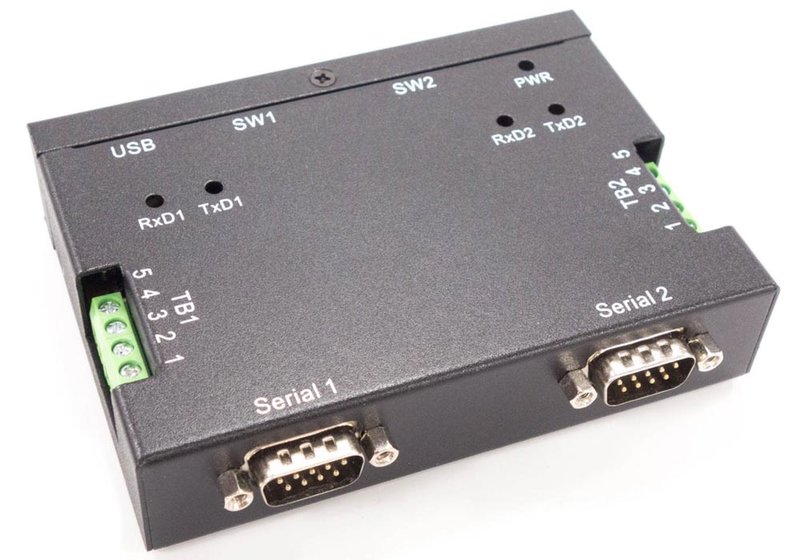

USB-2COMi-M2x RS422, RS485-10 kV9-pin D-sub male, 6-pin terminal blockUSB-powered

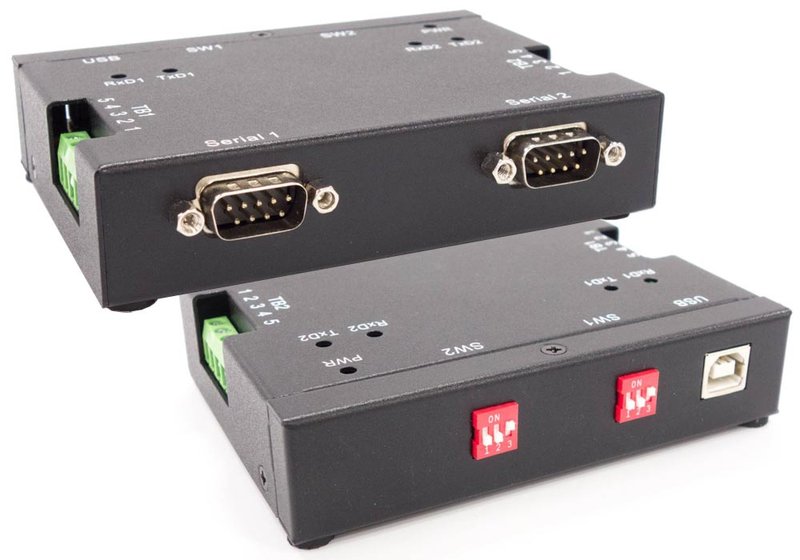

USB-2COMi-SI-M2x RS422, RS4852 kV25 kVUSB-powered

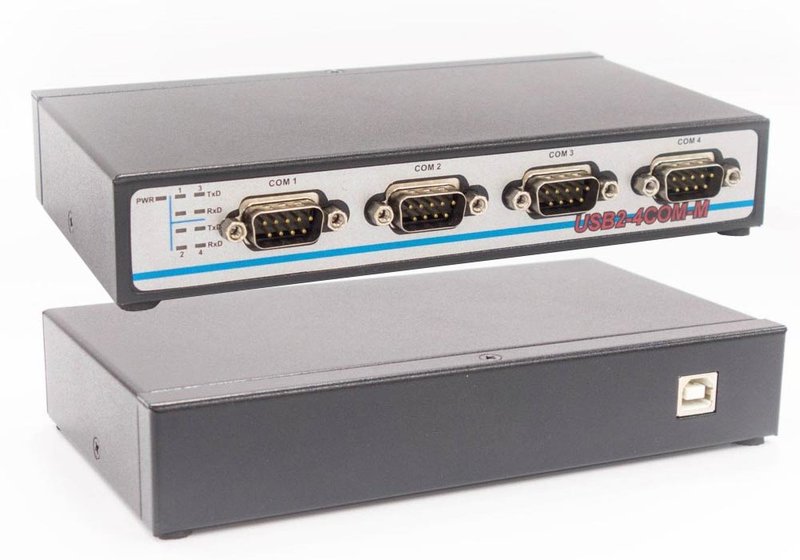

USB-4COM-MUSB-1.0/1.1 compliant, USB 2.0- and 3.0-compatible480 Mbps, HiSpeed4x RS232921.6 kbps-10 kV9-pin D-sub maleUSB-powered
USB-4COM-SI-M4x RS2322 kV25 kVexternal power supply

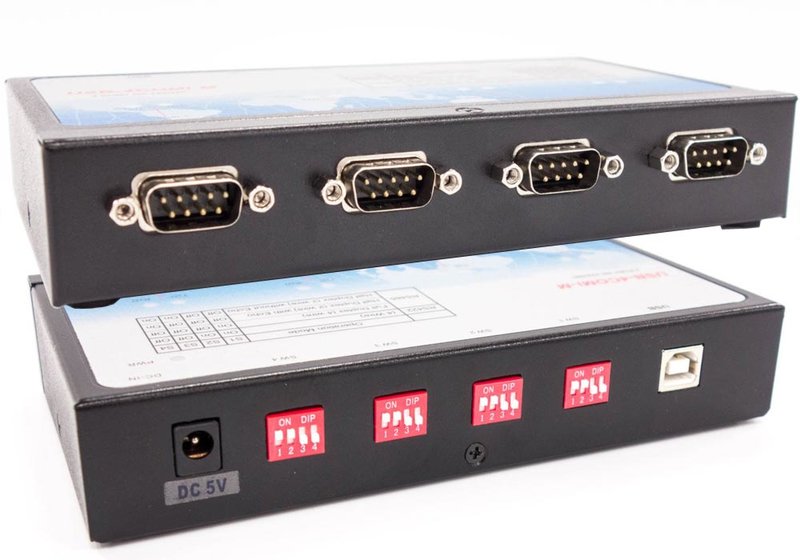

USB-4COMi-M12 Mbps, FullSpeed4x RS422, RS485-10 kVexternal power supply

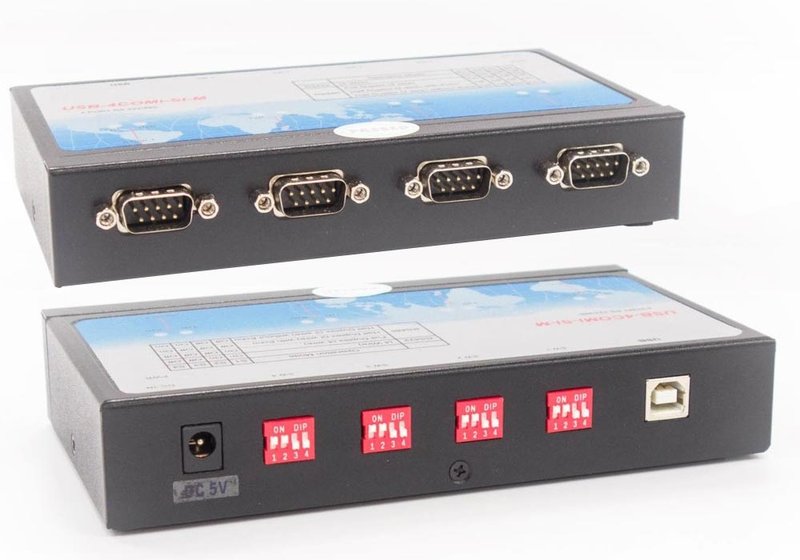

USB-4COMi-SI-M4x RS422, RS4852 kV25 kVexternal power supply

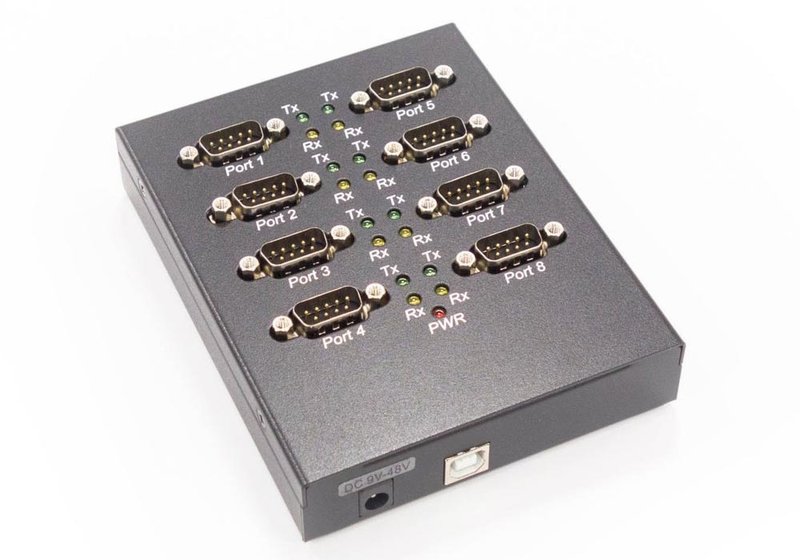

USB-8COM-MUSB-1.0/1.1 compliant, USB 2.0- and 3.0-compatible480 Mbps, HiSpeed8x RS232921.6 kbps-10 kV9-pin D-sub maleexternal power supply

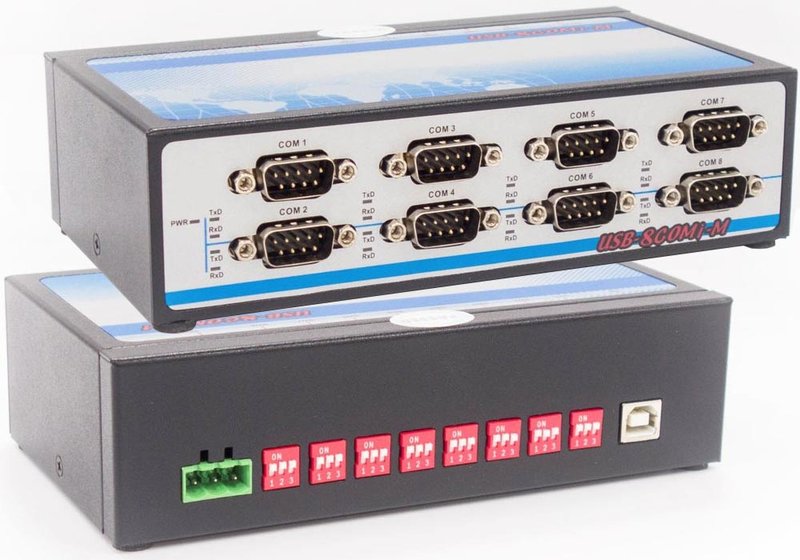

USB-8COMi-M12 Mbps, FullSpeed8x RS422/485external power supply

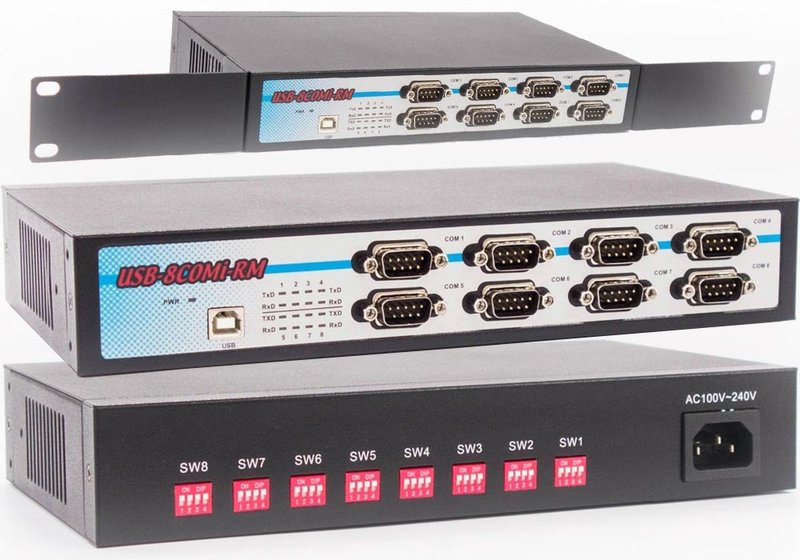

USB-8COMi-RM8x RS232, RS422, RS485internal power supply

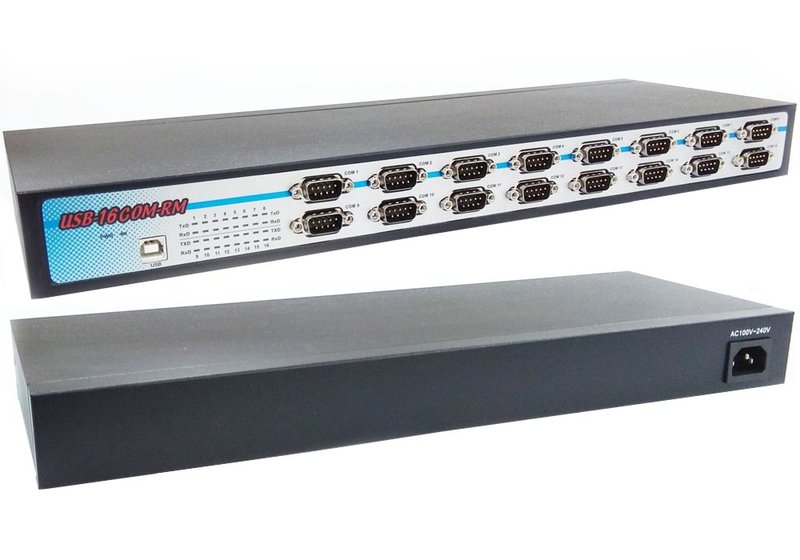

USB-16COM-RMUSB-1.0/1.1 compliant, USB 2.0- and 3.0-compatible480 Mbps, HiSpeed16x RS232921.6 kbps-10 kV9-pin D-sub maleinternal power supply

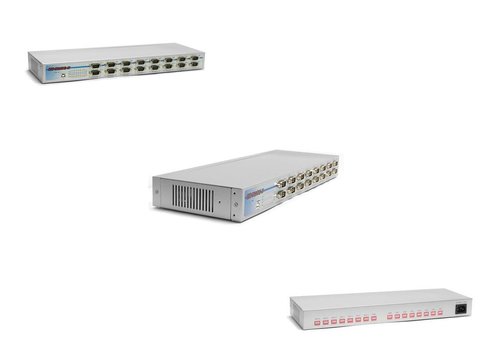

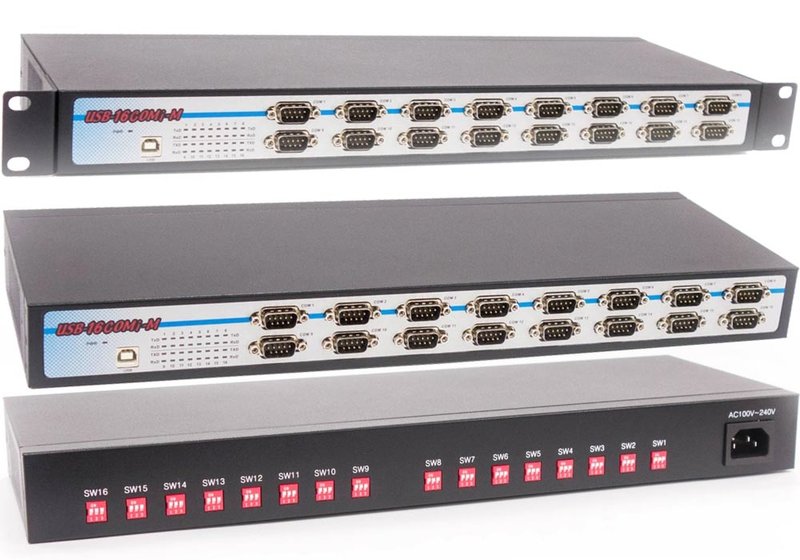

USB-16COMi-M16x RS422, RS485internal power supply

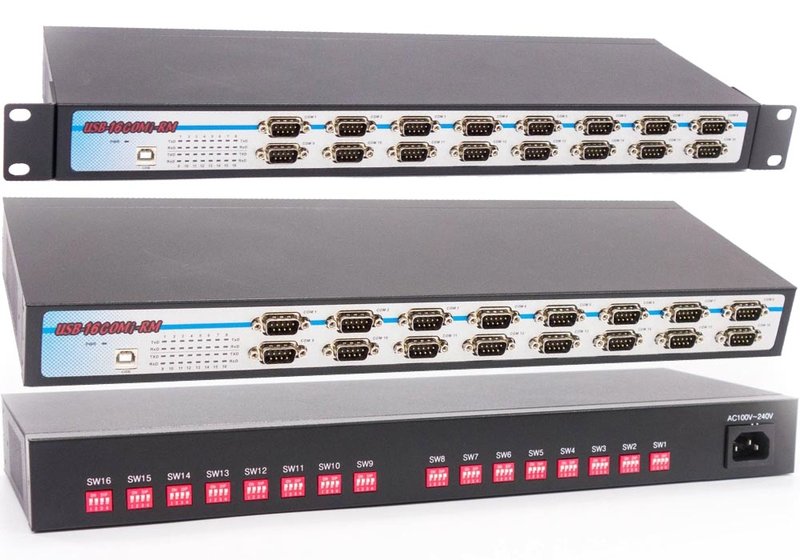

USB-16COMi-RM16x RS232, RS422, RS485internal power supply

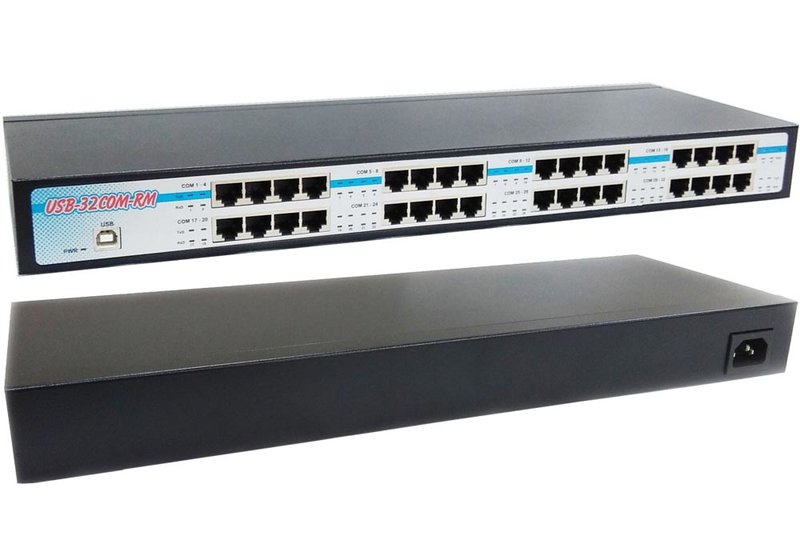

USB-32COM-RMUSB-1.0/1.1 compliant, USB 2.0- and 3.0-compatible480 Mbps, HiSpeed32x RS232921.6 kbps-10 kVRJ45 (32 cables RJ45 to 9-pin D-sub male incl., 150 cm)internal power supply

Included: Converter, USB cable, power supply adaptor (if stated in the table below), driver software (free download) and instructions for use (free download).
Software (download)4): Windows XP to 10, server 2000 to 2016 (WHQL-certified); Linux kernel 2.4 and above; Mac OS X 10.9 and above, driver signed by Apple.

  1. Software selectable.
  2. Opto-isolation, for all lines. Signals as well as signal GND isolated, shielding not isolated.
  3. For all lines.
  4. Subject to change - please ask!
