SWH-QC-0750C-R2 Waveguide Quick Connect
Description
Files/Downloads

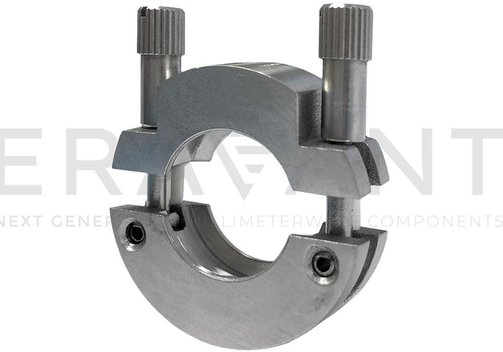

SWH-QC-0750C-R2 Waveguide Quick Connect

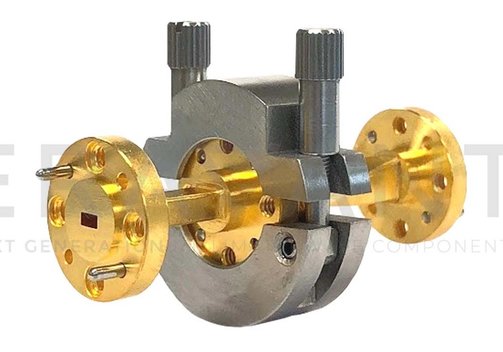

- Waveguide quick connect apparatus for 0.75"/19 mm circular flange.
- Hand screw clamping.
- Fast connection and disconnection.
- Tight space waveguide flange connection and disconnection.
- Waveguide support when used with stand.
- Leaking prevention.
- Applications:
Test instrumentation.
Sub-assemblies.
Lab use.
Model Overview
| Model | SWH-QC-0750C-R2 |
| Compatible flange type I | UG-385/U |
| Compatible flange type II | UG-387/U |
| Compatible flange type III | UG-387/U-M |
| Dimensions (mm) | 38 x 31.8 x 11; 37 g |
| Material | Brass and stainless steel |
| Outline | WH-0750C-R-BX1 |
