Keysight 3419xA Series Rack Mount Kits
Model Overview
| Model | Description | For use with... | |

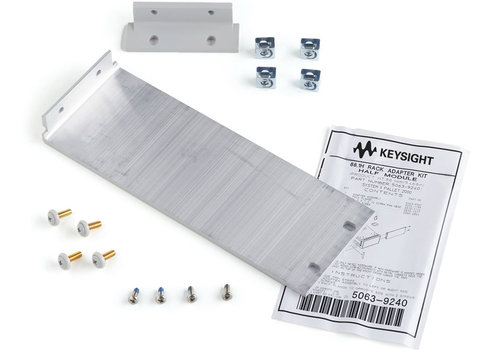

| 34190A | 5063-9240 | Rack mount adaptor kit, rack mount flange with adaptor kit (one flange bracket and adaptor), mounts ½-width modules or 2 ¼-width modules | 2U; 1x instrument module height 88.1 mm (3.5") |

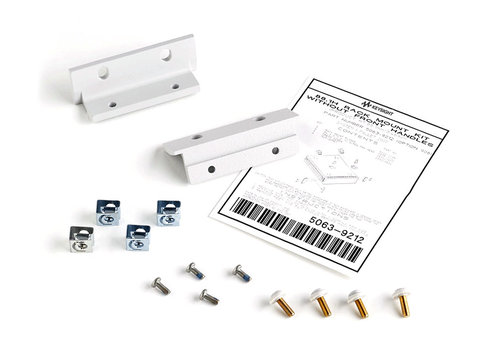

| 34191A | 5063-9212 | Rack mount adaptor kit, dual rack mount flange kit (two flange brackets) | 2U, 2x instrument module height 88.1 mm (3.5"); use with 34194A |

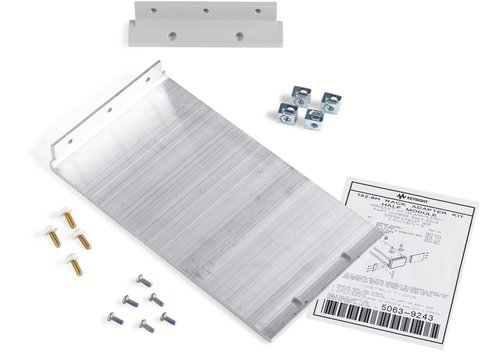

| 34193A | 5063-9243 | Rack mount adapter kit, rack mount flange kit (one bracket, one half-module bracket), mounts ½-width modules or 2 ¼-width modules | 3U, instrument module height 132.6 mm (5.25") |

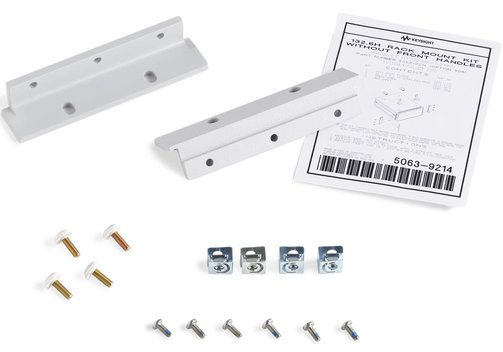

| 34192A | 5063-9214 | Rack mount adaptor kit, dual rack mount flange kit (two flange brackets) | 3U, instrument module height 132.6 mm (5.25"); use with 34194A |

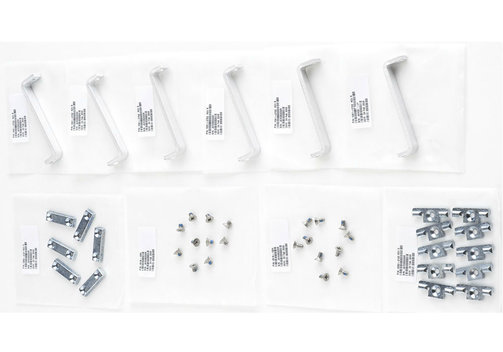

| 34194A | 5061-8769 | Dual lock link kit, to mount two Keysight instruments side by side | Use with 34191A or 34192A |
- Examples of 2U instruments: 34460A, 34461A, 34465A, 34470A, 34970A/34972A, 531xxA, 53200, 33500, 33600.
- examples of 3U instruments: E3631A to E3634A, E3646A to E3649A, 6811B, 6812B, 6813B.
