Aaronia High-tech Shielding Solutions

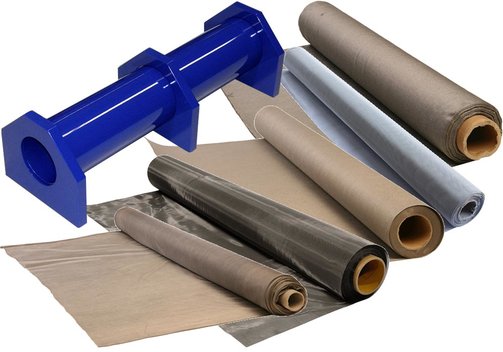

Shielding fabrics, foils, mats and much more for very high effective EMC protection. Equipped also for all future high frequency radiation sources in the high GHz range.

Model Overview

Model/ordering codeDescriptionDimensionsTech. specificationsMaterial

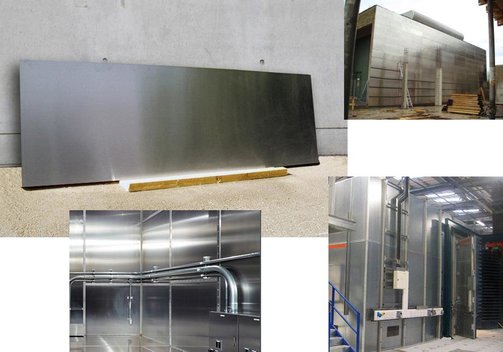

601/001Aaronia MagnoShield DURShielding panelDelivery unit: 1.32 m² (approx. 0.66 m x 2 m;
thickness: 0.5 mm.
Approx. 4 kg/m².
Final annealed for max. shielding performance.
Shielding factor: 10...13 (10...14 dB or 90...93%).
Saturation flux density approx. 0.8 Tesla.
Magnetic conducting material: Nickel-iron alloy, so called Mu-metal, isotropic.
Corrosion resistant, frost resistant.
Can be laid in plaster or concrete.
Color: dark silver, paintable.
Quality assurance system: ISO 9001.
Material acceptance test certificate: B according to EN 10204.

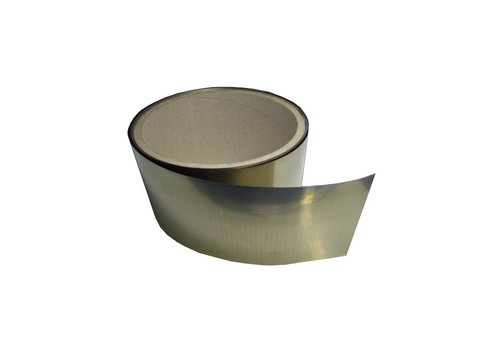

601/002Aaronia MagnoShield FLEXNon-self-adhesive shielding foil against static and low-frequency magnetic interference fields of all kinds.Web width 155 mm.
Length 1 m.
Material thickness Mu-Metal 0.1 mm, with foil/adhesive 0.23 mm.
Weight approx. 140 g/m.
Attenuation factor 5...7 (7...8 dB or 50...70%).
Saturation flux density approx. 0.8 Tesla.
Magnetically conductive material, nickel-iron alloy, so-called Mu metal, isotropic.
601/003Aaronia MagnoShield FLEX+Self-adhesive shielding foil against static and low-frequency magnetic interference fields of all kinds.Web width 91 mm.
Length 1 m.
Material thickness Mu-Metal 0.1 mm, with foil/adhesive 0.23 mm.
Weight approx. 140 g/m.
Attenuation factor 5...7 (7...8 dB or 50...70%).
Saturation flux density approx. 0.8 Tesla.
Magnetically conductive material, nickel-iron alloy, so-called Mu metal, isotropic.

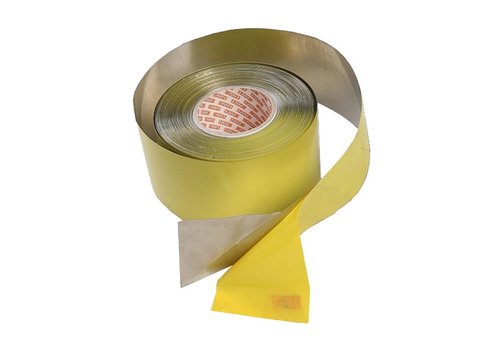

601/004Aaronia MagnoShield FLEX+ SWeb width 120 mm.
Length 1 m.
Material thickness Mu-Metal 0.1 mm, with foil/adhesive 0.23 mm.
Weight approx. 140 g/m.
601/005Zero-Gauss chamber ZG1Shielding chamber/"Zero-Gauss chamber"Length: 335 mm.
Outer diameter: 138 mm.
Inner diameter: 110 mm.
Shielding thickness: 14 mm.
Final annealed for max. shielding performance.
Magnetically conductive material: Nickel-iron alloy, so-called Mu-metal, isotropic.
Corrosion and frost resistant.
Color: dark blue.

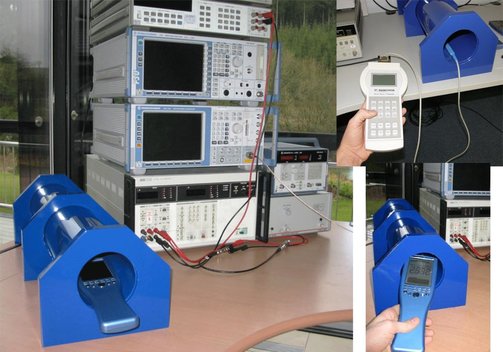

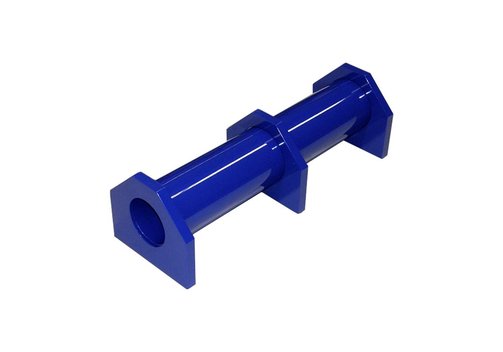

601/006Zero Gauss Chamber ZG2Length: 670 mm.
Outer diameter: 138 mm.
Inner diameter: 110 mm.
Shielding thickness: 14 mm.

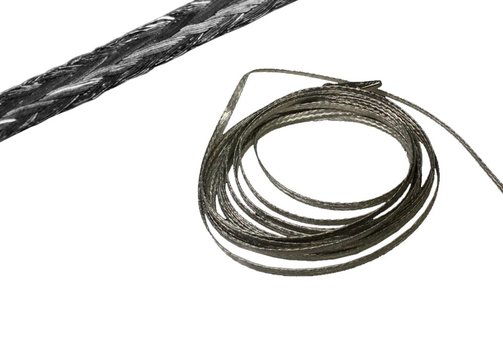

602/001Grounding packageGrounding braid cable and accessories5 m special grounding cable braid and mounting accessories that enable optimal and professional grounding of the A2000+, Aaronia-Shield and Aaronia X-Dream. Conforms to VDE guidelines.

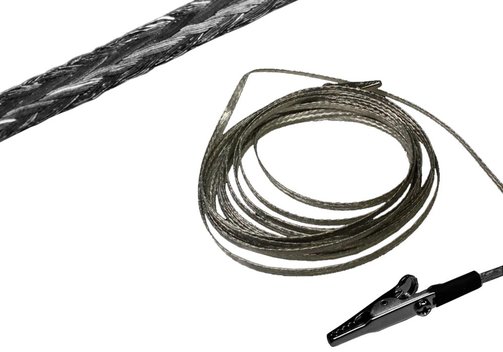

602/002Grounding package with crocodile clip groundingGrounding braid cable.
Crocodile clips and accessories
Contains 2 special grounding cables with crocodile clips (1x 5 m grounding strap for socket connection and 1x 3 m for connection to a radiator), which enables optimal and professional grounding of the A2000+, Aaronia-Shield and Aaronia X-Dream. Conforms to VDE guidelines.
602/004Aaronia Shield (50 dB)50 dB shielding fabricStandard delivery unit: 1 m², others on request.
Web width: approx. 1.4 m.
Thickness: 0.1 mm.
Weight: approx. 27 g/m².
Shielding property: Static fields 99.99...99.999% (only with grounding!), low frequency, electric fields: 99.99...99.999% (only with grounding!), high frequency fields: 43 dB (99.992%) at 10 GHz and 50 dB (99.999%) at 1 GHz (also without grounding!).Braiding material: High performance silver/polyamide blend (20%/80%).
Mesh size: approx. 0.7 mm.
Color: Silver/old silver.
Extremely breathable. Odorless. Extremely transparent. Can be processed like fabric. Ideal for clothing, curtains, drapes, canopies, protective suits, etc. Rot-proof. Frost resistant. Antistatic. Antiseptic. Washable, foldable, bendable. Can also be used as transparent fly screen.

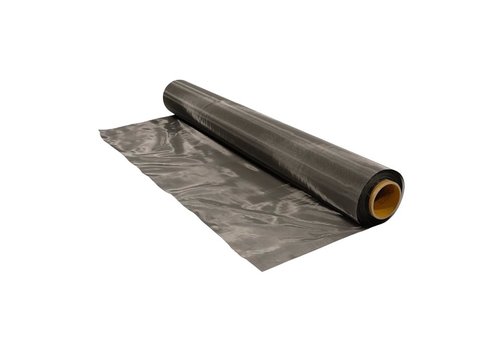

602/005Aaronia Shield ULTRA (70 dB)70 dB shielding fabricStandard delivery unit: 1 m², others on request.
Web width: approx. 1 m.
Material thickness: 0.085 mm.
Weight: approx. 34 g/m².
High attenuation factor of 65 dB at 1 MHz, 70 dB at 1 GHz and 46 dB at 10 GHz (tested according to ASTM D 4935-10).
Surface resistance Ω/sq: Less than 0.1.
Material: High performance copper/nickel/polyester compound.
Mesh count/inch: 200. Color: Gray.
Non-oxidizing, nickel outer layer for corrosion resistance.
Semi-transparent. Rustproof. Frost resistant. Tear resistant. Foldable. Excellent surface conductivity.

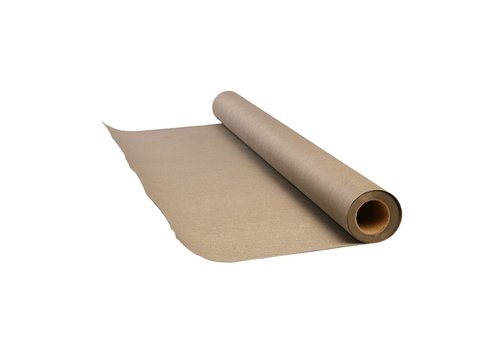

602/006Aaronia X-Dream (100 dB)100-dB shielding fleeceStandard delivery unit: 1 m², others on request.
Web width: 1.4 m.
Thickness: 0.5 mm.
Weight: approx. 130 g/m².
Shielding property: Static fields 99.999999...99.99999999% (only with grounding!), low frequency, electric fields 99.999999...99.99999999% (only with grounding!), high frequency fields: 70 dB (99.99999%) at 20 GHz to over 110 dB (99.9999999%) at 500 MHz (also without grounding!).Material: High performance copper/nickel/polyester blend.
Color: Silver.
Breathable. Rot-proof. Frost resistant. Foldable. Bendable. Paintable. Antistatic. Very light. Can be laid in concrete.

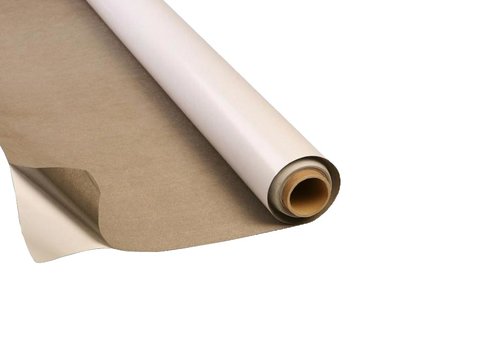

602/007Aaronia X-Dream Plus (100 dB)100-dB shielding fleece, self-adhesiveStandard delivery unit: 1 m², others on request.
Web width: 1.4 m.
Thickness: 0.5 mm.
Weight: approx. 300 g/m².
Shielding property: Static fields 99.999999...99.999999% (only with grounding!), low frequency, electric fields 99.999999...99.999999% (only with grounding!), high frequency fields: 70 dB (99.99999%) at 20 GHz to over 110 dB (99.9999999%) at 500 MHz (also without grounding!).Material: High performance copper/nickel/polyester mixture.
Color: Silver.
Self-adhesive.
Breathable. Rot-proof. Frost resistant. Foldable. Bendable. Paintable. Antistatic. Very light. Can be laid in concrete.

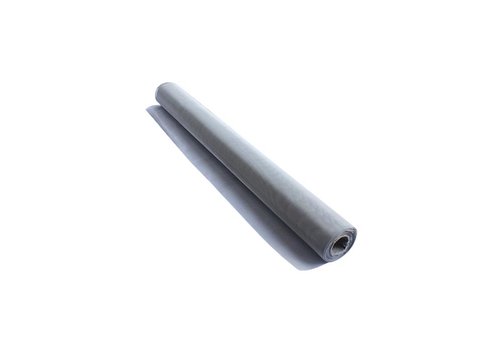

602/008Aaronia Mesh (60 dB)Shielding fabricLength per standard delivery unit: 1 m (1 m²). Cut goods/by the meter and other on request.
Web width: 1 m.
Thickness: 0.2 mm.
Weight: Approx. 400 g/m².
Attenuation property: 108 dB at 1 kHz, 100 dB at 1 MHz, 60 dB at 100 MHz, 44 dB at 1 GHz, 30 dB at 10 GHz.
Shielding property: Static fields 99.9999...99.99999% (only with grounding!), low frequency, electric fields 99.9999...99.99999% (only with grounding!).
Braiding material: high performance stainless steel, mesh size: approx. 0.1 mm, color: stainless steel.
Very transparent, perfect for shielding window frames, peepholes etc. Can be used up to over 600 degrees Celsius! Extremely breathable. Odorless. Translucent. Rot-proof. Frost resistant. Washable. Foldable. Bendable.

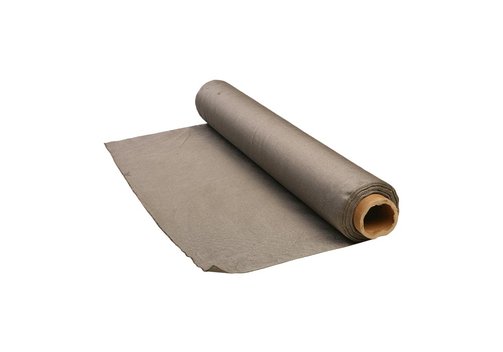

602/009Aaronia X-Steel (80 dB)Shielding fabricLength per standard delivery unit: 0.25 m (0.25 m²). Cut goods/by the meter and other on request.
Web width: approx. 0.5 m.
Thickness: 1 mm.
Weight: approx.
1120 g/m² Shielding property: Static fields 99.99999...99.999999% (only with grounding!), low frequency, electric fields: 99.99999...99.999999% (only with grounding!), high frequency fields 80 dB (99.999999%) at 1 GHz.Braiding material: High performance stainless steel. Mesh size: Multilayer, approx. 0.1 mm. Color: Stainless steel.
Practically indestructible. Used in industrial and military applications. Can be used up to over 600°C. Extremely breathable. Extremely dimensionally stable. Odorless. Translucent. Can be processed like fabric. Ideal for ventilation diffusers, clothing, curtains, drapes, canopies, protective suits, etc. Rot-proof. Frost resistant. Antistatic. Washable. Foldable. Benable.

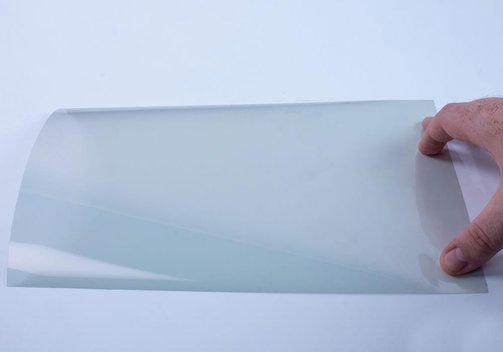

602/010Aaronia Shield TF 91 (32 dB)Transparent shielding foil1 m² (0.91 m x 1.10 m).Attenuation factor 32 dB.
Optical transparency ≥75 VLT.
Shielding effectiveness (SE) ≥32 dB (frequency range 10 MHz...26 GHz).
Standards/Compliance: ASTM D4935 and IEEE Std 299 (previously MIL STD 285).
Patented technology.

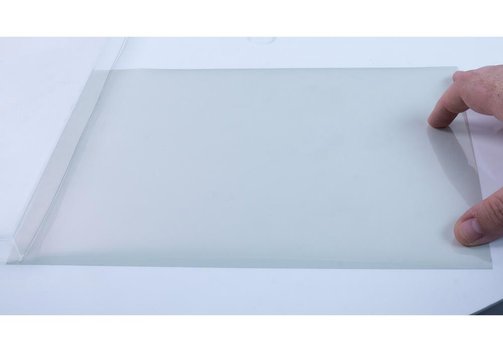

602/011Aaronia Shield TF 182 (32 dB)Transparent shielding foil1 m² (1.83 m x 0.55 m).Attenuation factor 32 dB.
Optical transparency ≥75 VLT.
Shielding effectiveness (SE) ≥32 dB (frequency range 10 MHz...26 GHz).
Standards/Compliance: ASTM D4935 and IEEE Std 299 (previously MIL STD 285).
Patented technology.

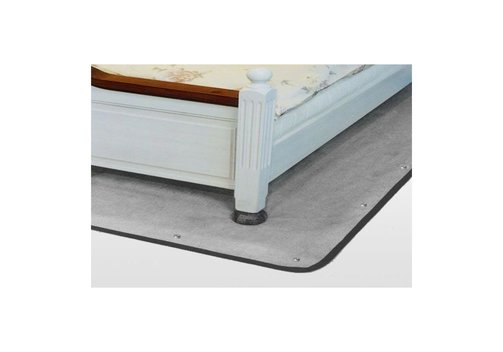

604/003Shielding mat XXL100 dB shielding mat/grounding mat with grounding350 cm x 250 cm.For shielding of the ground area; incl. professional grounding SET.
