Benefits of the ES215x Series I/O Blocks Stackable, Industrial Analog-Input/Analog-I/O Modules

Rugged, industrial 16-channel DC current input/output modules for Ethernet/LAN.
Stackabel and DIN-rail mountable.
Models with fibre ports.

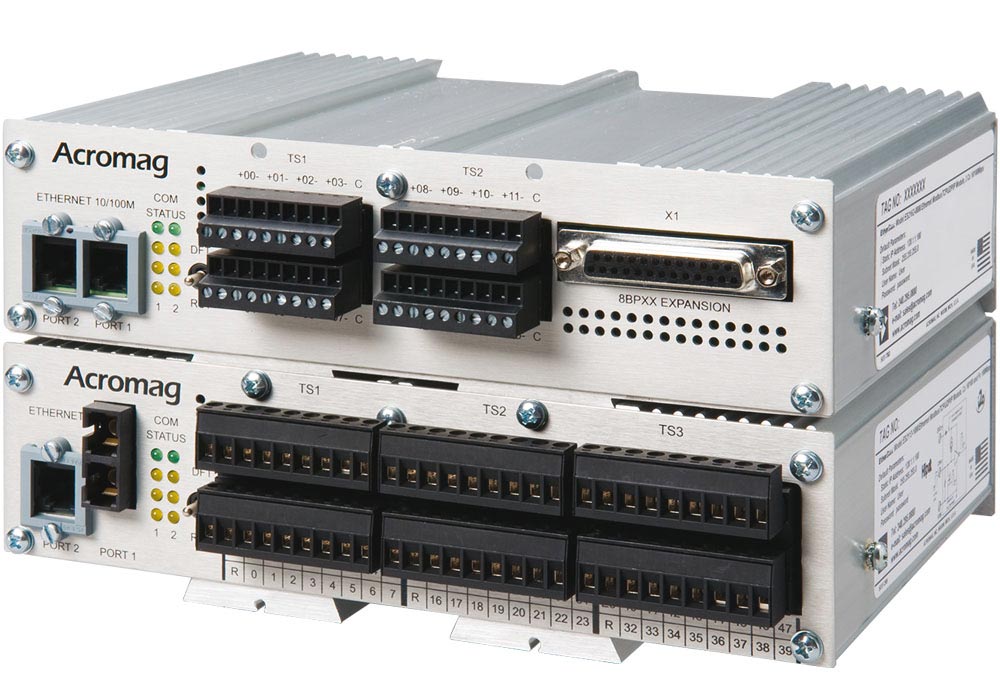

Acromag ES2151, ES2152, ES2153 EtherStax Ethernet/LAN Analog-I/O Modules

EtherStax I/O blocks are rugged, fast and multi-channel solutions for data acquisition with Ethernet 10/100Base-T(X), MODbus TCP/IP or UDP/IP. The ES215x series models are available with analog-inputs for DC current or voltage in the range of ±10 V or ±20 mA/0...20 mA. The modules are directly stackable - no additional backplanes or rails are required.

Depending on model 16 DC current inputs 16 DC voltage inputs, 16 DC current outputs, 16 DC voltage outputs.
Ranges ±5 V, ±10 V and/or ±20 mA, 0...20 mA, 4...20 mA.
Rugged, compact, decentral I/O modules for ethernet/copper and fiber optics.
Supply power 18...36 VDC.
1 or 2 RJ45 ports ethernet 10/100Base-T(X), 100Base-FX, MODbus TCP/IP or UDP/IP protocol.
Models with 1 fiber optics port (100Base-FX, SC connerctor, multimode, up to 2 km).
Acromag i2o peer-to-peer technology: Direct input-to-output messaging from module to module via ethernet as transmitters - without a PLC, PC or master CPU.
Reliable screw terminals.
Analog voltage models: D-sub connectors for expansion with 8B signal-conditioning.
On-demand self-test verifies calibration.

Model Overview

Model	I/O channels	i2o
ES2151	16 DC current inputs (±20 mA, 0...20 mA, 4...20 mA), 16 DC voltage inputs (±5 V, ±10 V), 16 DC current outputs (0...20 mA, 4...20 mA). 16 bit resolution.	yes
ES2152	16 DC current inputs (±20 mA, 0...20 mA, 4...20 mA), 16 DC voltage inputs (±5 V, ±10 V), 16 DC voltage outputs (±5 V, ±10 V). 16 bit resolution.	yes
ES2153	16 DC current inputs (±20 mA, 0...20 mA, 4...20 mA), 16 DC voltage inputs (±5 V, ±10 V). 16 bit resolution.	yes
Available versions
Option		Description
-0000	IP20 enclosure, 2 RJ45 ethernet ports (standard)
-0010	OEM open circuit board, 2 RJ45 ethernet ports (on request)
-1000	IP20 enclosure, 1 RJ45 ethernet port, 1 fiber port
-1010	OEM open circuit board, 1 RJ45 ethernet port, 1 fiber port (on request)

Included: Module, instructions for use.

Model Overview - Other Module Series

Series	Functions
▸ES211x	EtherStax Ethernet/LAN remote-I/O modules with digital-I/O channels, for switching, control, acquisition of digital status
▸ES215x	EtherStax Ethernet/LAN remote-I/O modules with analogen DC current or voltage inputs
▸ES216x	EtherStax Ethernet/LAN remote-I/O modules with isolated single-ended or differential analog DC current or voltage inputs
▸ES217x	EtherStax Ethernet/LAN remote-I/O modules with DC current or voltage outputs
