Micsig ATO1000 Series Automotive Tablet Oscilloscope

starting 690,20
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
technical Question?
recommend by email
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.

Benefits of the Micsig ATO1000 Series Tablet Automotive Oscilloscops

  • Compact, portable automotive tablet oscilloscope.
  • Various automatic automotive diagnostic functions.
  • Software app for oscilloscope remote control.

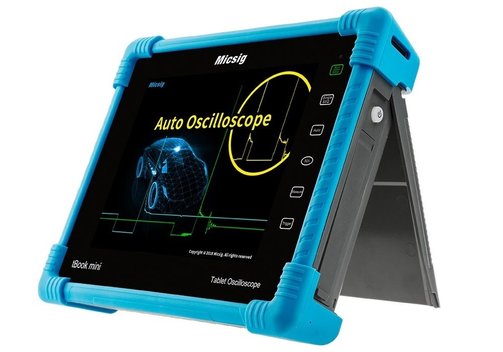

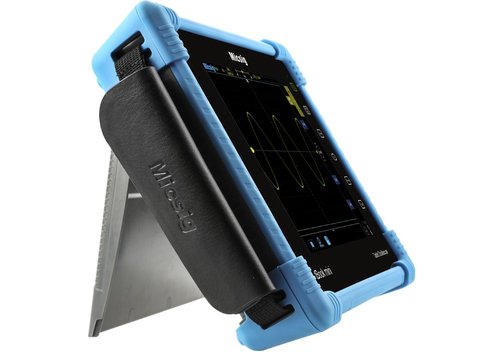

Micsig ATO1000 Series Automotive Tablet Oscilloscope

Modelle ATO1102, ATO1104

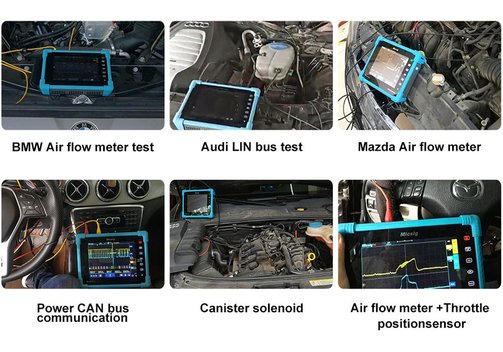

The Micsig ATO1000 series are portable automotive tablet oscilloscopes. They offer various automatic automotive diagnostic functions, such as test of ignition, sensors, actuators, networks, pressure and combination tests. USB, Ethernet/LAN and Wifi are supported. A software app helps to remote control the oscilloscope easily.

  • Tablet oscilloscope for automotive applications.
  • 2 or 4 channels.
  • 100 MHz bandwidth.
  • 1 GS/s real time sample rate.
  • 28 Mpts memory depth.
  • 8"/20.3 cm full touch screen.
  • Built-in Lithium battery.

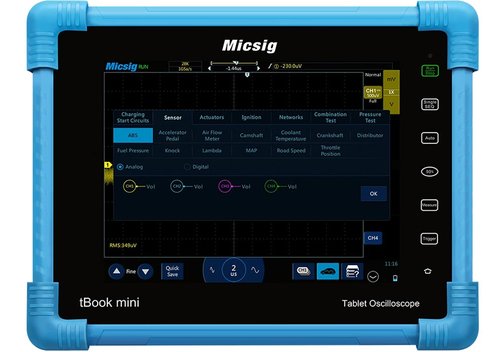

  • Integrated automotive diagnostics software.
  • Interfaces: Ethernet/LAN, WiFi, USB 2.0 Host & Device; HDMI.
  • Software app for oscilloscope remote control.
  • Built-in 8G storage for big waveform data.

Model Overview

Bandwidth100 MHz100 MHz
Real time sampling rate1 GS/s (single channel)
Memory depth28 Mpts (single channel)
Resolution8 bit
Supported testsCharging circuit, starter circuit, sensor, actuator, ignition test, communication test (incl. CAN, LIN, FlexRay, K, etc.), pressure test (cylinder pressure, intake and exhaust pressure, fuel pressure, etc.)
Display8"/20.3 cm LCD, 800x600 resolution multi-point capacitive touch screen; HDMI port
InterfacesUSB 2.0 Host & Device, Ethernet/LAN, Wifi
Power supplyPower adaptor; Lithium Ion battery 7.4 V/7500 mAh
Dimensions (mm)250 x 200 x 55

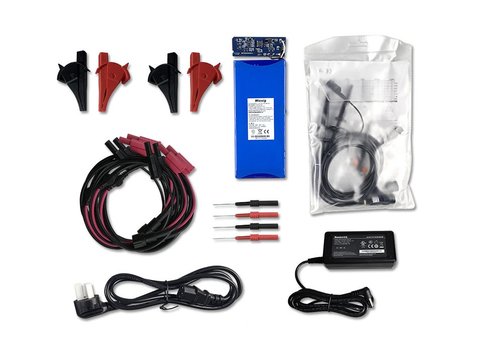

Included: Micsig ATO 1102 or 1104, power adaptor and cable, BNC caps, 2x passive probe, built-in battery, carry strap belt, protective film, 2/4 alligator clips, 2/4 BNC-to-banana, 2/4 flexible pencil. Incl. ser. decoding.
