Benefits of the B+K Precision BK4033 and BK4034 1 or 2 Channel Pulse Generators

  • 1 and 2 channel pulse generator models.
  • High accuracy of timing characteristics.
  • 99 settings and power down state.

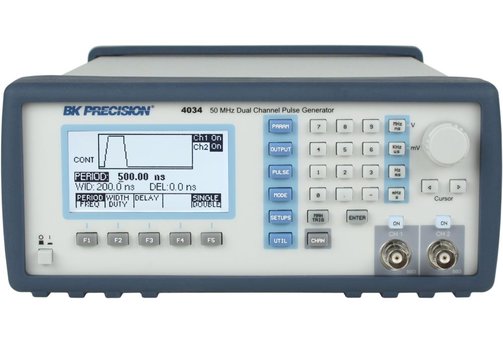

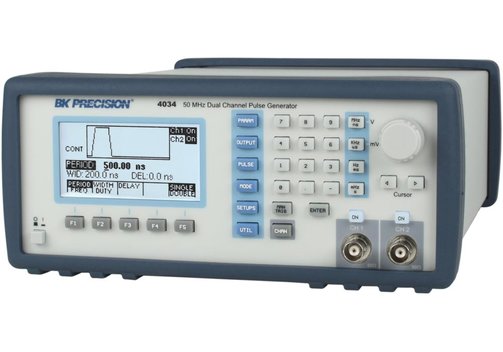

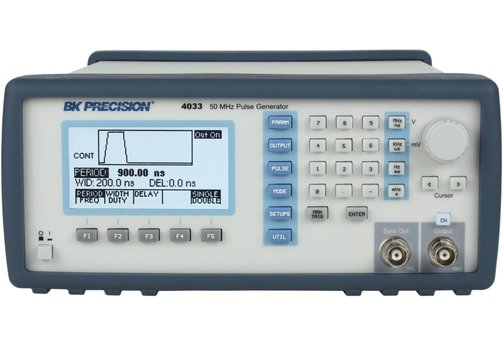

B+K Precision BK4033/BK4034 50 MHz Programmable Pulse Generators

The B+K Precision BK4033 and BK4034 are 1- and 2-channel high performance programmable pulse generators for testing digital systems and circuits based on TTL, CMOS, or ECL technologies. The devices generate clean and accurate pulses at up to 6 digits resolution with a repetition rate up to 50 MHz, variable pulse widths from 10 ns to 10 s, and pulse delays from 0 ns to 10 s. The pulse generators also provide selectable complementary pulse and double pulse generation in continuous, triggered, gated, and counted burst modes.

  • High-performance programmable pulse generators with 1 or 2 channels; 10 Vpp into 50 Ω output.
  • 2-channel model BK4034: Both channels with full functionality and all parameters such as pulse width and transition time can be set independently. Synchronize both channels with the push of a button.
  • Repetition rate 0.1 Hz...50 MHz.
  • Flexible trigger modes: Continuous, triggered (internal, external, manual), gated burst, and external width.
  • Pulse width programmable 10 ns...10 s.
  • Transition times (rise and fall times) variable 6 ns...100 ms.
  • Programmable delay and double pulse.
  • Predefined amplitude levels for ECL, TTL, and CMOS signals.
  • Storage for up to 99 different test setups with auto retention of last power down setup.
  • Closed case calibration.
  • Programmable via GPIB and RS232; SCPI compatible.
  • Applications: Automatic test equipment (ATE), avionics and radar testing, switching power supply testing, characterization of active components, etc.

Model Overview

ModelBK4033BK4034
Channels12
Frequency0.1 Hz...50 MHz
Timing characteristicsPeriod range (single pulse) 20 ns...10 s (50 MHz...0.1 Hz repetition rate), range (double pulse) 40 ns...10 s (25 MHz...0.1 Hz repetition rate), resolution up to 6 digits, limited to 100 ps.
Width range 10 ns...(period – 10 ns), resolution up to 6 digits, limited to 100 ps, double pulse ±(0.5% of setting + 3 ns) for the second pulse.
Delay range 0 ns...(period – width – 10 ns), resolution up to 6 digits, limited to 100 ps.
Duty cycle range 1...99%, resolution 3 digits (0.1%)
Output levelsAdjustable -10...+10 V, pulse amplitudes settable from 0.1 Vpp to 10 Vpp into a 50 Ω load
Operating modesContinuous, triggered, gated, burst, external width; pulse functions single or double
TriggerInternal trigger (100 ns...100 s) and external trigger input (min. width 10 ns, max. rate 50 MHz)
InterfacesRS232, GPIB/IEEE48; IEEE-488.2 and SCPI compatible
Dimensions (mm)213 x 300 x 88; 3 kg

Included: BK 4033 or 4034, AC power cord, CD containing instruction manual, RS232 cable, test report and certificate of calibration.
