BlackCube Web/WLAN Data Loggers for the Internet of Things

BlackCube WLAN temperature/humidity datalogger for the Internet of Things
additional images:
Price
starting 235,00*
starting € 279,65 brutto
* excluding VAT plus shipping
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Description

Benefits

  • Web thermometer/hygrometer for room monitoring in the "Internet of Things".
  • Easy data access via Cloud.
  • Connectivity via Ethernet and WLAN, control via convenient web interface.

Web and WLAN Thermometer/Hygrometer or PT100/PT1000 Temperature Datalogger - the "Internet of Things" for your Climate/Temperature Measurements!

The BlackCube monitors temperature and humidity with integrated sensors or temperatur with an external PT100/PT1000 sensor (not included). Reliable and exact. With worldwide data access over cloud services. The BlackCube is easily integrated into an existing network. Power supply is done via Micro-USB, either over power plug adapter or over a free USB port. With the convenient web interface, the BlackCube is configured in a few steps and quickly put into operation.

  • Reliable monitoring of temperature and humidity or temperatur with external PT100/PT1000 (not included).
  • Integrated high-quality sensors - oil-repellent, water- and dustproof.
  • Alerts via e-mail, SNMP-Trap and syslog.
  • StartTLS - supports Gmail, GMX and more.
  • Uncomplicated configuration over web interface.
  • Clear graphical depiction of temperature and humidity graduation.
  • Programming interfaces over cloud.
  • Data access over Android app.
  • Power supply over Micro-USB.
  • Battery powered real-time clock.
  • Compact dimensions.

Possible Applications

  • Server room monitoring - click » here to see an example.
  • Property management.
  • Climate profiles for rooms and buildings.
  • Preventive conservation of cultural goods.
  • Cause-determination for mold-remediation.

Model Oberview

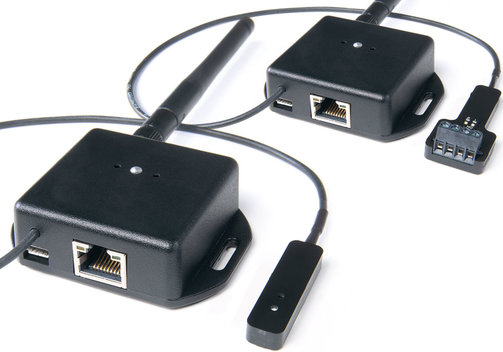

Model BlackCube WLAN TH (querx WLAN TH) BlackCube WLAN PT100 (querx WLAN PT100) BlackCube WLAN PT1000 (querx WLAN PT1000)
Measurement "Climate": Temperature, relative humidity Temperature PT100 Temperature PT1000

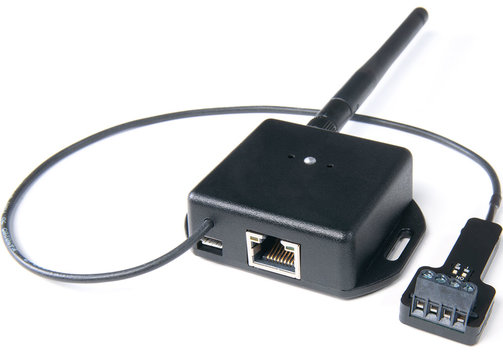

Sensor connectivity - (fixed/integrated sensors) Pt100 connector, 2-, 3- and 4-wire Pt1000 connector, 2-, 3- and 4-wire
Measurement range -40...+85°C | 0...95% r. h. Depending on sensor -200...750°C Depending on sensor -200...750°C
Accuracy Depending on range ±0.4 or ±1.0°C | ±2 or ±4.0% r. h. Depending on sensor ±0.5°C (0.9°F) Depending on sensor ±0.5°C (0.9°F)
Sampling/logging interval 1 s 1 s 1 s
Resolution 0.1°C | 1% r. h. 0.1°C 0.1°C
Datatransmission Ethernet and WLAN
Ethernet connectivity: 10/100 Mbit RJ45, HP Auto-MDIX, static or dynamic IP (DHCP client), system Nut/OS 5;
WLAN connectivity: 2.4 GHz IEEE 802.11 b/g/n; WLAN security WEP, WPA, WPA2
Ethernet and WLAN
Ethernet connectivity: 10/100 Mbit RJ45, HP Auto-MDIX, static or dynamic IP (DHCP client), system Nut/OS 5;
WLAN connectivity: 2.4 GHz IEEE 802.11 b/g/n; WLAN security WEP, WPA, WPA2
Ethernet and WLAN
Ethernet connectivity: 10/100 Mbit RJ45, HP Auto-MDIX, static or dynamic IP (DHCP client), system Nut/OS 5;
WLAN connectivity: 2.4 GHz IEEE 802.11 b/g/n; WLAN security WEP, WPA, WPA2
Data storage 73,728 records, 51 days (1/min) to 8.4 years (1/h) 73,728 records, 51 days (1/min) to 8.4 years (1/h) 73,728 records, 51 days (1/min) to 8.4 years (1/h)
Web /IoT functions M2M: HTTP/S (XML, CSV, JSON), Syslog, Modbus/TCP, SNMP. Web interface: Interactive chart, Live Update, HTML5, CSS3, XML and CSV. Security: Start/TLS, HTTPS, password protection, user management (3 users/3 groups). E-Mail: Up to 4 recipients and 2 SMTP servers. SNMP: SNMPv1 agent and traps. Realtime clock with battery backup, SNTP update M2M: HTTP/S (XML, CSV, JSON), Syslog, Modbus/TCP, SNMP. Web interface: Interactive chart, Live Update, HTML5, CSS3, XML and CSV. Security: Start/TLS, HTTPS, password protection, user management (3 users/3 groups). E-Mail: Up to 4 recipients and 2 SMTP servers. SNMP: SNMPv1 agent and traps. Realtime clock with battery backup, SNTP update M2M: HTTP/S (XML, CSV, JSON), Syslog, Modbus/TCP, SNMP. Web interface: Interactive chart, Live Update, HTML5, CSS3, XML and CSV. Security: Start/TLS, HTTPS, password protection, user management (3 users/3 groups). E-Mail: Up to 4 recipients and 2 SMTP servers. SNMP: SNMPv1 agent and traps. Realtime clock with battery backup, SNTP update
Power supply 5...5.5 VDC over Micro-USB 5...5.5 VDC over Micro-USB 5...5.5 VDC over Micro-USB
Cube housing ABS thermoplastic, black, wallmount, 66.3 x 50 x 20, approx. 63 g, 340 mm sensor cablel lenght ABS thermoplastic, black, wallmount, 66.3 x 50 x 20, approx. 63 g, 340 mm sensor cablel lenght ABS thermoplastic, black, wallmount, 66.3 x 50 x 20, approx. 63 g, 340 mm sensor cablel lenght
Connectors RJ45 (Ethernet), Micro-USB (power) RJ45 (Ethernet), Micro-USB (power) RJ45 (Ethernet), Micro-USB (power)
Environmental Operation -40...85°C, max. 95% r. h.; storage -40...85°C, max. 95% r. h. Operation -40...85°C, max. 95% r. h.; storage -40...85°C, max. 95% r. h. Operation -40...85°C, max. 95% r. h.; storage -40...85°C, max. 95% r. h.

Included:

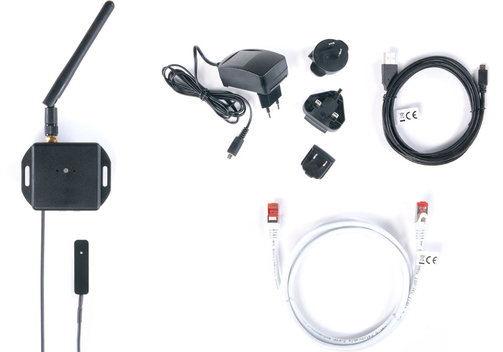

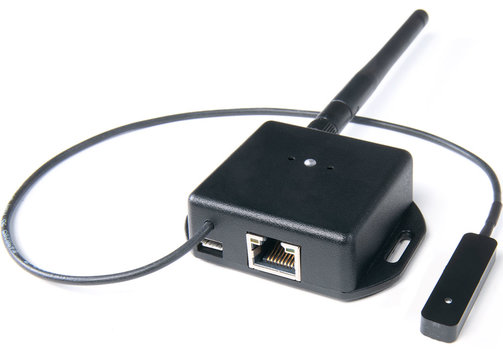

BlackCube (querx) WLAN TH with integrated sensor or

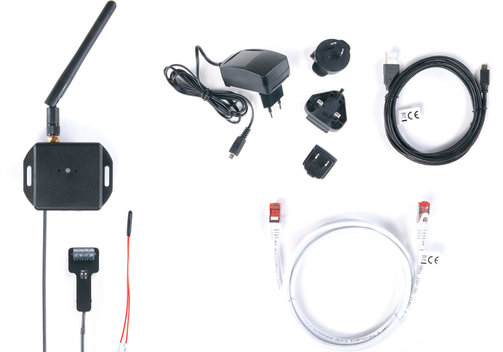

BlackCube (querx) WLAN PT100 with simple Pt100 probe without sensor sleeve or
BlackCube (querx) WLAN PT1000 with simple Pt1000 probe without sensor sleeve.

Sets: With additional Ethernet cable, Micro-USB cable, USB power adapter (GB, EU, US or AU), documentation on CD.

Temperature Display:

Humidity Display:
