Brainboxes PX Series LPT and Serial Interface Boards for PCI-Express

Scaled Prices
taking 1 pc.
starting
€ 77,35
taking 5 pc.
starting
€ 75,42
taking 10 pc.
starting
€ 74,26
starting 142,80
including VAT plus shipping
min Quantity
1 piece
Unit price
base price
Variants
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Files/Downloads

Benefits of the PX Series Interfaces from PCI-Express to RS232, RS422, RS485, LPT

  • Depending on model PCI-Express to LPT, RS232, RS422, RS485.
  • Versions with supply power for connected serial/POS devices.
  • Versions with galvanic/optical isolation.

Brainboxes PX Series LPT and Serial Interface Boards for PCI-Express

The Brainboxes PX series are PC interface boards/cards for the PCI-Express bus (x1, x4, x8 x16 lane). Depending on the version, they have one LPT port and/or 1 or 2 serial ports, type RS232 or RS422/485. Models with isolated serial ports are available. All models use standard connectors, i. e. 9-pin D-sub male for serial, 25-pin D-sub female for LPT. Special versions are available for POS applications. They provide up to 1 A power to attached peripherals. The extra power necessary is supplied to the card directly from the PC power supply unit through a Serial ATA SATA or IDE or ATA PATA power connector.

  • Models with parallel LPT port.
  • Models with 1 or 2 serial RS232 or RS422/RS485 ports.
  • Models with opto-isolated serial ports.
  • Models with supply power for connected POS or other equipment.
  • Support for various Windows operating system versions.

Model Overview

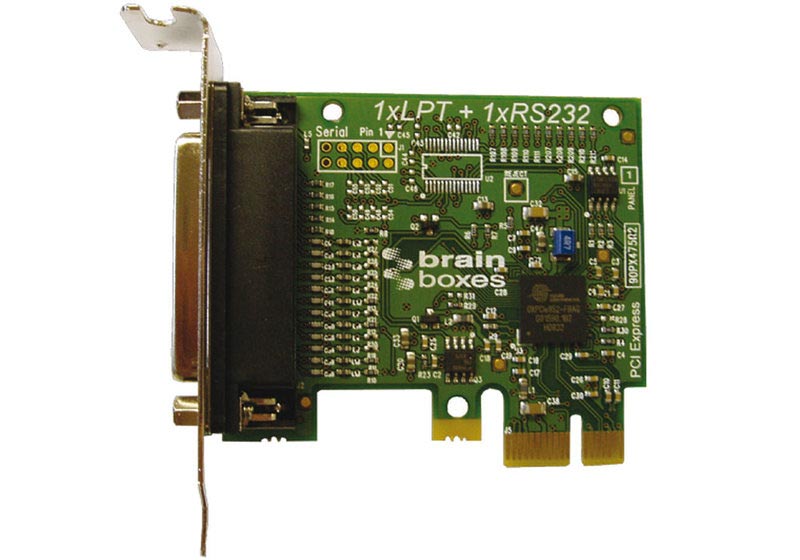

Models PX-146, PX-157, PX-475 for LPT and RS232

ModelBusOpto-isolationSerial interfaceParallel interfaceProfile
PortsTypeRateConnectorsPortsTypeConnectors

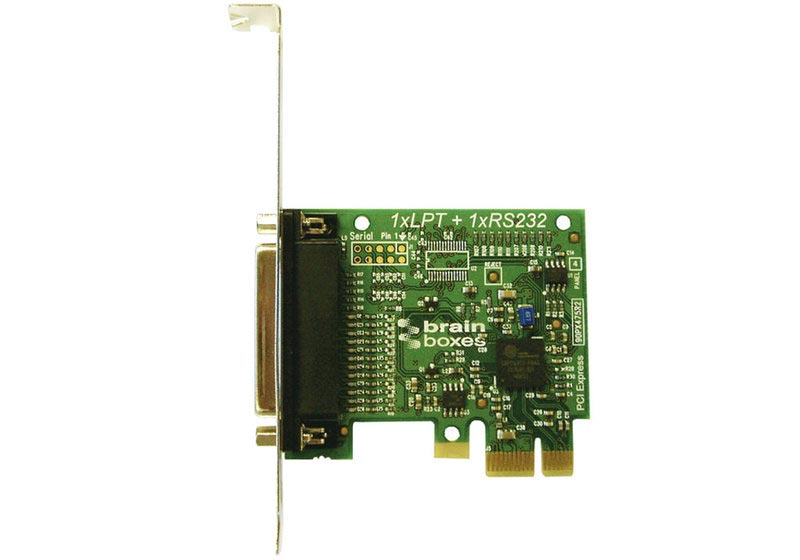

PX-146PCIe x1, x4, x8, x16-----1LPT25-pin D-Sub female-
PX-157Low profile
PX-475PCIe x1, x4, x8, x16-1RS2321 Mbd9-pin D-sub male1LPT25-pin D-Sub female-

Models PX-235, PX-246, PX-101, PX-257, PX-803, PX-846, PX-812, PX-823, PX-801, PX-805, PX-809 for RS232

ModelBusOpto-isolationSerial interfaceParallel interfaceProfile
PortsTypeRateConnectorsPortsTypeConnectors

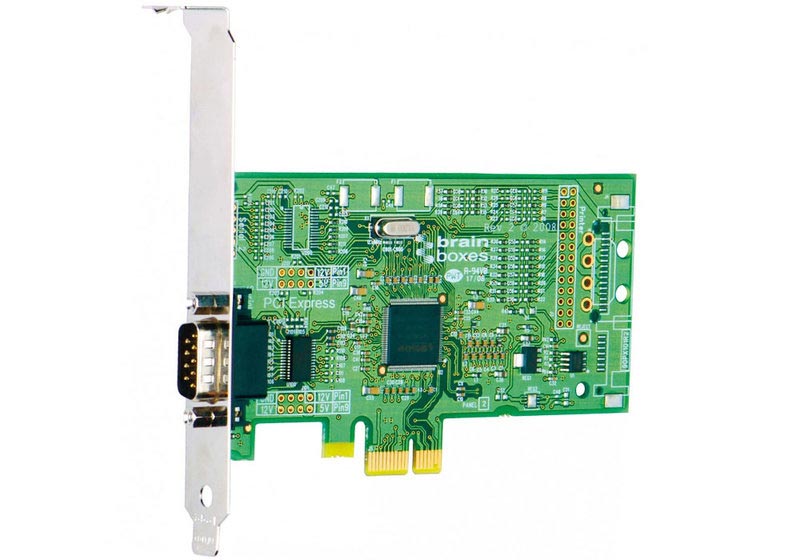

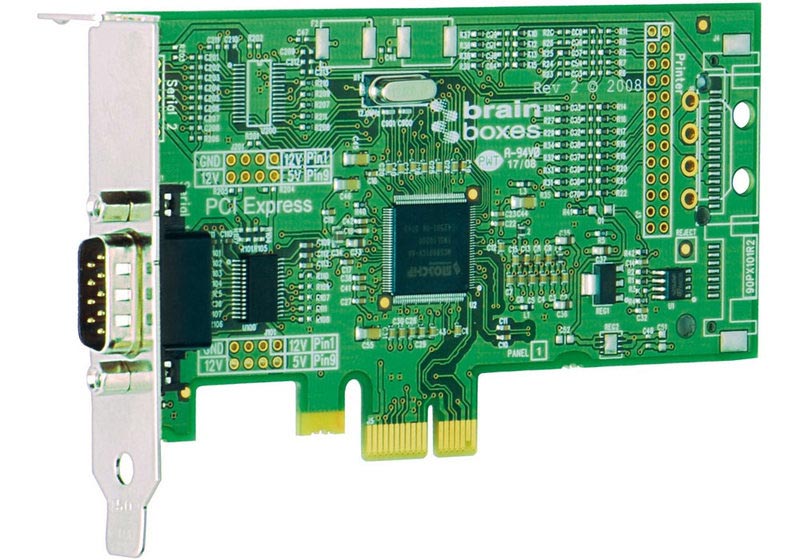

PX-235PCIe x1, x4, x8, x16-1RS2321 MBd9-pin D-sub male---Low profile
PX-246-

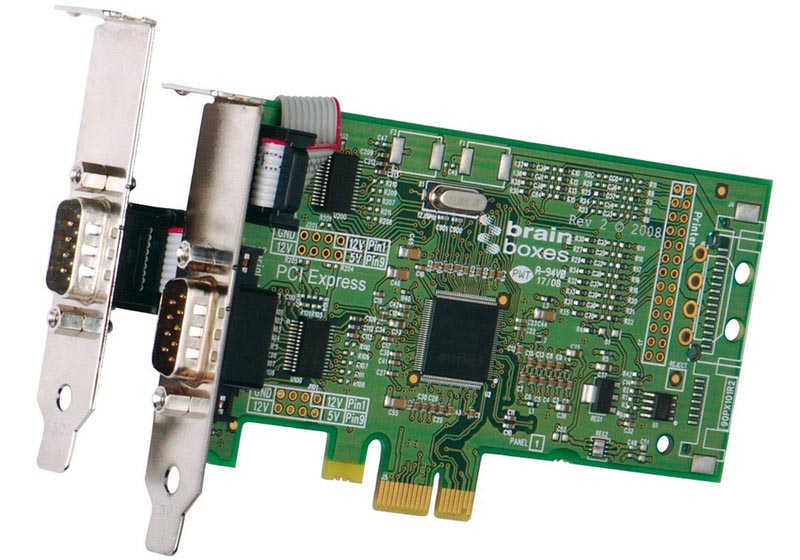

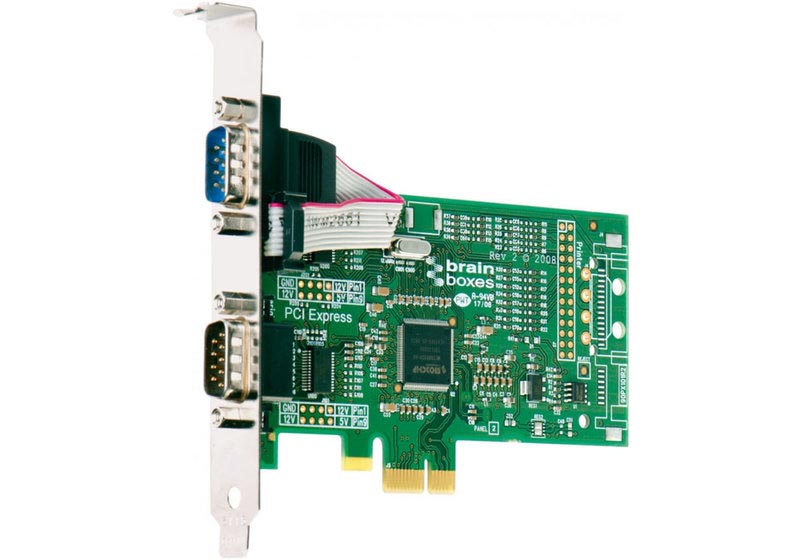

PX-101PCIe x1, x4, x8, x16-2RS2321 MBd9-pin D-sub male---Low profile, 2 slot brackets
PX-257-, 1 slot bracket

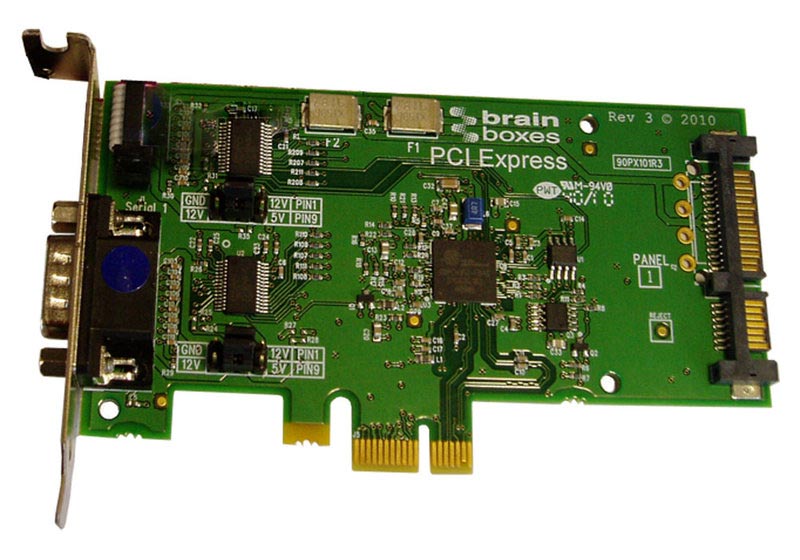

PX-803PCIe x1, x4, x8, x16-1RS232, POS 1 A SATA*1 Mbd9-pin D-sub male---Low profile

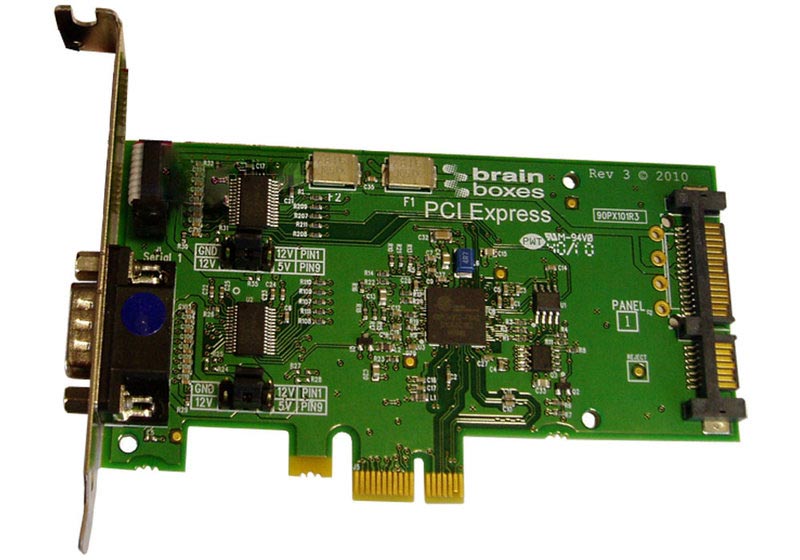

PX-846-
PX-812PCIe x1, x4, x8, x16-1RS232, POS 1 A IDE*1 Mbd9-pin D-sub male---Low profile

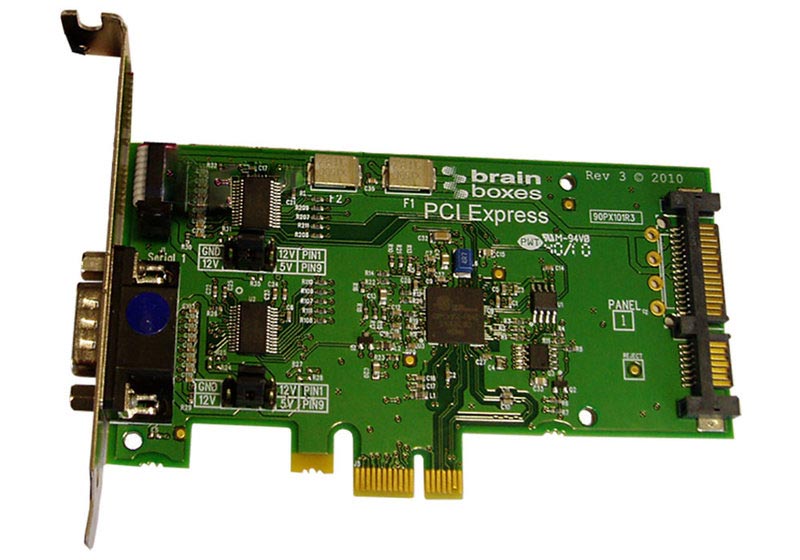

PX-823-

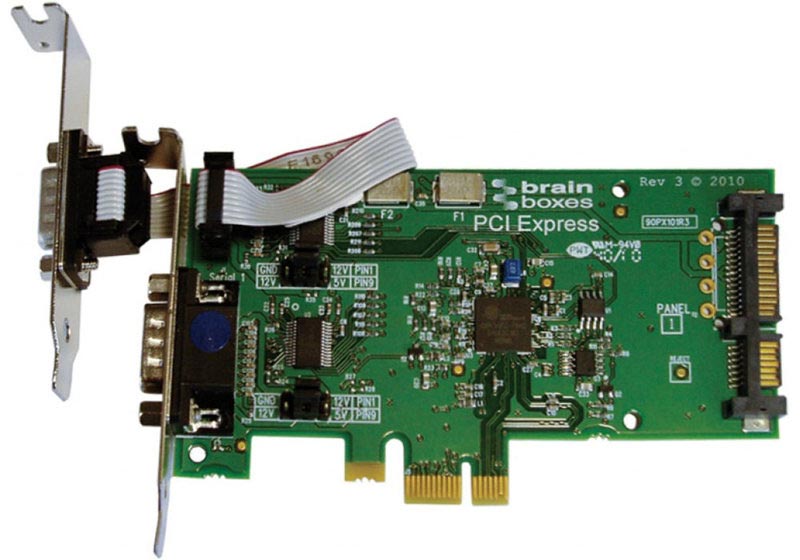

PX-801PCIe x1, x4, x8, x16-2RS232, POS 1 A SATA*1 MBd9-pin D-sub male---Low profile, 2 slot brackets

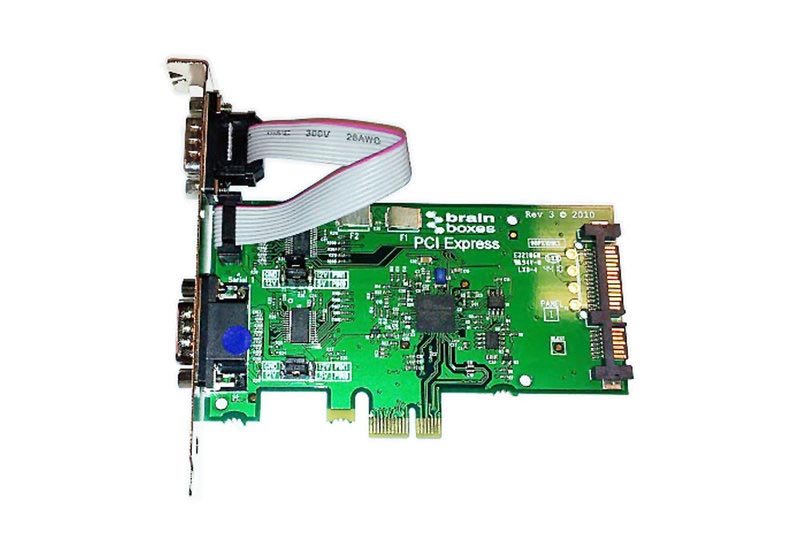

PX-805-, 1 slot bracket
PX-809PCIe x1, x4, x8, x16-2RS232, POS 1 A IDE*1 Mbd9-pin D-sub male---Low profile, 2 slot brackets

Models PX-320, PX-324, PX-376, PX-387, PX-303, PX-313, PX-310 for RS422/485

ModelBusOpto-isolationSerial interfaceParallel interfaceProfile
PortsTypeRateConnectorsPortsTypeConnectors

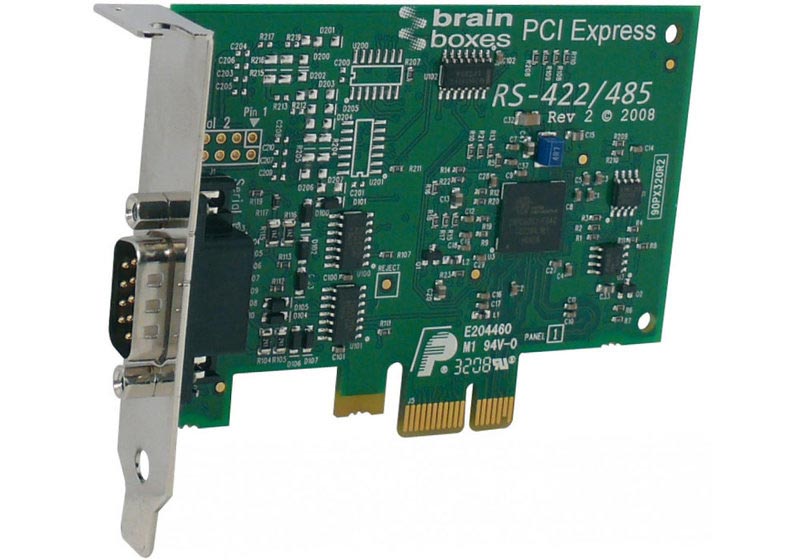

PX-320PCIe x1, x4, x8, x16-1RS422/4851 MBd9-pin D-sub male---Low profile

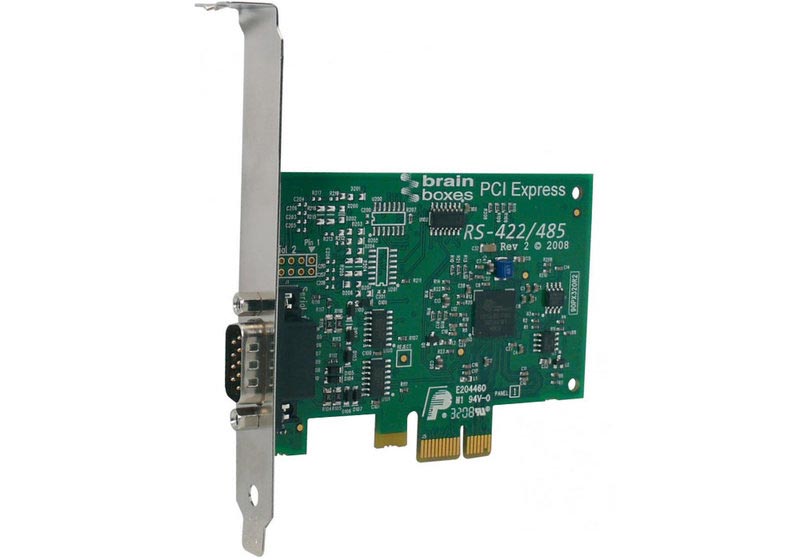

PX-324-
PX-376PCIe x1, x4, x8, x16yes1RS422/4851 MBd9-pin D-sub male---Low profile
PX-387-

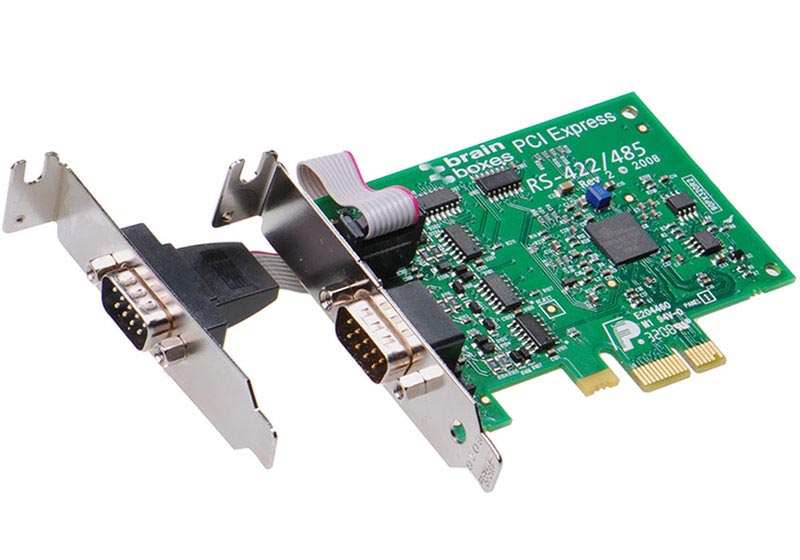

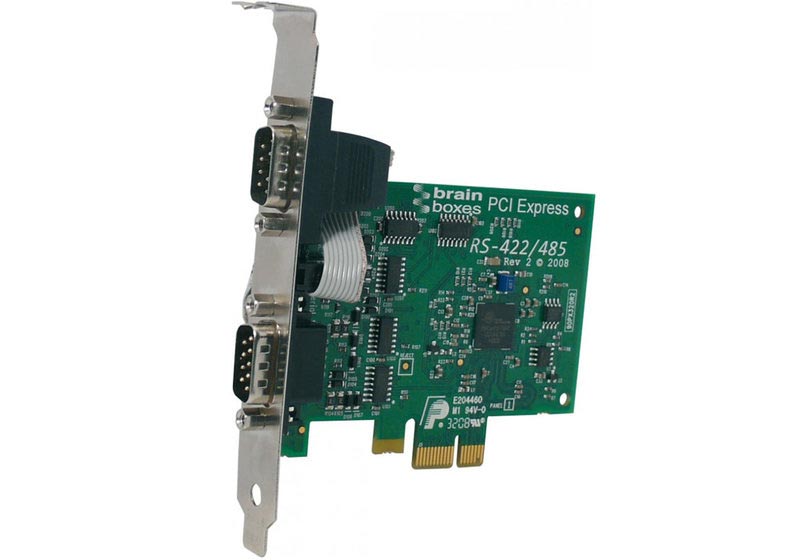

PX-303PCIe x1, x4, x8, x16-2RS422/4851 MBd9-pin D-sub male---Low profile, 2 slot brackets
PX-313-, 1 slot bracket

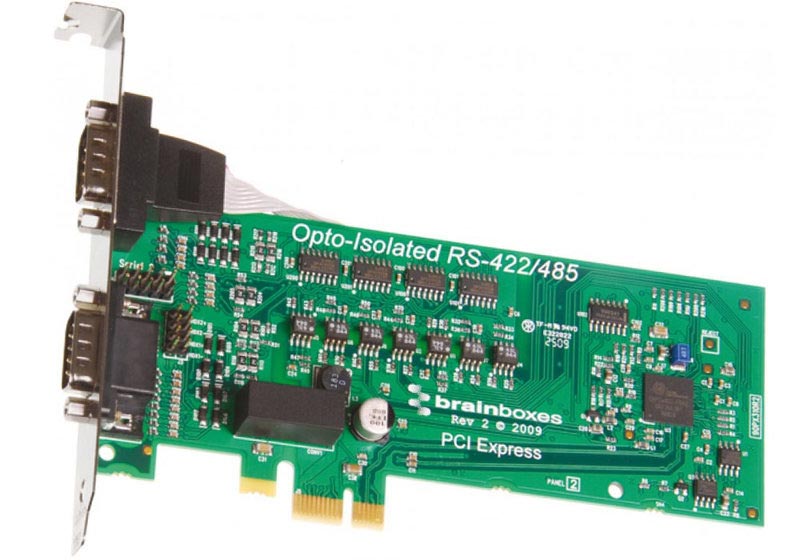

PX-310PCIe x1, x4, x8, x16yes2RS422/4851 MBd9-pin D-sub male----, 1 slot bracket

* Up to 1 A selectable power provided through pins 1 and 9 to attached peripherals. The extra power necessary is supplied to the card directly from the PC power supply unit through a Serial ATA SATA or IDE or ATA PATA power connector.

Included: PC board, installation CD including manual, Microsoft signed drivers and utilities. 2-port low profile models: Ribbon cable/slot bracket/connector for 2nd port.

Supported operating systems: Microsoft Windows 10,
Microsoft Windows 8 (32 bit and 64 bit editions)
Microsoft Windows 7 (32 bit and 64 bit editions)
Windows Server 2008 (32 bit and 64 bit editions)
Windows Vista (32 bit and 64 bit editions)
Windows XP (32 bit and 64 bit editions)
Microsoft Windows 2000
