Description
Accessories
Files/Downloads

Benefits

  • Portable with only 2.5 kg - ideal for field service operations.
  • Automatic test mode automatically sets the optimized test conditions according to test requirements.
  • 4-path optical interface for simultaneous optical power meter, VFL, single-mode and multi-mode tests.

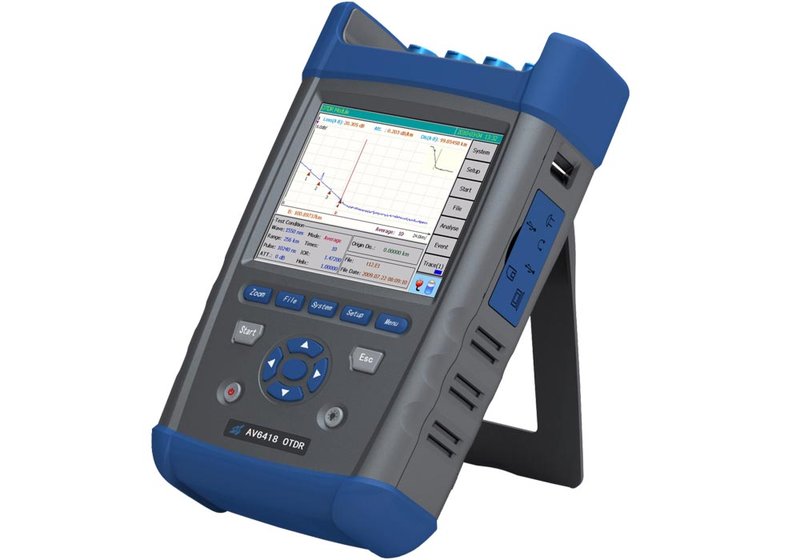

Ceyear-6418C Handheld Mini OTDR

The Ceyear-6418C is an extremely compact and lightweight handheld device for optical time domain reflectometry (OTDR). It is used to determine and analyze reflections and characterisitcs of light signals in fiber optic transmissions. The Ceyear-6418C provides a 4-path optical interface for simultaneous optical power meter, VFL, single-mode and multi-mode testing. The instrument has three operating modes: "Manual", "automatic" and "dead zone". In "automatic" mode, the Ceyear-6418C automatically sets the optimized test conditions according to the test requirements.

  • High-performance OTDR, offers three test modes: "Manual" (real-time, erage), "automatic" and "dead zone".
  • ≤0.8 m ultra-short event dead zone, especially suitable to test short optical fiber lines and optical fiber jumpers.
  • Up to 45 dB large dynamic range, 256 k data sample points.
  • Ideal test instrument for FTTx, with special built-in PON (passive optical network) network test function. It can conduct high-precision test on all branches of PON network through 1:8...1:64 optical driver.
  • Built-in VFL (visual fault locator) function with 3 operating modes: CW/1 Hz/0.5 Hz.
  • VFL can rapidly and conveniently find the breaking point or remarkable loss point along short-distance optical fiber lines.
  • 4 paths of optical interface which can simultaneously realize the functions of an optical power meter, VFL, single-mode and multi-mode tests.
  • Pulse width from 5 ns to 20480 ns for single-mode and 5 ns to 1280 ns with 850 nm multimmode option.
  • Distance accuracy of ±(0.75 m + sampling spacing + 0.0025% x distance)*.
  • Low linearity deviation typ. 0.03 dB/dB.
  • Optical connector options such as LC/UPC, SC/UPC, ST/UPC selectable along with the standard built in FC/UPC.
  • Large capacity Lithium-Ion battery (14.8 V, 4400 mAh) for operation over 8 hours.
  • Automatic detection of the communication light signal in the fiber under test, once the fiber is connected to the optical connector. If the device notices any light signal, the alarm rings up, in order to provide protection for the instrument in time.
  • Wide 6.5"/15.5 cm TFT color LCD touch screen.
  • USB, Mini-USB, Ethernet/LAN, Earphone and SD Interface.
  • Software SyncActive for OTDR; can be updated on-line. OTDR supports Bellcore GR196 and SR-4731 file format.

* excluding refractive error.

Model Overview

ModelCeyear-6418C
Dynamic rangeSee table below
Distance accuracy±(0.75 m + sampling spacing + 0.0025% x distance) (excluding refractive error)
Distance resolution0.05, 0.1, 0.2, 0.5, 1, 2, 4, 8, 16, 32 m
Distance range0.4, 0.8, 1.6, 3.2, 6.4, 16, 32, 64, 128, 256, 512 km (single-mode); 0.4, 0.8, 1.6, 3.2, 6.4, 16, 32 (850 nm multi-mode)
Pulse width5, 10, 30, 80, 160, 320, 640, 1280, 5120, 10240, 20480 ns; 5, 10, 30, 80, 160, 320, 640, 1280 (850 nm multi-mode)
Loss threshold0.01 dB
Sampling points256 k
Linearity0.03 dB/dB
Loss resolution0.001 dB
Storage capacity≥800 (within the instrument), ≥65500 (2 G SD card)
Refractive index setting range1.00000...2.00000 (step: 0.00001)
Distance unitkm, m, K ft, ft
Display640 x 480, 6.5"/15.5 cm TFT color LCD (touch screen)
Optical output connectorFC/UPC (standard; options: LC/UPC, SC/UPC, ST/UPC)
External interfacesUSB, Min-USB, Ethernet, earphone, SD
Power supplyAC/DC adaptor: 100...240 VAC, 50/60 Hz, 1.5 A; DC: 19 V ±2 V (2 A); built-in lithium battery: 14.8 V, 4400 mAh, battery service time: 8 h (room temperature, low brightness)
Maximum power consumption10 W
Dimensions (mm)186 x 295 x 75; approx. 2.5 kg
EnvironmentalOperating temperature -5...+50°C (battery charging: +5...+40°C), storage temperature -40...+70°C (battery: -20...+60°C); relative humidity: 5...95%, non-condensing



Model Overview - OTDR Standard Modules (select one and only one)

Module No.Operating wavelengthFiber typeDynamic rangeEvent deadzoneAttenuation deadzone
6418C-11031625 nmSingle-mode38 dB0.8 m10 m
6418C-11041625 nm (built-in filter)36 dB
6418C-11051650 nm38 dB
6418C-11061650 nm (built-in filter)36 dB
6418C-1201850 nmMulti-mode24 dB1.6 m10 m
6418C-12021300 nm36 dB1.6 m10 m
6418C-21011310/1550 nmSingle-mode42/40 dB0.8 m10 m
6418C-21021310/1550 nm40/38 dB
6418C-21031310/1550 nm37/35 dB
6418C-21041550/1625 nm38/38 dB
6418C-21051550/1625 nm (built-in filter)36/36 dB
6418C-21061550/1650 nm38/38 dB
6418C-21071550/1650 nm (built-in filter)36/36 dB
6418C-21081310/1550 nm45/43 dB
6418C-21091310/1550 nm32/30 dB
6418C-2201850 mm/1300 mmMulti-mode24/34 dB1.6 m10 m
6418C-31011310/1490/1550 nmSingle-mode39/36/38 dB0.8 m10 m
6418C-31021310/1550/1625 nm39/38/36 dB
6418C-31031310/1550/1625 nm (built-in filter)37/36/34 dB
6418C-31041310/1550/1650 nm39/38/36 dB
6418C-31051310/1550/1650 nm (built-in filter)37/36/34 dB
6418C-41011310/1490/1550/1625 nm36/34/34/34 dB
6418C-41021310/1383/1550/1625 nm36/34/34/34 dB
6418C-41031310/1490/1550/1625 nm (built-in filter)36/34/34/34 dB
6418C-41041310/1490/1550/1650 nm38/36/36/36 dB
6418C-41051310/1490/1550/1650 nm (built-in filter)36/34/34/34 dB



Ordering code:Ceyear-6418C-xxxx-yy-z/z/z
xxxx11: Single wavelength for SMF
12: Single wavelength for MMF
21: Dual wavelength for SMF
22: Dual wavelength for MMF
31: Tripel wavelength for SMF
41Quadruple wavelength for SMF
+ sequence number of OTDR module, see table above
yyOptical connectorFA: FC/APC
FU: FC/UPC
z/z/zOptions/V: VFL; operating wavelength 650 nm ±20 nm, output power typ. 2 mW; Operating mode CW, 1 Hz, 2 Hz
/P: Optical power meter; weavelength range 1200...1650 nm, power range -60...0 dBm, test uncertainty ±5% (-25 dBm, CW)
/S: Light source; operating wavelength same with OTDR, output power -5 dBm, operating mode CW, 270 Hz, 1 kHz, 2 kHz

Included: Ceyear-6418C, power supply (power cord, power adaptor), certificate of conformity, user manual, CD (simulation and analysis software contained), engineering plastic box (straps included), straps especially for instruments.

Options and Accessories

ModelDescription
6418C-001U disk option
6418C-002SD card option
6418C-003USB cable
6418C-004Standby battery pack
6418C-005LC, SC, ST adaptors to test different types of optical fiber connectors
6418C-006Optical fiber jumper FC/UPC to FC/APC
6418C-007Optical fiber jumper FC/UPC to SC/UPC
6418C-008Single-mode fiber transfer jumper FC/UPC to LC/UPC
6418C-009Engineering plastic box for instrument; incl. straps
