DL-V-SO Options for the dydaqlog DL-V-004-A1 IIoT Datalogger
Description
Files/Downloads
Software Extensions for dydaqlog DL-V-004-A1
Model Overview
| Model | Designation | Description |

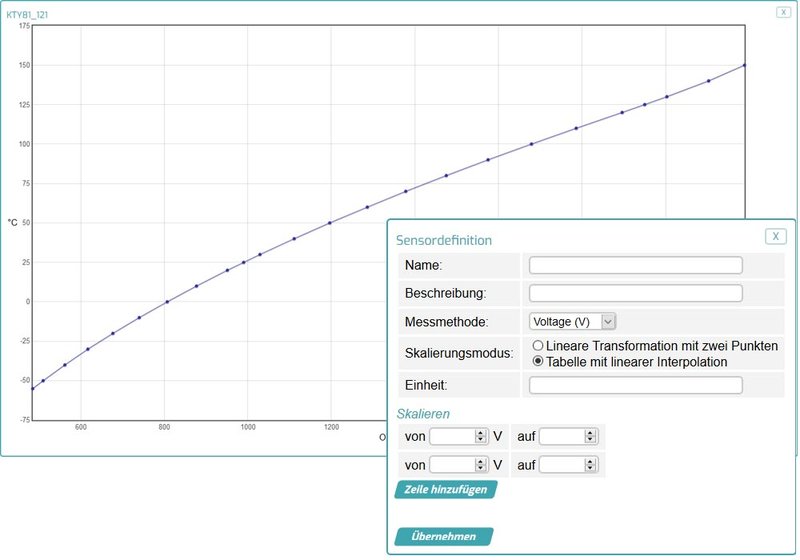

| DL-V-SO-001 | Software extension for defining your own sensor types | As standard, the ▸dydaqlog data logger supports various sensor types such as thermocouples, resistance thermometers or measuring bridges. This software extension allows to read in and scale the measurement data of additional sensors that are not supported as standard. This is done either by linear transformation using two points on a straight line or by entering any number of points in a supporting point table to define non-linear sensor types. Each sensor type described in this way can be saved and is then available in the configuration menu. |

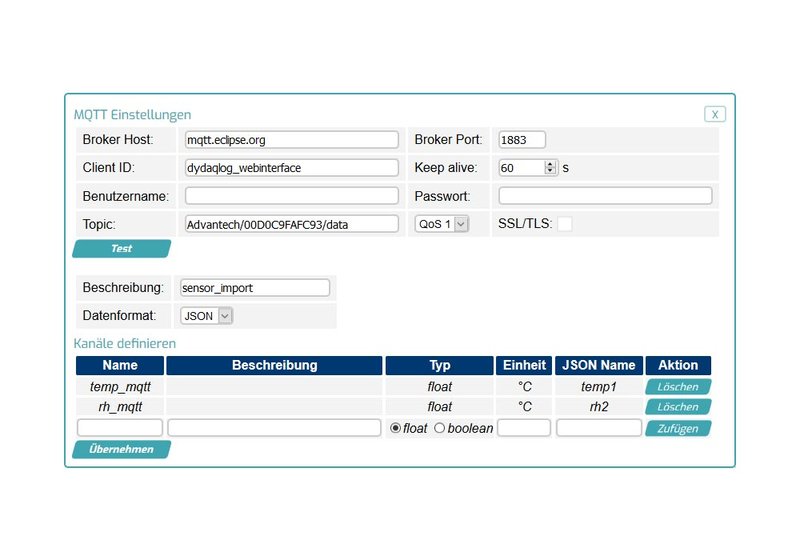

| DL-V-SO-002 | Software extension for importing external data via MQTT | Software extension for reading data from external sensors or I/O devices into the ▸dydaqlog data logger. The external device sends its data to the MQTT message broker (central distributor). This can be located somewhere externally in the IoT or locally on the ▸dydaqlog data logger (software option). From this broker, a receiver (MQTT client, here the ▸dydaqlog data logger) can subscribe to the message and then receives the data via push message. The sensors or I/O devices can be distributed anywhere in the world. The measured data are processed, displayed or stored in the data logger as usual. |
| DL-V-SO-003 | Software extension local MQTT Message Broker | The MQTT Message Broker is installed directly on the ▸dydaqlog data logger. It receives data from external sensors or I/O devices registered with it. The DL-V-SO-002 software extension (import of external data via MQTT) is required for this. The MQTT broker sends the data via push message internally to the ▸dydaqlog data logger or to external MQTT clients. |
| DL-V-SO-005 | Software extension for importing external data via Modbus TCP | The Modbus protocol is often used for communication between intelligent sensors or I/O devices with automation or measuring devices. With this software option, the ▸dydaqlog data logger can receive the data from these devices and display, save, or process them in the same way as the measurement data from its own internal analog or digital inputs. The Modbus protocol may be extended by own registers from manufacturer to manufacturer, so that the ▸dydaqlog interface may have to be adapted. Please ask in case of doubt. |
| DL-V-SO-007 | Software extension process visualization | This software option enables process images to be displayed in one or more display elements of the web interface. Graphic files in JPG, PNG, GIF and BMP format can be read in. They are automatically adapted to the desired display size and displayed as a background image. Display and control elements for online display and process interaction can then be freely arranged on this background. Available elements are: Numerical display, status display (LED), switch, label text. |
| DL-V-SO-008/9 | Connection with data clouds | |
| DL-V-SO-010 | Process control | |
| DL-V-SO-011 | Data export via Modbus TCP | |
| DL-V-SO-012 | Report generation | |
