DT9832 and DT9836 High-Performace USB Data Acquisition Modules
Description
Files/Downloads
Benefits of the DT9832 and DT9836 DAQ Boxes With Isolated, Simultaneous Inputs
- 2, 6, or 12 isolated, simultaneous, 16-bit analog input channels.
- A/D sample rates up to 2.0 MS/s per channel.
- Additional analog outputs, digital-I/O, counters and quadrature encoders.
DT9832 and DT9836 High-Performace USB Data Acquisition Modules

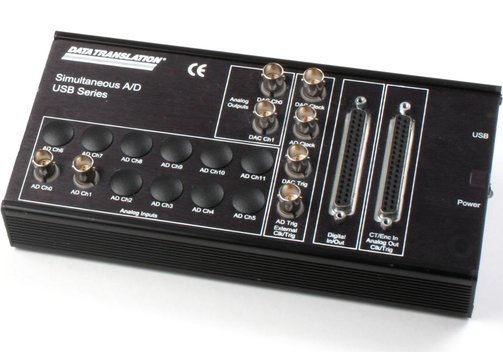

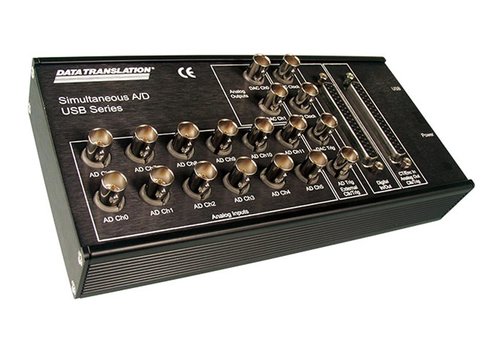

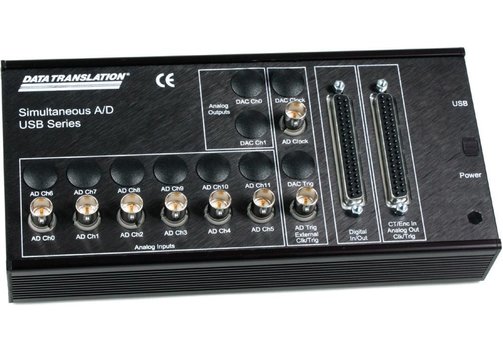

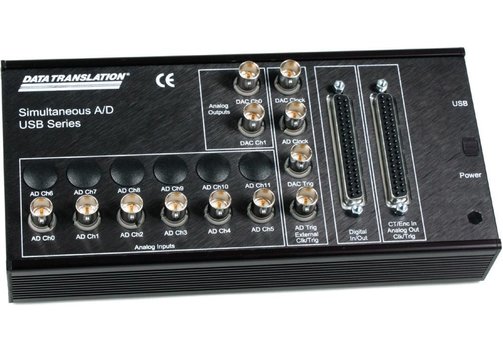

Models DT9832A-02-2-BNC (6069-410-118), DT9836-12-2-BNC (6069-410-265), DT9836-6-0-BNC (6069-410-139), DT9836-6-4-BNC (6069-410-266) USB DAQ Modules
The devices of the DT9832 and DT9836 series are high-speed, high performance USB data acquisition modules that provide simultaneous analog input operation at up to 225 kS/s or 2.0 MS/s per channel. Each analog input has its own 16-bit A/D converter. This eliminates phase shift between channels and allowsyou to correlate measurements at the exact same instant in time. Each USB DAQ module features three quadrature decoders for measuring absolute and relative position and for detecting rotational speed.
- 2, 6, or 12 simultaneous, 16-bit A/D channels.
- Fast sample rates up to 225 kS/s or 2.0 MS/s per channel.
- 2 or 4 simultaneous, 16-bit deglitched D/A channels; continuous output mode or waveform mode.
- Two 32-bit counter/timers.
- Three 32-bit quadrature encoders.
- 32 digital I/O lines.
- ±500 V galvanic isolation prevents ground loops.
- Synchronous subsystem operation: Analog input, analog output, digital I/O, counter/timer, and quadrature encoder.
- Compatible with LabVIEW and MATLAB.
- Includes free QuickDAQ so war
- Connected to a Windows-PC via USB 2.0. Powered by an external power supply (included).
Model Overview
| Model | DT9832A-02-2-BNC 6069-410-118 | DT9836-12-2-BNC 6069-410-265 | DT9836-6-0-BNC 6069-410-139 | DT9836-6-4-BNC 6069-410-266 | |
| Analog inputs | Number | 2 single-ended | 12 single-ended | 6 single-ended | 6 single-ended |
| A/D conversion | 16 bit, up to 2.0 MS/s per channel | 16 bit, up to 225 kS/s per channel | 16 bit, up to 225 kS/s per channel | 16 bit, up to 225 kS/s per channel | |
| Ranges | ±10 V | ±5 V, ±10 V | ±5 V, ±10 V | ±5 V, ±10 V | |
| Digital-I/O | Number | 16 inputs/16 outputs (1x 16-bit input port, 1x 16-bit output port) | 16 inputs/16 outputs (1x 16-bit input port, 1x 16-bit output port) | 16 inputs/16 outputs (1x 16-bit input port, 1x 16-bit output port) | 16 inputs/16 outputs (1x 16-bit input port, 1x 16-bit output port) |
| Analog outputs | Number | 2 | 2 | - | 4 |
| D/A conversion | 16 bit, 500 kS/s | 16 bit, 500 kS/s | 16 bit, 500 kS/s | 16 bit, 500 kS/s | |
| Range | ±10 V | ±10 V | ±10 V | ±10 V | |
| Counter/timer | Number | 2, 32 bit | 2, 32 bit | 2, 32 bit | 2, 32 bit |
| Quadrature encoder | Number | 3, 32 bit | 3, 32 bit | 3, 32 bit | 3, 32 bit |
| Galvanic isolation | ±500 V | ±500 V | ±500 V | ±500 V | |
| Synchronous operation and trigger | All functions (A/D, D/A, DIO, counter/timers, and quadrature encoders) can be simultaneously triggered internally or externally. Data can then be streamed synchronously to host memory. This can be done via external trigger or by the internal clock of the module | ||||
| Connectivity | USB | USB 2.0 high-speed | |||
| Power | +5 V from external power supply (included) | ||||
| Analog inputs | 2x BNC, 1x BNC external trigger, 1x BNC AD clock | 12x BNC, 1x BNC external trigger, 1x BNC AD clock | 6x BNC, 1x BNC external trigger, 1x BNC AD clock | 6x BNC, 1x BNC external trigger, 1x BNC AD clock | |
| Analog outputs | 2x BNC, 1x BNC external trigger, 1x BNC DAC clock | 2x BNC, 1x BNC external trigger, 1x BNC DAC clock | - | 2x BNC, 1x BNC external trigger, 1x BNC DAC clock, 2x analog outputs on 37-pin D-sub female | |
| Digital I/O | 1x 37-pin D-sub female | 1x 37-pin D-sub female | 1x 37-pin D-sub female | 1x 37-pin D-sub female | |
| Counter, quadrature encoder | 1x 37-pin D-sub female | 1x 37-pin D-sub female | 1x 37-pin D-sub female | 1x 37-pin D-sub female (incl. the 2x analog outputs) | |
Included: Module DT 9832A-02-2-BNC, 9836-12-2-BNC, 9836-6-0-BNC, or 9836-6-4-BNC, power supply, software and user manual via download.
