Benefits of the eX-9015 6-Channel RTD Temperature Sensor Module
- Differential inputs for RTD temperature sensors.
- 16 bit resolution (10 or 12 S/s).
- Compact modules, wall- or DIN-rail-mountable.
eX-9015 6 Channels RTD Inputs, for RS485
The eX-9015 industrial modules are the ideal solution for decentral/distributed RTD sensor signale acquisition with your PC. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity or - for the models -MTCP - via RS45 Ethernet.
- Industrial modules with RS485, MODbus-RTU or Modbus/TCP, TCP/IP for decentral/remote networking applications.
- 6 or 7 (-MTCP) differential analog inputs for 2/3/4-wire RTD Pt/Ni/Cu or -MTCP: Pt100/100, Balco 500, Ni604/1000.
- 16 bit, 10 (-H) or 12 S/s A/D conversion.
- Break line detection.

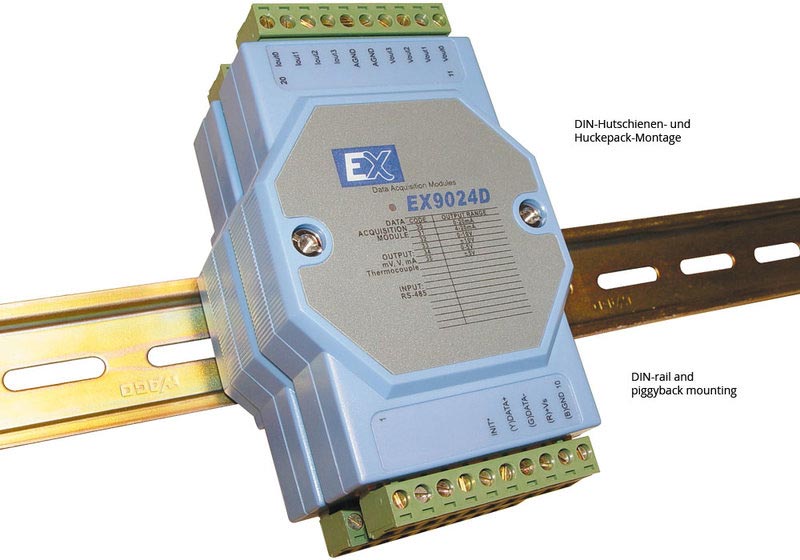

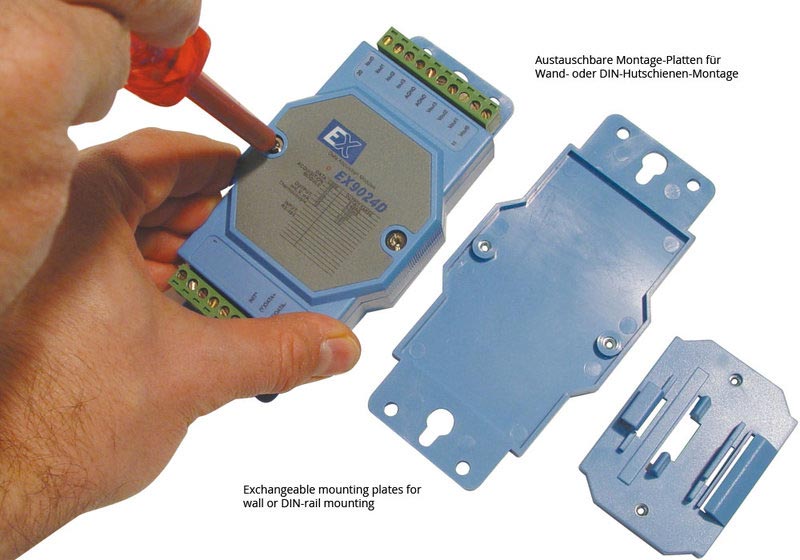

- DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.

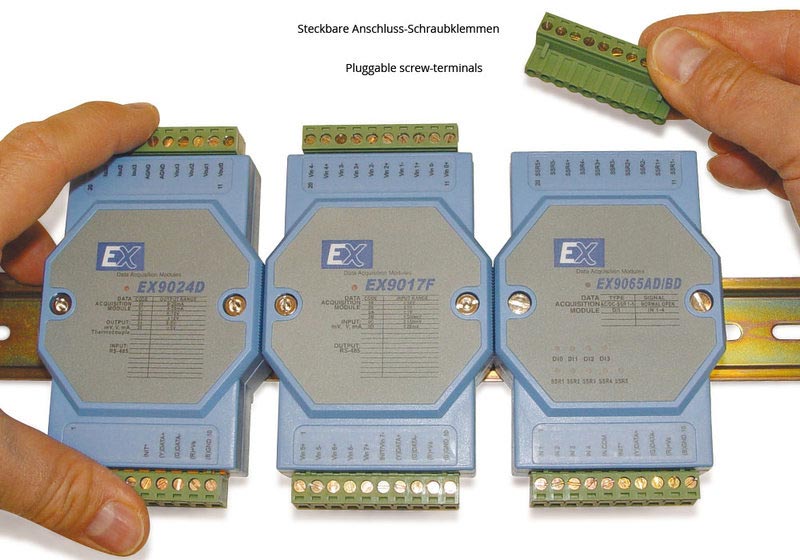

- Pluggable screw terminals (signal connections, RS485, "INIT").
- "INIT" input: Module reset.
- Extended temperature range (-25...+70°C).
- Galvanic isolation of input to output.
- Configuration: Manual or with software (included).
- Power supply 10...30 VDC.
- Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
- Hard- and software watchdog.
Model Overview
| Model | eX-9015 Series | ||||
| Versions | eX-9015 | eX-9015H | eX-9015H-M | eX-9015-MTCP | |
| Channels | 6 differential | 6 differential | 6 differential | 7 differential | |
| Resolution | 16 bit | 16 bit | 16 bit | 16 bit | |
| Sample rate | 12 S/s | 10 S/s | 10 S/s | 12 S/s | |
| Sensor Inputs | RTD: Pt, Ni, Cu (2/3/4-wire) | RTD: Pt, Ni, Cu (2/3-wire) | RTD: Pt, Ni, Cu (2/3-wire) | PT100, PT1000, Balco 500, Ni 604, Ni1000 | |
| Accuracy | ±0.1% | ±0.1% | ±0.1% | ±0.05% | |
| Rejection | 60 Hz | 50 Hz, 60 Hz | 50 Hz, 60 Hz | 50 Hz, 60 Hz | |
| Isolation | 3000 V | 3000 V | 3000 V | 3000 V | |
| Power consumption | 1.1 W | 0.8 W | 0.8 W | 2.2 W | |
| Communication | RS485, 300...115200 bps | RS485, 300...115200 bps | Modbus-RTU RS485, 300...115200 bps | RJ45 EthernetM Modbus/TCP, TCP/IP, UDP, ICMP, ARP | |
Included: Module, DIN-rail and wall mounting kit, user manual, driver CD.
Information on product safety:
Manufacturer:
TopsCCC Technology Co., LTD., 5F., No 12, Lane 345, Yangguang Street, 11491 Nei-Hu, Taipei/TWN
