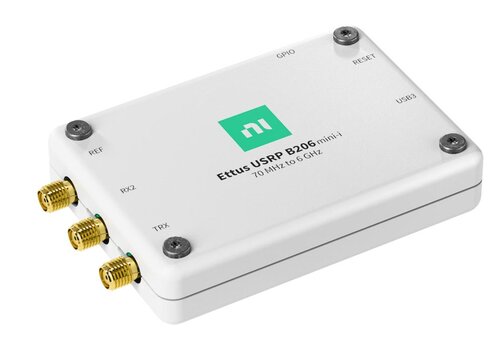

NI Digilent Ettus USRP B206mini-i 1x1, 70MHz-6GHz SDR/Cognitive Radio
NI Digilent Ettus USRP B206mini-i 1x1, 70 MHz to 6 GHz SDR/Cognitive Radio
The NI Digilent Ettus USRP B206mini-i (6002-410-047) is a flexible and compact platform that is an ideal solution for both hobbyist and OEM applications. It offers a wide frequency range from 70 MHz to 6 GHz and a user-programmable, industrial-grade AMD Spartan-6 XC6SLX150 FPGA. The RF front end uses the Analog Devices AD9364 RFIC transceiver with an instantaneous bandwidth of 56 MHz. The card is powered via a high-speed USB 3.0 connection to stream data to the host computer. The USRP B206mini-i also features connectors for GPIO, JTAG, and synchronization with a 10 MHz clock reference or PPS time reference input signal.
Experiments with the low-cost SDR USRP B206mini-i include FM and TV broadcasting, cellular communications, GPS, WiFi, and ISM. Users can immediately start prototyping in GNU Radio and participate in the open-source SDR community. Full support from the USRP Hardware Driver (UHD) software enables seamless reuse of code from existing designs, compatibility with open-source applications such as HDSDR and OpenBTS, and an upgrade path to industrial-grade USRP systems.
Model Oberview
| Model | NI Ettus USRP B206mini-i | |
| 6002-410-046 | 6002-410-047 | |
| Design | With enclosure | Board only (OEM) |
| Channels | 1 TX, 1 RX | |
| Frequency range | 70 MHz...6 GHz | |
| Instantaneous bandwidth | Up to 56 MHz | |
| IIP3 (at typical NF) | -20 dBm | |
| Power output | >10 dBm | |
| Receive noise figure | <8 dB | |
| Conversion performance and clocks | ADC sample rate (max.): 61.44 MS/s; ADC resolution: 12 bit DAC sample rate (max.): 61.44 MS/s; DAC resolution: 12 bit host sample rate (16b): 61.44 MS/s frequency accuracy: ±2.0 ppm | |
| Power supply | USB power: 5 V | |
| Dimensions (mm) | 83 x 51 x 8; 24 g | |
| Synchronization | 10 MHz clock reference, PPS time reference | |
| Environment | Operating temperature range 0...45°C (extended to -40...+75°C with enclosure kit); USRP hardware driver 3.9.2 (or later); GNU radio | |
| Product compliance | HTC: 8471809000; ECCN: 3A992.a | |
Including: NI Ettus USRP B206mini-i, USB 3.0 cable.
Optional accessory: 6002-240-014 enclosure kit for Ettus USRP B206mini-i board-only version.
