Benefits of the eX-9033 with 3 RTD Temperature Sensor Inputs Pt/Ni

  • 3 differential RTD inputs Pt, Ni, Cu, 2/3/4-wire, 16 bit.
  • Models with individual channel configuration.
  • Small modules, DIN-rail/wall mountable.

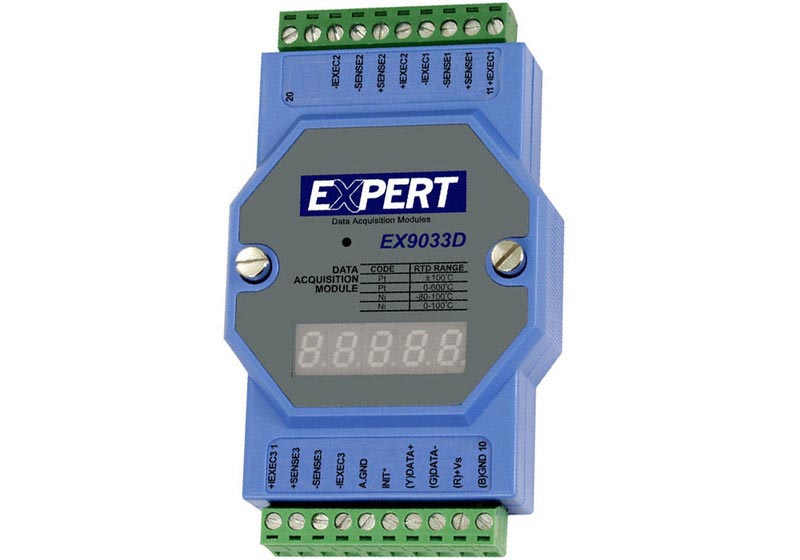

eX-9033 3 Channels RTD Inputs, for RS485

The eX-9033 industrial modules are the ideal solution for decentral/distributed RTD sensor signale acquisition with your PC. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.

  • Industrial modules with RS485, MODbus-RTU for decentral/remote networking applications.
  • 3 differential analog inputs for RTD Pt/Ni.
  • 16 bit, 12 S/s A/D conversion.
  • DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.

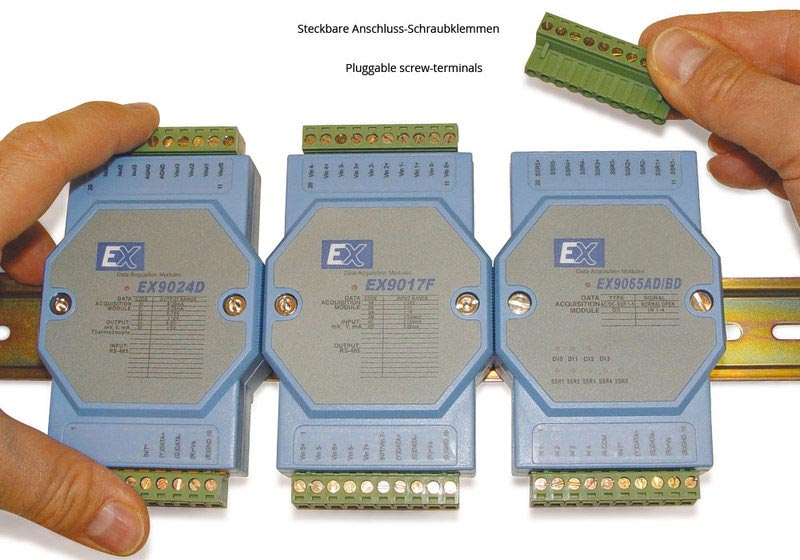

  • Pluggable screw terminals (signal connections, RS485, "INIT").
  • "INIT" input: Module reset.
  • Extended temperature range (-25...+70°C).
  • Galvanic isolation of input to output.
  • Configuration: Manual or with software (included).
  • Power supply 10...30 VDC.
  • Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
  • Hard- and software watchdog.

Model Overview

ModeleX-9033
Available versionseX-9033eX-9033P
Channels3 differential3 differential
Individual channel configuration-
Resolution16 bit16 bit
Total sample rate10 Hz10 Hz
Sensor inputPt, Ni, Ci (2/3/4-wire) Pt, Ni, Cu (2/3/4-wire)
Break line detection
Isolation3000 V3000 V
Power consumption1.0 W1.0 W
CommunicationRS485, 300...115200 bpsRS485, 300...115200 bps

Included: Module, DIN-rail and wall mounting kit, user manual, driver CD.
