eX-9051 12/16 Digital Inputs, 2 Digital Outputs, for RS485
Description
Accessories
Files/Downloads
Benefits of the eX-9051 with 12/16 Isolated Digital Inputs, 2 Digital Outputs
- Up to 16 isolated digital inputs.
- Compact modules with detachable screw terminals.
- Models with RS485 or Ethernet/RJ45.

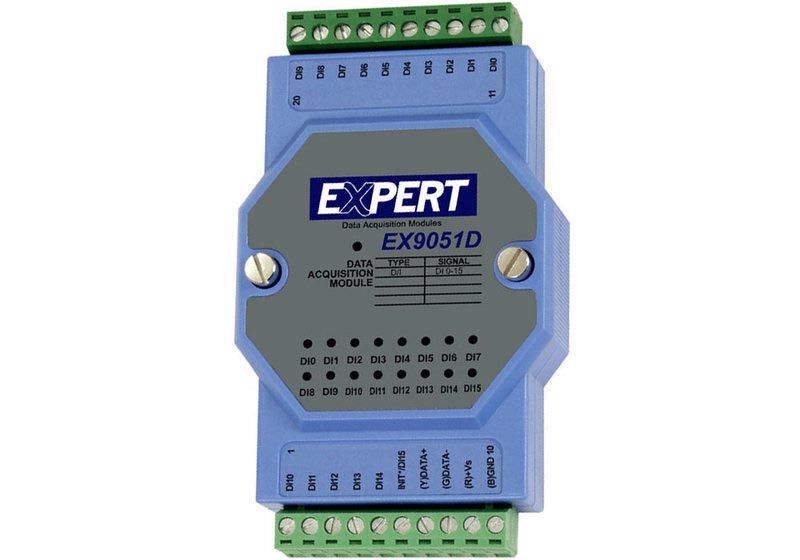

eX-9051 16/12 Digital Inputs, 2 Digital Outputs, for RS485
The eX-9051 industrial modules are the ideal solution for decentral/distributed, PC-controlled acquisition or output of digital signals. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.
- Industrial modules with RS485, MODbus-RTU or Modbus/TCP, TCP/IP for decentral/remote networking applications.
- 16 digital inputs or 12 digital inputs plus 2 digital outputs.

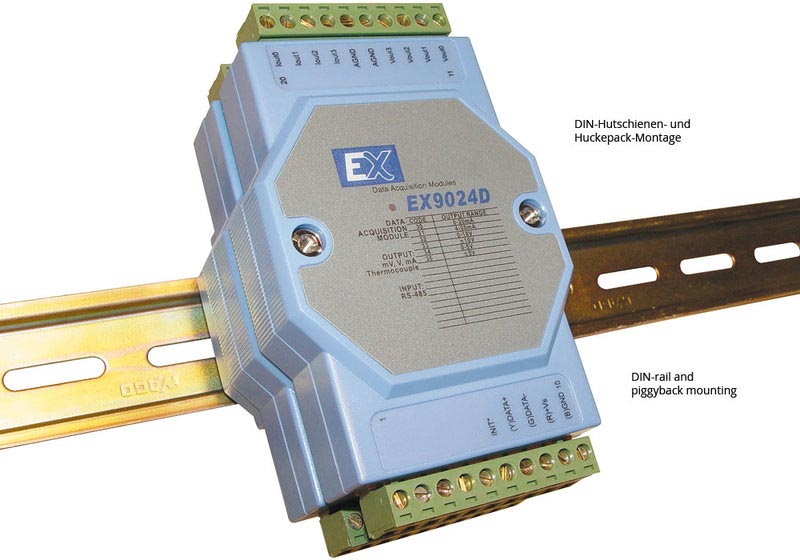

- DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.

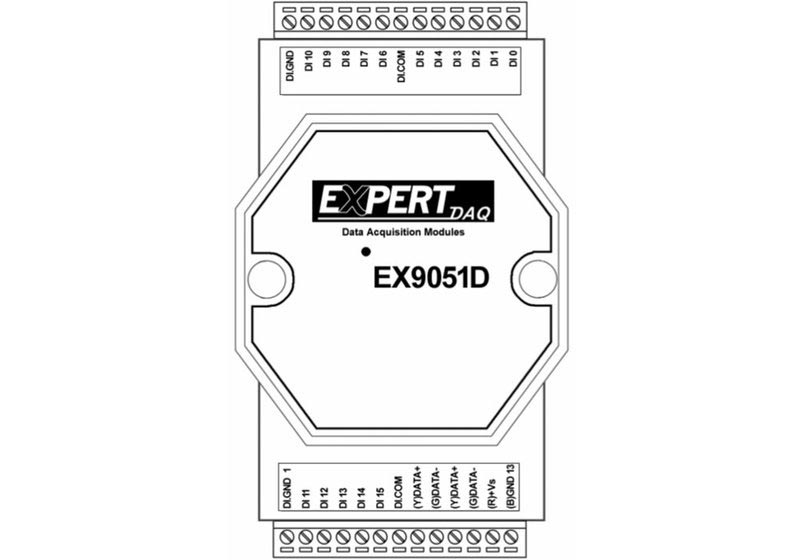

- Pluggable screw terminals (signal connections, RS485, "INIT").
- "INIT" input: Module reset.
- Extended temperature range (-25...+70°C).
- Galvanic isolation of input to output.
- Configuration: Manual or with software (included).
- Power supply 10...30 VDC.
- Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
- Hard- and software watchdog.
Model Overview
| Model | eX-9051 | |
| Available versions | eX-9051D-M | eX-9051-MTCP |
| Digital inputs | 16 single-ended, log. 0: Max. 4 VDC, log. 1: 10...50 VDC | 12, log. 0: Close to GND (dry), log. 1: Open (dry); counter/frequency/latch |
| Isolation | Common source, 3750 VRMS | 3000 VDC (to interface) |
| Digital outputs | - | 2 open collector (NPN) up to 30 V/500 mA max. load |
| Isolation | - | 3000 VDC (to interface) |
| Power consumption | 1.2 W | 2.0 W |
| LED display for channels | ✓ | - |
| Communication | Modbus-RTU RS485, 300...115200 bps | RJ45 Ethernet; Modbus/TCP, TCP/IP, UDP, ICMP, ARP |
Included: Module, DIN-rail and wall mounting kit, user manual, driver CD.
