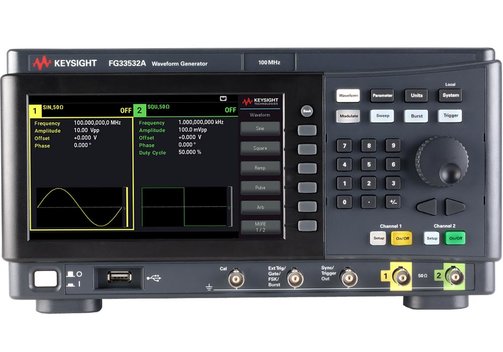

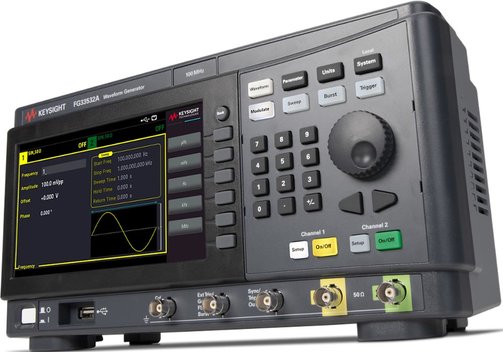

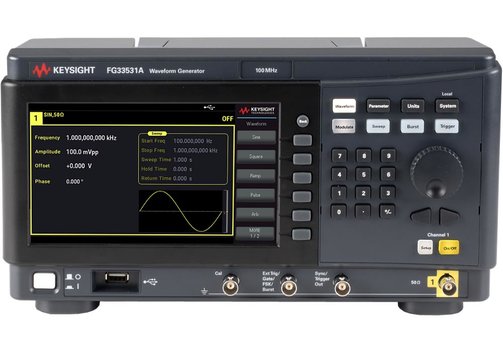

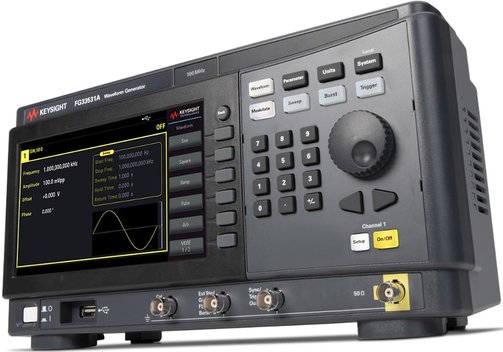

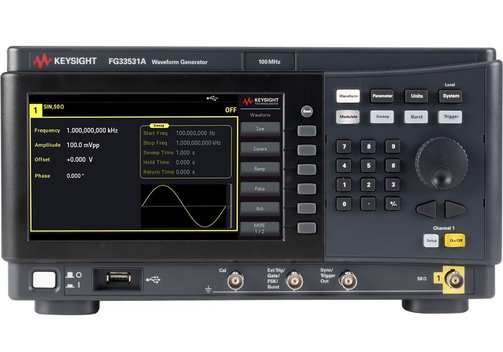

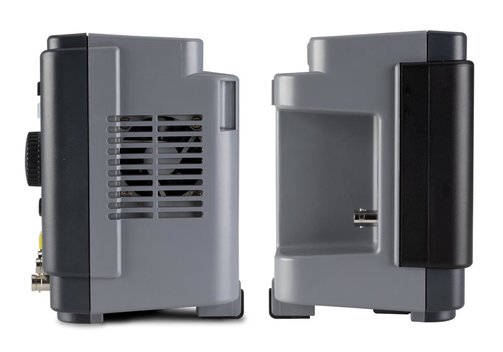

Keysight FG33531A/FG33532A 1-/2-Channel 100 MHz Function/Arbitrary Waveform Generators
The Keysight FG33531A and FG33532A are function/arbitrary waveform generators with a frequency up to 100 MHz (sine). The offer all the essential signals and features you expect, including modulation, sweep, and burst capabilities. With the Keysight Trueform technology, every waveform point is replicated, providing up to 16 MegaSamples (MS) record length per channel. Enhance your waveform creation process with Keysight BenchVue software and BenchLink Waveform Builder, making it simple to create and edit even your most complex waveforms.
- Trueform waveform generator.
- Low distortion/spur, excellent edge stability: THD 0.06%; jitter <50 ps.
- Reproduce low voltage signals (1 mVPP).
- Standard, built-in ARB and user defined ARB signals.
- Frequency up to 100 MHz (sine).
- ARB waveform length up to 8 MS (optional 16 MS), 16 bit, sample rate 1 µS/s to 320 MS/s.
- Burst and sweep.
- Modulations: AM, FM, PM, FSK, BPSK, PWM, sum (carrier + modulation).
- 7"/17.8 cm graphical color LCD.
- USB and LAN/Ethernet/LXI interfaces.
- Supported by the PathWave BenchVue software.
Model Overview
| Model | FG33531A | FG33532A | |
| Channel number | 1, Keysight Trueform technology | 2, Keysight Trueform technology | |
| Max. frequency | 100 MHz (sine) | ||
| Waveforms | Standard | Sine (max. 100 MHz), square and pulse (max. 30 MHz), ramp and triangle (max. 200 kHz), Gaussian noise (1...30 MHz), pseudorandom binary sequence (PRBS, bit rate 1...50 Mbps, 1 Mbps resolution), DC | |
| Built-in arbitrary | Cardiac, exponential fall, exponential rise, Gaussian pulse, Haversine, Lorentz, D-Lorentz, negative ramp, sinc | ||
| User-defined arbitrary | Waveform length up to 8 MS (optional 16 MS); 16 bit; sample rate 1 µS/s to 320 MS/s, 1 µS/s resolution | ||
| Operating modes | Continuous, modulate, frequency sweep, counted burst, gated burst | ||
| Modulation types | Amplitude modulation (AM), frequency modulation (FM), phase modulation (PM), frequency shift keying (FSK), binary phase shift keying (BPSK), pulse width modulation (PWM), sum (carrier + modulation) | ||
| Display | 7"/17.8 cm graphic color LCD | ||
| Interfaces | USB, LAN/LXI | ||
| Dimensions (mm) | 314 x 130 x 165; 3.1 kg | ||
| Options and optional accessories | Memory upgrade | MEM33531U memory upgrade to 16 MS for 1-channel FG33531A waveform generators | MEM33532U memory upgrade to 16 MS for 2-channel FG33532A waveform generators |
| Mounting | EDU190A instrument stacking kit - frame for stacking the devices | ||
