HIKMICRO Eco/Eco-V Series Handheld Thermal Cameras
Description
Files/Downloads
Benefits of the HIKMICRO Eco-V All-round Economy IR Cameras
- IR performance, amazingly affordable and absolutely brilliant.
- Thermal resolution 96x96 (9,216 pixels), SuperIR 240x240 (57,600 pixels).
- Model -V with image modes thermal, visual, fusion.
HIKMICRO Eco/Eco-V Series Handheld Thermal Cameras

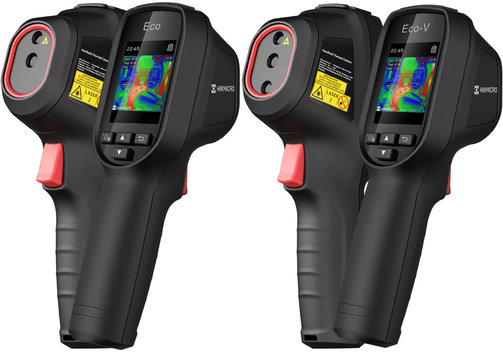

The HIKMICRO Eco and Eco-V are economy handheld thermal cameras with a thermal resolution of 96x96. The version -V has an additional visual camera to achieve the imaging modes thermal, visual and fusion.
- Thermal resolution 96x96 (9,216 pixels).
- 112:1 distance to spot ratio (D:S).
- SuperIR 240x240 (57,600 pixels).
- NETD <50 mK (at 25°C, F#=1.0).
- Measurement presets: center spot, hot spot, cold spot, off.
- 25 Hz image frequency.
- Laser pointer
- Built-in 4 GB flash memory for approx. 30,000 pictures.
- Up to 8 hours continuous running.
- Version -V: Additional visual camera, for imaging modes thermal/visual/fusion.
Model Overview
| Model | Eco | Eco-V |
| Part number | HM-TP30-1AQF-Eco | HM-TP30-1AQF-Eco-V |
| IR resolution | 96x96 (9,216 pixels), SuperIR 240x240 (57,600 pixels) | |
| NETD (at 25°C, F#=1.0) | NETD <50 mK | |
| Image frequency | 25 MHz | |
| Field of view (FOV) | 50°x50° | |
| Focus | Focus free | |
| Object temperature range and accuracy | -20...+550°C (-4...+1022°F); max. (±2°C/3.6°F, ±2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F) | |
| Color palettes | White hot, black hot, rainbow, ironbow, red hot, fusion (model -V) | |
| Measurement tools | Center spot, hot spot, cold spot | |
| Image modes | Thermal | Themal, visual, fusion |
| Visual camera | - | 640x480 |
| Display | 2.4"/6 cm 240x320 LCD screen | |
| Laser pointer | Yes | |
| Storage media | Built-in 4 GB flash memory; image storage capacity approx. 30,000 images | |
| Interfaces | USB type 2 | |
| Battery | Rechargeable Li-ion battery | |
| Dimensions (mm) | 196 x 117 x 59; approx. 290 g; IP54 protection level | |
