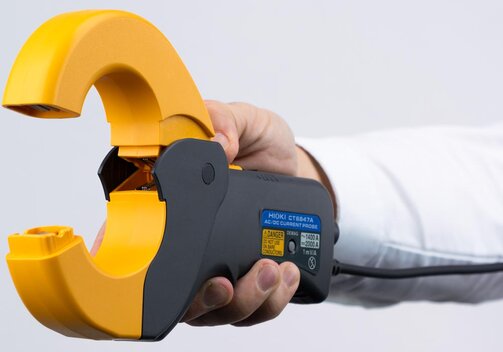

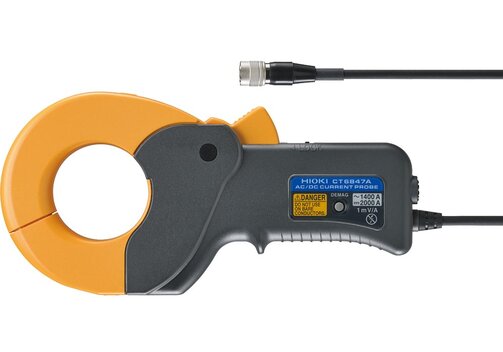

HIOKI CT6847 AC/DC Current Clamp/Current Sensor
The HIOKI CT6847 is a precision AC/DC current clamp featuring fluxgate technology. It has a rated current of 2000 A and a basic accuracy of ±0.15% of the measured value. The clamp operates over a wide temperature range of -40... +85°C and covers a bandwidth from DC to 70 kHz. The maximum measurable conductor diameter is 50 mm, and the clamp’s cable length is 3 m.
- Current clamp/current sensor for DC currents up to 2000 A, AC currents up to 1400 ARMS.
- Frequency bandwidth DC to 70 kHz.
- Basic accuracy ±0.15% of the measured value.
- Temperature range -40...+85°C.
- Output signal 1 mV/A.
- Applications:
WLTP (Worldwide Harmonized Light Vehicles Test Procedure) testing on electric vehicles such as high-performance EVs, electric trucks, and other electrified vehicles.
Design validation of high-performance electric drives, including electric construction machinery and electric aircraft.
Current measurements for high-performance UPS systems and power conditioners.
Model Overview
| Model | HIOKI CT6847A | |
| Nominal primary DC current | IPN DC | Min. -2000 A to max. +2000 A |
| Nominal primary AC current | IPN AC | 1400 ARMS |
| Measurement range | IPM | Min. -2000 A to max. +2000 A |
| Nominal output voltage | Vout | Min. -2 V to max. +2 V |
| Primary/secondary ratio | Ratio | Typ. 1 mV/A |
| Linearity error | εL | Typ. ±20 ppm |
| Bandwidth (±3 dB) | f | Typ. 70 kHz |
| Withstand voltage (1 mA, 50/60 Hz for 1 minute) | Ud | Max. 4.26 kV |
| Power supply voltage | Uc | Min. -12 V to max. +12 V |
| Operating temperature range | TA | -40...+85°C |
| Output cable length | Lcable | Typ. 3 m |
Included: HIOKI CT 6847A AC/DC current clamp, carrying case, 6 marking bands, user manual.
Information on product safety:
Manufacturer:
HIOKI E.E. Corporation, 81 Koizumi Ueda, Nagano 386-1192/JPN
www.hioki.com
(EU branch Germany)
