Benefits of the SP700x Series CAN and CAN FD Signal Sensors

  • Easy CAN acquisition: Simply pinch over wire insulation.
  • Easy vehicle CAN bus monitoring with non-contact sensing technology.
  • 1- and 2-channel version with +10...+30 VDC or USB power supply.

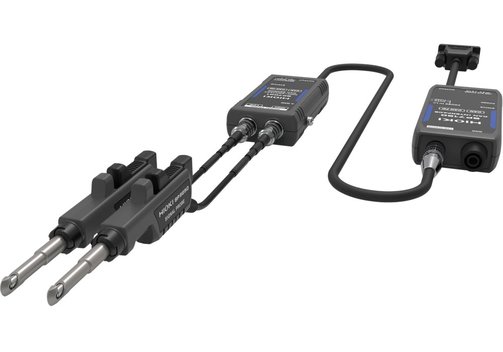

HIOKI SP7001, SP7002 Non-Contact CAN Sensors

The HIOKI SP7001 and SP7002 are non-contact CAN and CAN FD signal sensors. They are used to accurately capture CAN bus signals for vehicle and next generation equipment evaluation and development. They are easy to use and are simply pinched over wire insulation without the need to peel away cable insulation or use a sub-harness that is traditionally required to obtain signals.

  • Non-contact CAN and CAN FD signal sensors.
  • Easy-to-use - simply pinch over wire insulation - capacitive-coupled signal detection.
  • 1- and 2-channel version.
  • Depending on version +10...+30 VDC or USB power supply.

Model Overview

ModelHIOKI SP7001HIOKI SP7002
Type, supported signalsNon-contact CAN sensor, supports CAN FD/CAN signals; 125 kbit/s to 3 Mbit/sNon-contact CAN sensor, supports CAN signals; 125 kbit/s to 1 Mbit/s

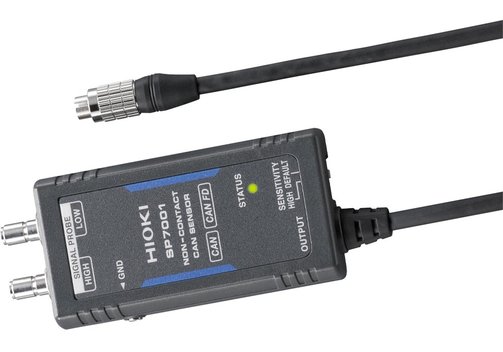

VersionsSP7001:
Sensor box only, requires CAN interface, signal probe

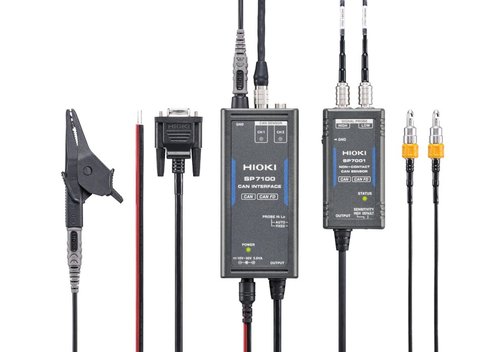

SP7001-90:
Consists of SP7001,
SP7100 (CAN interface, 2 channel, 10...30 VDC power supply),
SP9200 (signal probe screw type),
L9500 (power supply cable)

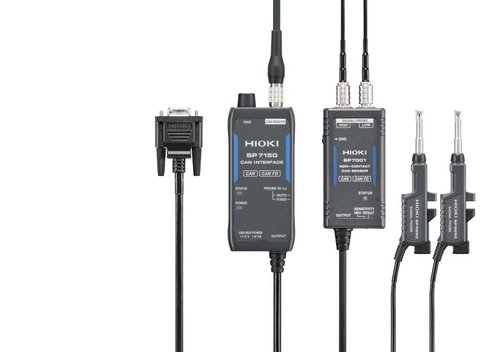

SP7001-95:
Consists of SP7001,
SP7150 (CAN interface, 1 channel, USB power supply),
SP9250 (signal probe trigger type),
L9510 (USB power supply cable)
SP7002:
Sensor box only, requires CAN interface, signal probe

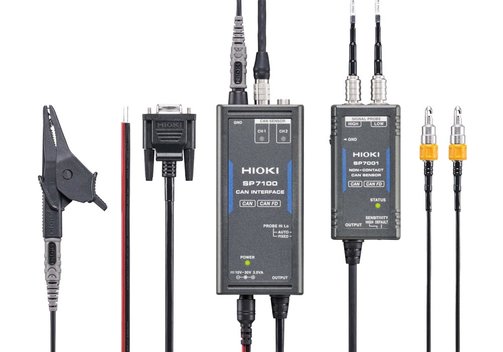

SP7002-90:
Consists of SP7002,
SP7100 (CAN interface, 2 channel, 10...30 VDC power supply),
SP9200 (signal probe screw type),
L9500 (power supply cable)
Detection methodCapacitive-coupled signal detection; no bare-wire connections
Detectable cablesAVS/AVSS-compliant cables, external diameter 1.2 to 2.0 mm
Number of channels1 (SP7150), 2 (SP7100)
Total delay timeTyp. 130 ns
CAN terminal resistanceTyp. 60 Ω, built-in
Signal output connector9 pin D-sub female
Dimensions (mm)SP7001, SP7002: 44 x 85 x 20; 180 g, cable length: 2.5 m;
SP7100: 55 x 120 x 25; 130 g, cable length: 0.3 m
SP7150: 47 x 100 x 20; 100 g, cable length: 0.3 m
SP9250: 11 x 25 x 101; 45 g, cable length: 0.8 m
SP9200: φ12 x 34, 26 g, cable length: 0.5 m

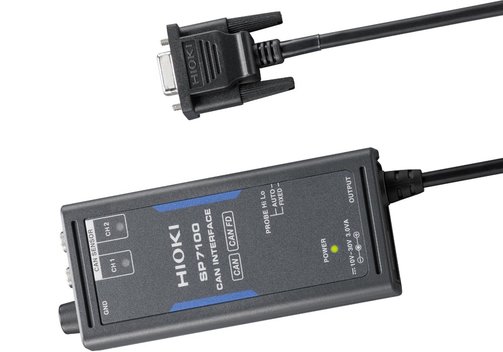

CAN interfacesSP7100: CAN interface, 2 channels, power supply +10...+30 VDC, incl. power cable LR9500;

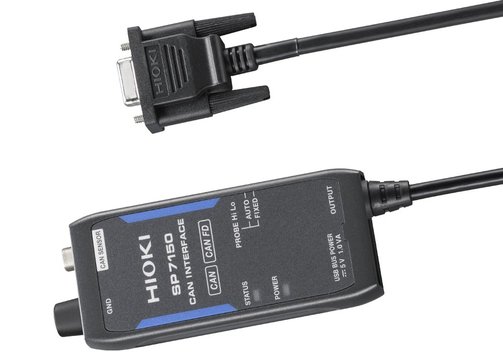

SP7150: CAN interface, 1 channel, USB power supply, USB cable L9510 and GND cable included

Included:
SP7001, SP7002: Quick start manual, operating precautions.
SP7100: Quick start manual, operating precautions, spiral tube, power cable L9500, alligator clip, GND connection cable.
SP7150: Quick start manual, operating precautions, spiral tube (for fixing power cable), USB cable L9510, alligator clip, GND connection cable.
