Benefits of the IT-N6900 up to 60 V/25 A or 150 V/10 A

  • DC power supply with 60 or 150 V, 10 or 25 A, 850 or 1500 W.
  • 1 mV/1 µA resolution.
  • Wide display and interfaces USB, LAN, optional GPIB, RS232.

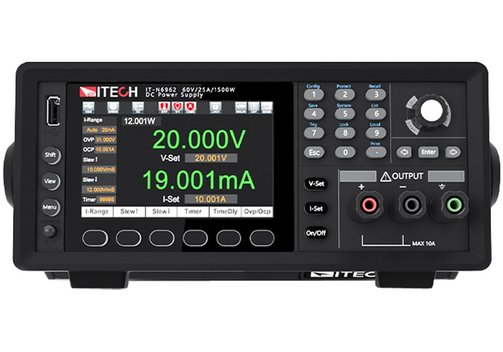

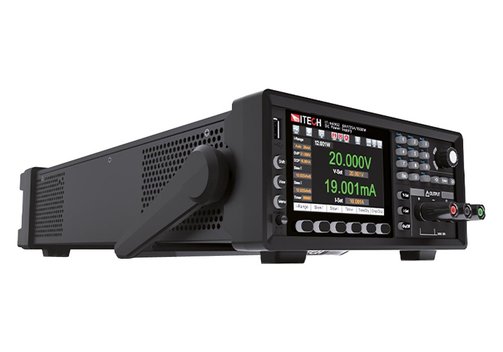

ITECH IT-N6900 Programmable DC Power Supply up to 1500 W

The ITECH IT-N6900 is a 1-channel DC power supply with 60 V or 150 V output and total power of 800 W or 1500 W. It has a large screen, low ripple and noise, and a current resolution of up to 1 µA. The IT-N6900 has CC and CV priority settings and foldback protection. Applications can be found in the test of DC-DC, semiconductor lasers, automotive electronics, communication electronics, motors, PV modules, etc. IT-N6900 series can use SCPI commands and has LabVIEW drivers, built-in USB, LAN/Ethernet and Digital-I/O communication interface, optional GPIB and RS232.

  • Voltage: 60 V, 150 V.
  • Power: 800 W, 1500 W, wide range output.
  • Current: 10 A, 25 A, 1 µA current resolution.
  • Linear + switching structure, lower ripple and noise.
  • Using a new type of transformer, lighter, higher efficiency and stability.
  • Faster voltage rise and fall.
  • With CC, CV priority, suitable for a variety of DUTs.
  • Remote compensation function.
  • Support OVP, UVP, OCP, OPP, OTP, foldback protection function.

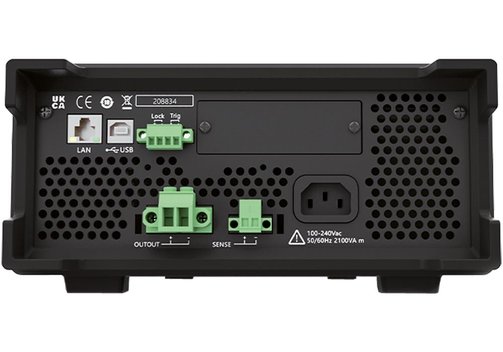

  • Built-in USB, LAN/Ethernet, Digital-I/O communication interface, optional GPIB, RS232.
  • Support SCPI, LabVIEW programming.
  • 4.3"/10.9 cm HD LCD.

Model Overview

ModelVoltageCurrentPowerResolutionAccuracyInterfaceSize
IT-N695260 V25 A850 W1 mV/1 µA≤0.03% + 12 mV/≤0.05% + 20 µAUSB, LAN/Ethernet, Digital-I/O; optional GPIB, RS232, analog½ 2U
IT-N6953150 V10 A850 W1 mV/1 µA
IT-N696260 V25 A1500 W1 mV/1 µA≤0.03% + 30 mV/≤0.05% + 20 µA
IT-N6963150 V10 A1500 W1 mV/1 µA
