ITECH IT7900 Regenerative Grid Simulator
Description
Files/Downloads
Benefits of the IT7900 1- and 3-Phase Grid Simulator
- Up to 15 kVA in 3-U size; up to 960 kVA.
- Regenerative capability.
- Touch-panel operation.

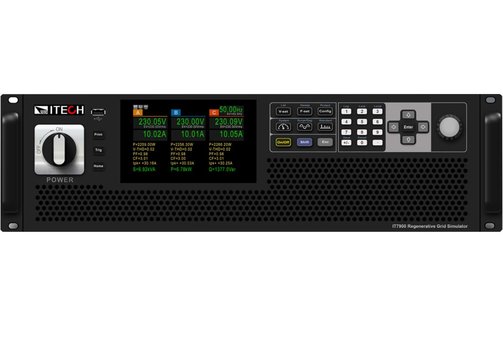

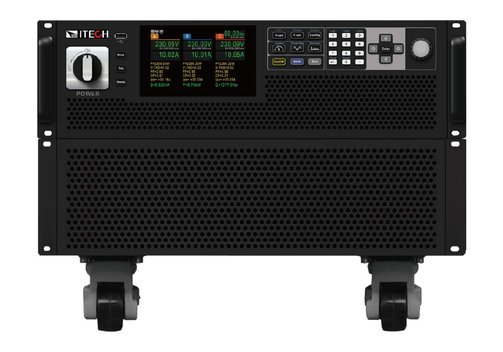

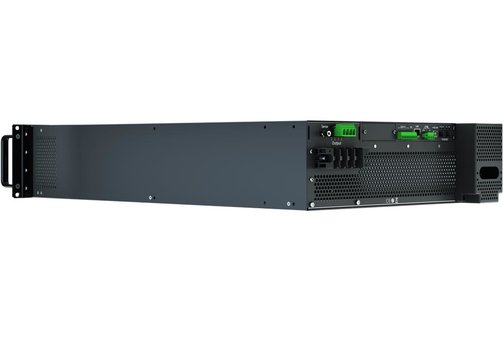

ITECH IT7900 Regenerative Grid Simulator
The IT7900 series is a programmable, four-quadrant grid simulator. It can also operate as a four-quadrant power amplifier which can be used to test various grid-connected equipment, such as PCS, energy storage system, microgrid, BOBC (V2X), PHiL, etc. With the islanding mode (RLC settable), a single IT7900 unit can realize the anti-islanding protection test. The IT7900 series offers up to 15 kVA in 3U size, with parallel connection power can be extended to max. 960 kVA.
- Up to 15 kVA in 3U rack space, 16...150 Hz.
- Regenerative grid simulator and full 4-quadrant AC/DC power sources.
- Power amplifier function for PHiL applications.
- Professional anti-islanding test mode, can set and simulate the RLC (resistive-inductive-capacitive), active and reactive power circuit for anti-islanding detection.
- Three working modes CV/current limit/power limit.
- AC, DC, AC+DC or DC+AC output capability.
- Comprehensive working modes selectable: Single-phase, three-phase, reversed phase and multi-channel (2,5 kVA model only single-phase).
- Programmable output impedance, allows simulation of real-world utility grid impedance (on request).
- Compliance tests incl. LVRT/phase jump/frequency variation/harmonic injection.
- Supported regulatory testing include IEC61000-4-11/4-13/4-14/4-28 etc.
- Wide voltage ranges: 350 V L-N and 500 V L-N (on request).
- Master-slave parallel with current sharing technology, up to 960 kVA.
- Intuitive touch screen; built-in single/3-phase AC power meter; scope function.
- Fast response time and high accuracy 0.1% + 0.2%FS.
- Waveforms library : Sine, square, triangle, clipped sine, trapezoidal, self-defined.
- Harmonics and interharmonics waveform synthesizer.
- Power line disturbance simulation testing by LIST programming/sweep/Surge and Sag functions.
- The harmonic measurement function can measure 50th order harmonics of voltage and current (voltage and current harmonic analysis, voltage harmonic simulation).
- Output 0...360° start/stop phase angle can be set.
- Front panel USB port for data and waveform import and export.
- Provides various trigger input/output signals. When amplitude/frequency changes, trigger signals can be generated to synchronously capture the current waveform of DUTs.
- Relay CTRL function, to cut off the connection between instrument and DUT.
- Frequency lock and phase lock function, tracking the external signal frequency and phase, to achieve 6-phase and 12-phase power output.
- Built-in USB, CAN, Ethernet/LAN, digital-I/O interface, optional GPIB, analog, and RS232.
Model Overview - the Complete Series
| Series | Main function | Load function | Form factor |
| IT7900 | 4-quadrant regenerative grid simulator starting at 5 kVA, up to 960 kVA via master-slave configuration | No AC/DC electronic load function (sink mode) | 15 kVA in 3U form factor (5 kVA single-phase and 6 kVA and above, single- and three-phase) |
| IT7900E | 4-quadrant regenerative grid simulator, extended version of the IT7900 series, starting at 21 kVA and up to 10 MVA via master-slave | No AC/DC electronic load function (sink mode) | Compact design, 21 kVA – 3U |
| IT7900P | Grid simulator with regenerative AC/DC load, starting at 5 kVA, max. 960 kVA via master-slave | Integrated regenerative load function with RLC load | 15 kVA in a 3U design, (5 kVA single-phase and 6 kVA and up, single- and three-phase) |
| IT7900EP | Advanced high-performance version of the IT7900P series, starting at 21 kVA and up to 10 MVA via master-slave | Integrated regenerative load function with RLC load | Compact design, 21 kVA in 3U |
Model Overview - all Models
| IT7900 regenerative grid simulator | |||||||
| Model | Voltage | Current | Power | Resolution | Accuracy | Interfaces | Size |
| IT79120-350-720 | 350 V | 720 A | 120 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | USB, CAN, LAN/Ethernet, digital-I/O-port, optional GPIB, optional analog, optional RS232 | 37U |
| IT79105-350-630 | 350 V | 630 A | 05 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 27U | |
| IT7990-350-540 | 350 V | 540 A | 90 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 27U | |
| IT7975-350-450 | 350 V | 450 A | 75 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 27U | |
| IT7960-350-360 | 350 V | 360 A | 60 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 27U | |
| IT7945-350-270 | 350 V | 270 A | 45 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 15U | |
| IT7930-350-180 | 350 V | 180 A | 30 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 6U | |
| IT7915-350-90 | 350 V | 90 A | 15 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 3U | |
| IT7912-350-90 | 350 V | 90 A | 12 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 3U | |
| IT7909-350-90 | 350 V | 90 A | 9 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 3U | |
| IT7906-350-90 | 350 V | 90 A | 6 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 3U | |
| IT7905-350-30U | 350 V | 30 A | 5 kVA | 0.01 V/0.01 A | <0.01% + 0.01% F.S./<0.3% + 0.3% F.S. | 3U | |
| IT79165-350-990 | 350 V | 990 A | 165 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 37U | |
| IT79150-350-900 | 350 V | 900 A | 150 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 37U | |
| IT79135-350-810 | 350 V | 810 A | 135 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 37U | |
| IT7900 regenerative grid simulator - high voltage | |||||||
| Model | Voltage | Current | Power | Resolution | Accuracy | Interfaces | Size |
| IT79270-700-270 | 700 V | 270 A | 270 kVA | 0.01 V/0.01 A | <0.1% + 0.2% F.S./<0.2% + 0.3% F.S. | USB, CAN, LAN/Ethernet, digital-I/O-port, optional GPIB, optional RS232 | 27U*3 |
| IT79180-700-180 | 700 V | 180 A | 180 kVA | 0.01 V/0.01 A | <0.1% + 0.2% F.S./<0.2% + 0.3% F.S. | 27U*2 | |
| IT7990-700-90 | 700 V | 90 A | 90 kVA | 0.01 V/0.01 A | <0.1% + 0.2% F.S./<0.2% + 0.3% F.S. | 27U | |
| IT79810-1050-540 | 1050 V | 540 A | 810 kVA | 0.1 V/0.01 A | <0.1% + 0.2% F.S./<0.2% + 0.3% F.S. | 37U*6 | |
| IT79675-1050-450 | 1050 V | 450 A | 675 kVA | 0.1 V/0.01 A | <0.1% + 0.2% F.S./<0.2% + 0.3% F.S. | 37U*5 | |
| IT79540-1050-360 | 1050 V | 360 A | 540 kVA | 0.1 V/0.01 A | <0.1% + 0.2% F.S./<0.2% + 0.3% F.S. | 37U*4 | |
| IT79405-1050-270 | 1050 V | 270 A | 405 kVA | 0.1 V/0.01 A | <0.1% + 0.2% F.S./<0.2% + 0.3% F.S. | 37U*3 | |
| IT79270-1050-180 | 1050 V | 180 A | 270 kVA | 0.1 V/0.01 A | <0.1% + 0.2% F.S./<0.2% + 0.3% F.S. | 37U*2 | |
| IT79135-1050-90 | 1050 V | 90 A | 135 kVA | 0.1 V/0.01 A | <0.1% + 0.2% F.S./<0.2% + 0.3% F.S. | 37U | |
| IT79900-700-900 | 700 V | 900 A | 900 kVA | 0.01 V/0.01 A | <0.1% + 0.2% F.S./<0.2% + 0.3% F.S. | 27U*10 | |
| IT79810-700-810 | 700 V | 810 A | 810 kVA | 0.01 V/0.01 A | <0.1% + 0.2% F.S./<0.2% + 0.3% F.S. | 27U*9 | |
| IT79720-700-720 | 700 V | 720 A | 720 kVA | 0.01 V/0.01 A | <0.1% + 0.2% F.S./<0.2% + 0.3% F.S. | 27U*8 | |
| IT79630-700-630 | 700 V | 630 A | 630 kVA | 0.01 V/0.01 A | <0.1% + 0.2% F.S./<0.2% + 0.3% F.S. | 27U*7 | |
| IT79540-700-540 | 700 V | 540 A | 540 kVA | 0.01 V/0.01 A | <0.1% + 0.2% F.S./<0.2% + 0.3% F.S. | 27U*6 | |
| IT79450-700-450 | 700 V | 450 A | 450 kVA | 0.01 V/0.01 A | <0.1% + 0.2% F.S./<0.2% + 0.3% F.S. | 27U*5 | |
| IT79360-700-360 | 700 V | 360 A | 360 kVA | 0.01 V/0.01 A | <0.1% + 0.2% F.S./<0.2% + 0.3% F.S. | 27U*4 | |
| IT7900 regenerative grid simulator - E-series | |||||||
| Model | Voltage | Current | Power | Resolution | Accuracy | Interfaces | Size |
| IT79126E-350-630 | 350 V | 630 A | 126 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | USB, CAN, LAN/Ethernet, digital-I/O-port optional GPIB, optional analog, optional RS232 | 27U |
| IT79105E-350-525 | 350 V | 525 A | 105 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | 27U | |
| IT7984E-350-420 | 350 V | 420 A | 84 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | 27U | |
| IT7963E-350-315 | 350 V | 315 A | 63 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | 15U | |
| IT7942E-350-210 | 350 V | 210 A | 42 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | 6U | |
| IT7921E-350-105 | 350 V | 105 A | 21 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | 3U | |
| IT7900 regenerative grid simulator - EP-series | |||||||
| Model | Voltage | Current | Power | Resolution | Accuracy | Interfaces | Size |
| IT79105EP-350-525 | 350 V | 525 A | 105 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | USB, CAN, LAN/Ethernet, digital-I/O-port, optional GPIB, optional analog, optional RS232 | 27U |
| IT7984EP-350-420 | 350 V | 420 A | 84 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | 27U | |
| IT7963EP-350-315 | 350 V | 315 A | 63 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | 15U | |
| IT7942EP-350-210 | 350 V | 210 A | 42 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | 6U | |
| IT7921EP-350-105 | 350 V | 105 A | 21 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | 3U | |
| IT79126EP-350-630 | 350 V | 630 A | 126 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | 27U | |
| IT7900 regenerative grid simulator - P-series | |||||||
| Model | Voltage | Current | Power | Resolution | Accuracy | Interfaces | Size |
| IT7915P-350-90 | 350 V | 90 A | 15 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | USB, CAN, LAN/Ethernet, digital-I/O-port, optional GPIB, optional analog, optional RS232 | 3U |
| IT7912P-350-90 | 350 V | 90 A | 12 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | 3U | |
| IT7909P-350-90 | 350 V | 90 A | 9 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | 3U | |
| IT7906P-350-90 | 350 V | 90 A | 6 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | 3U | |
| IT7905P-350-30U | 350 V | 30 A | 5 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | 3U | |
| IT79165P-350-990 | 350 V | 990 A | 165 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 37U | |
| IT79150P-350-900 | 350 V | 900 A | 150 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 37U | |
| IT79135P-350-810 | 350 V | 810 A | 135 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 37U | |
| IT79120P-350-720 | 350 V | 720 A | 120 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 37U | |
| IT79105P-350-630 | 350 V | 630 A | 105 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 27U | |
| IT7990P-350-540 | 350 V | 540 A | 90 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.3% + 0.3% F.S. | 27U | |
| IT7975P-350-450 | 350 V | 450 A | 75 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | 27U | |
| IT7960P-350-360 | 350 V | 360 A | 60 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | 27U | |
| IT7945P-350-270 | 350 V | 270 A | 45 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | 15U | |
| IT7930P-350-180 | 350 V | 180 A | 30 kVA | 0.01 V/0.01 A | <0.1% + 0.1% F.S./<0.1% + 0.2% F.S. | 6U | |
