Keysight N28xx Series Passive Probes

The Keysight N284x and N287x series includes passive probes for use with Keysight InfiniiVision oscilloscopes, for example.

Model Overview

Model	Cable length	Attenuation	Typical probe bandwidth	Compensates oscilloscope input	Max. input voltage	Recommended oscilloscopes (examples)

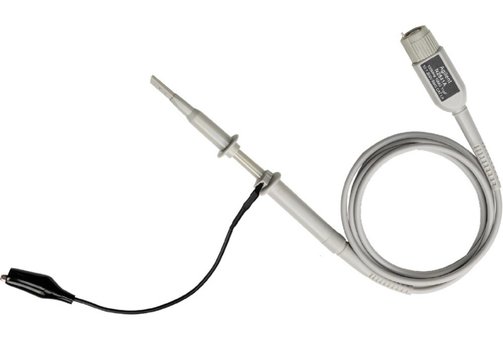

N2840A	1.2 m	10:1	50 MHz	1 MΩ, 5...30 pF (10 MΩ/15 pF)	300 V_RMS/>400 V_pk CAT I and CAT II; rise time 7 ns

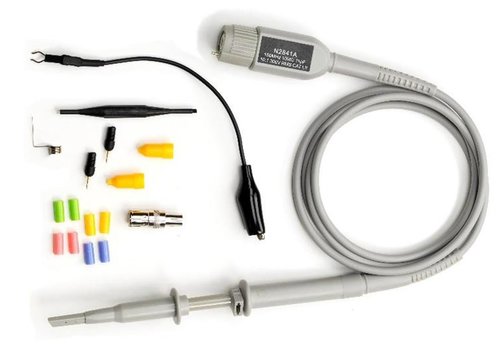

N2841A	1.2 m	10:1	150 MHz	1 MΩ, 5...30 pF (10 MΩ/15 pF)	300 V_RMS/>400 V_pk CAT I and CAT II; rise time 2.33 ns	2000 X, 3000 X
N2842A	1.2 m	10:1	300 MHz	1 MΩ, 5...30 pF (10 MΩ/11 pF)	3300 V_RMS/>400 V_pk CAT I and CAT II; rise time 1.16 ns	2000 X, 3000 X
N2843A	1.2 m	10:1	500 MHz	1 MΩ, 5...30 pF (10 MΩ/15 pF)	300 V_RMS/>400 V_pk CAT I and CAT II; rise time 700 ps	2000 X, 3000 X, 4000 X, 6000 X, S-Serie

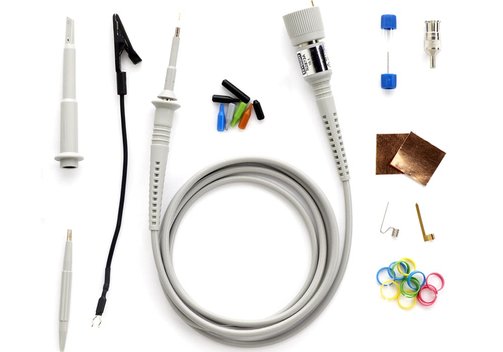

N2870A	1.3 m	1:1	35 MHz	1 MΩ	55 V CAT II	2000 X, 3000 X, 4000 X, 6000 X, S-Serie
N2871A	1.3 m	10:1	200 MHz	1 MΩ, 10...25 pF	300 V CAT II	2000 X, 3000 X, 4000 X, 6000 X, S-Serie
N2872A	1.3 m	10:1	350 MHz	1 MΩ, 10...25 pF	300 V CAT II	2000 X, 3000 X, 4000 X, 6000 X, S-Serie
N2873A	1.3 m	10:1	500 MHz	1 MΩ, 10...25 pF	300 V CAT II	2000 X, 3000 X, 4000 X, 6000 X, S-Serie
N2874A	1.3 m	10:1	1.5 GHz	50 Ω	8.5 V CAT I	4000 X, 6000 X und alle Infiniium-Serien
N2875A	1.3 m	20:1	500 MHz	1 MΩ, 7...20 pF	300 V CAT II	2000 X, 3000 X, 4000 X, 6000 X
N2876A	1.3 m	100:1	1.5 GHz	50 Ω	21 V mains isolated	4000 X, 6000 X und alle Infiniium-Serien

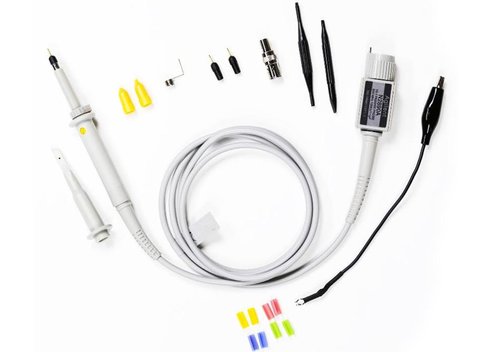

N2889A	1.3 m	1:1/10:1	350 MHz (10 MHz at 1:1)	1 MΩ, 5...30 pF (10:1 10 MΩ/11 pf, 1:1 1 MΩ/60 pF)	300 V_RMS/>400 V_pk CAT I/II (10:1), 150 V_RMS CAT I/II (1:1)	2000 X, 3000 X, 4000 X, 6000 X
N2890L	1.3 m	10:1	500 MHz	1 MΩ, 5...30 pF	300 V CAT II	2000 X, 3000 X, 4000 X, 6000 X

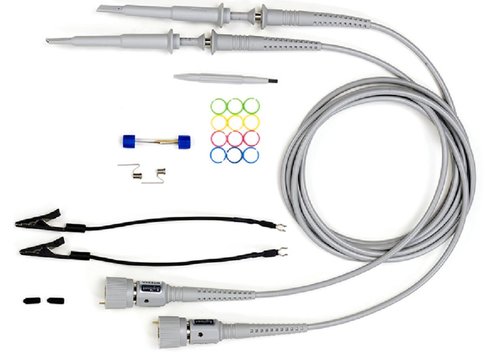

N2894A	1.3 m	10:1	700 MHz	1 MΩ, 10...25 pF (10 MΩ/9.5 pF)	300 V CAT II	4000 X and 6000 X

Information on product safety:

Manufacturer:
Keysight, 1400 Fountaingrove Parkway, Santa Rosa, CA/USA
www.keysight.com
(Keysight Technologies Deutschland GmbH)
