Keysight N9355 Series with Operating Frequency 0.01 to 18, 26.5, 50, or 54 GHz
The Keysight N9355 series power limiters protect your investment from excess RF power, DC transient and ESD. They provide very low insertion loss to signals with amplitude below the limiting threshold and very high loss to signals which exceed the limiting threshold. They are bidirectional and possess very fast response time, providing protection within nanoseconds of the arrival of a damaging signal.
Model Overview
| Model | Description |
| N9355B | Power limiter; 0.01...18 GHz; insertion loss <1.75 dB; turn-on time <100 ps; limiting threshold typ. 10 dBm |

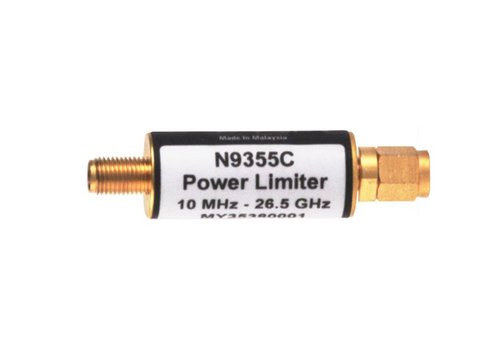

| N9355C* | Power limiter; 0.01...26.5 GHz; insertion loss <2 dB; turn-on time <100 ps; limiting threshold typ. 10 dBm |
| N9355F | Power limiter; 0.01...50 GHz; insertion loss <2.75 dB (40 GHz)/<3.5 dB (50 GHz); turn-on time <100 ps; limiting threshold typ. 10 dBm |

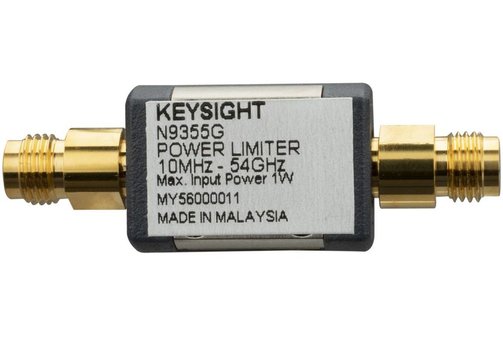

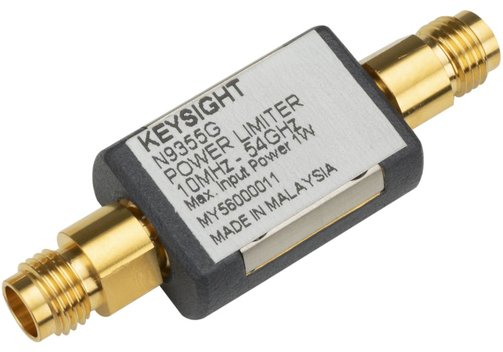

| N9355G | Power limiter; 0.01...54 GHz; insertion loss between <2.75 dB (10...30 MHz) and <6.0 dB (50...54 GHz); limiting threshold 23 dBm |

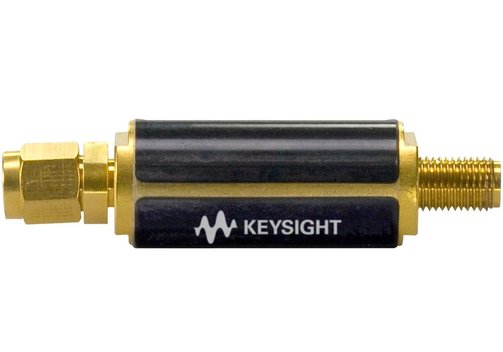

* Version 9355CK01 DC coupled limiter for overload and ESD protection.
