Keysight PP000xA Series Hi-Z+ Passive Probing System
Description
Files/Downloads
Keysight PP0001A, PP0002A, PP0003A Passive Probes up to 1 GHz
With a small probe head, rugged and replaceable tips, automatic probe identification and attenuation, high voltage ranges and high input impedances with low capacitance – this family of probes is truly the best of passive probes and active probes in one.
Model Overview
| Model | Bandwidth | Input voltage | Input impedance | Tip type |

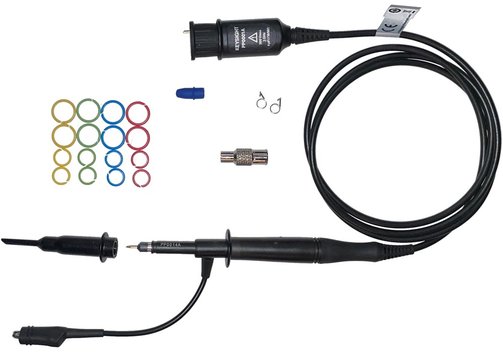

| PP0001A | 1 GHz | 300 V CAT II | 10 MΩ || 4.0 pF | 5 mm tip |
| PP0002A | 800 MHz | 1200 V CAT II | 40 MΩ || 2.0 pF | 5 mm tip |

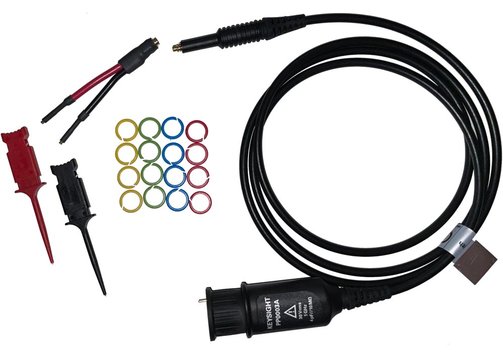

| PP0003A | 1 GHz | 30 V CAT II | 10 MΩ || 4.0 pF | MMCX Connector |

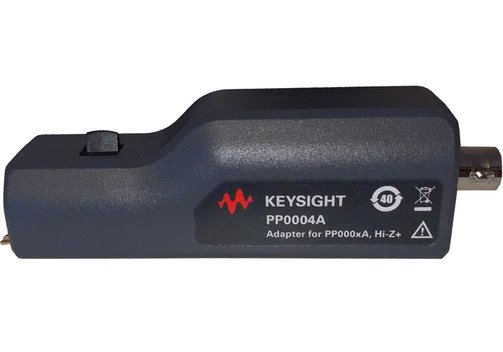

| PP0004A | Adaptor for PP001A, PP0002A, PP0003A | |||
| Accessories | ||||
| PP0011A | for PP0001A | Channel identification rings (4 each, in 4 colors); grabber hook tip; ground clip; ground spring (x2); BNC to probe tip adaptor | ||
| PP0014A | Probe tip cartridge, 300 V rating; protective tip covers (x2) | |||
| PP0004A | Adaptor required for PP0001A, PP0002A, PP0003A | |||
| PP0011A | for PP0002A | Channel identification rings (4 each, in 4 colors); grabber hook tip; ground clip; ground spring (x2); BNC to probe tip adaptor | ||
| PP0018A | Probe tip cartridge, 1200 V rating; protective tip covers (x2) | |||
| PP0004A | Adaptor required for PP0001A, PP0002A, PP0003A | |||
| PP0013A | for PP0003A | Channel identification rings (4 each, in 4 colors); red and black mini grabbers; MMCX to 0.025" square pin adaptor | ||
| PP0004A | Adaptor required for PP0001A, PP0002A, PP0003A | |||
| PP0017A | for PP0001A only | Probe tip to 0.025" square pin adaptor, 30 V rating (x2), PCB to probe tip adaptor, 300 V rating (x2) | ||
| PP0019A | for PP0002A only | Probe tip to 0.025" square pin adaptor, 30 V rating (x2), PCB to probe tip adaptor, 1200 V rating (x2) | ||
