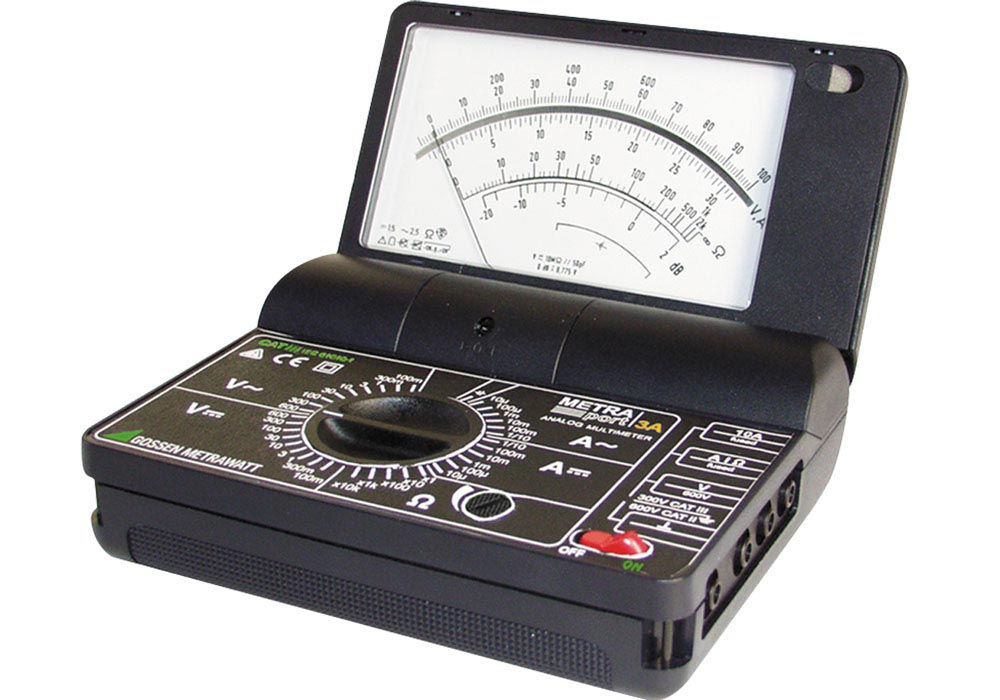

Gossen Metrawatt METRAport 3A Folding Analog Multimeter

METRAport 3A (M113A) folding analog multimeter
811,58
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Item available at short notice. Delivery Time ~3-10 workdays
Item available at short notice. Delivery Time ~3-10 workdays
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

Benefits of the METRAport 3A (M113A) Folding Analog Multimeter for High Performance Applications

  • Classic analog pointer display.
  • 52 measurement ranges.
  • Rugged, ideal for process engineering, testing, R&D, service.

Gossen Metrawatt METRAport 3A Folding Analog Multimeter

Gossen Metrawatt METRAport 3A (M113A) universal folding multimeter with analog display and 52 measuring ranges for use in process engineering, electronics and electrical engineering, the testing laboratory, R&D, service and training in accordance with EN 31010-1/VDE 0411 part 1.

  • CAT III, IP40.
  • For the measurement of voltage, current, resistance and level.
  • With mirror-backed scale, accuracy class 1.5.
  • 10 MΩ internal resistance for load-free voltage measurement.
  • Automatic battery shut-down when instrument is folded together.
  • Scale can be tilted with folding lid which also provides protection during transport.
  • 250 VAC overload protection in all ranges (except 10 A range).
  • Voltage measurement: direct and alternating voltage
    100 mV, 300 mV, 1 V, 3 V, 10 V, 30 V, 100 V, 300 V, 600 V.
  • Level measurement: in 9 measuring ranges -40...+62 dB.
  • Current measurement: direct and alternating current in 7 measuring ranges
    10 µA, 100 µA, 1 mA, 10 mA, 100 mA, 1 A, 10 A.
  • Resistance measurement: 5 measuring ranges
    1 Ω...2 kΩ, 10 Ω...20 kΩ, 100 Ω...200 kΩ, 1 kΩ...2 MΩ, 10 kΩ...20 MΩ
  • Power supply: 9 V battery per IEC6F2 (commercially available) with 1000 h service life.
  • Standard equipment included: Measuring instrument, cable set KS17-2, battery carry strap and operating instructions.
