ClampMan Standard - Innovative Holding Fixture for PCBs and Component Modules

ClampMan Standard - Innovative Holding Fixture for PCBs and Component Modules
additional images:
Price

1.190,00*
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
Description

Benefits

  • The standard ClampMan: Solid holding fixture for PCBs for measurement/test, soldering, repair, thermal imaging.
  • Can also be used for energized PCBs.
  • Rugged design with hydraulic joint stands - multiple degrees of freedom.

"Additional Hands" - Innovative Holding Fixture for Printed Circuit Boards/Component Modules.

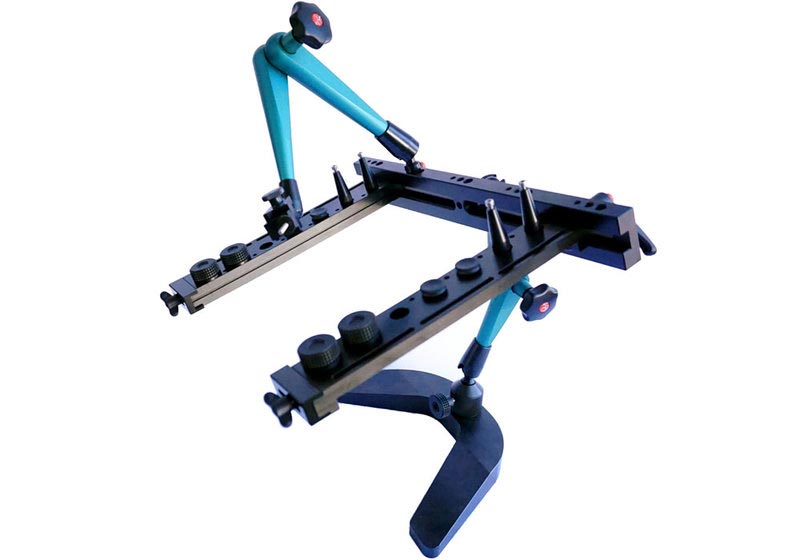

Didn't you often wish to have at least two additional hands to hold PCBs or electronic modules for the process of measurement, test, soldering or documentary pictures with a thermal camera? ClampMan is the perfect solution. In the "Standard" version with a solid, heavy foot, the basic stand arm, the complete fixture frame and a hydaulic arm with probe holder. And it's os easy to use: Open star grip knob at the hydraulic arm, bring arm into desired position, fix star grip knob - done!

  • Flexible design, use to hold various shapes and formats of PCBs in a high variety of different ways.
  • Designed to also clamp energized PCBs for safe measurements from both sides.
  • Just like "additional hands": Enables the fixing of PCBs in many different positions with multiple degrees of freedom.
  • High quality, rugged design with hydraulic joint stands and precise fixture.
  • Expand with additional fixtures according to your application.

For All Your Measurement Tasks...

...ClampMan Will Hold Your PCBs/DUTs!

Model Overview

Ordering code Description
CLM-1001 ClampMan Standard ClampMan basic unit with 1 stand arm size 400 with probe holder and complete fixture-set
CLM-1002 ClampMan Full ClampMan basic unit with 2 stand arms size 400 with probe holders and complete fixture-set
CLM-1060 ClampMan Light Round foot with 1 stand arm size 400 and vice
CLM-1050 ClampMan Probe Round foot with 1 stand arm size 400 and probe holder
