ME-AB-D78 Terminal Blocks for 78-pin D-Sub
Description
Files/Downloads
78-pin Terminal Blocks for ME Series and others.
Reliable, robust connectivity for DAQ/control/interface boards with 78-pin D-sub. Models with terminal stripes or BNC, DIN-rail mountable, wall-mountable or as a desktop box. For permanent or variabel connectivity.
- Models with pluggable terminal stripes: Easy to configure. Good solution for permanent as well as flexible connectivity for quick changes.
- Models with prototyping/"breadboard" area for user circuitry, eg. analog signal-conditioning.
- Models with reliable BNC for analog inputs and outputs.
- DIN-rail mountable card carrier or robust metal boxes for desktop or wallmountable.
Model Overview - select the desired model with "Quantity/Model"!
| Model | Connectors | For... |
| For 78-pin D-sub | ||
| ME AB-D78M | 78-pin D-sub male connector to integral terminal stripes, DIN-rail mountable | All models with 78-pin D-sub, versions PCI-Express, PCI, CompactPCI/PXI: ME-8100, ME-6100, ME-6000 ME-5810, ME-5100, ME-4680, ME-4670, ME-4660,ME-4610, ME-1600, ME-1400, ME-1000, ME-630 and others |

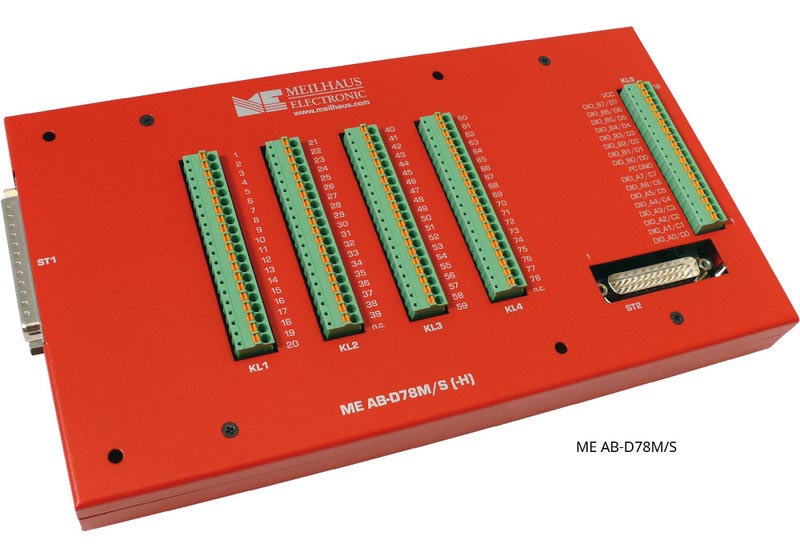

| ME AB-D78M/S | 78-pin D-sub male connector to pluggable terminal stripes, metal box | |

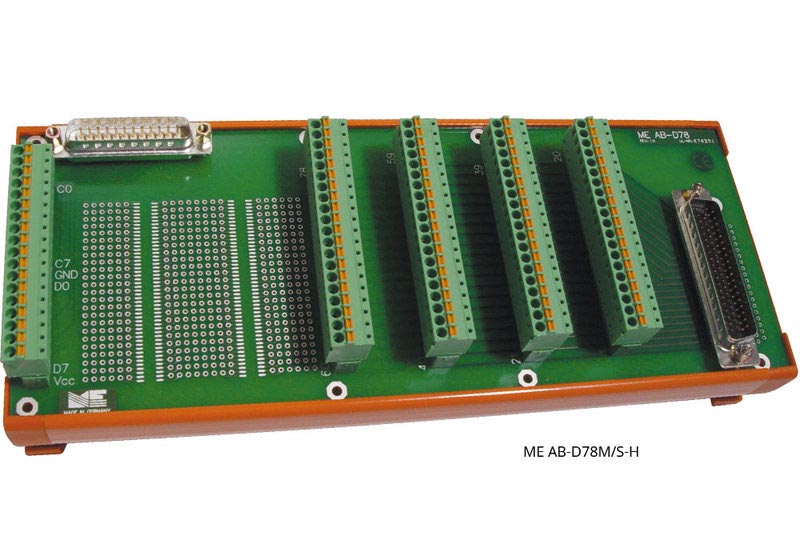

| ME AB-D78M/S-H | 78-pin D-sub male connector to pluggable terminal stripes, DIN-rail mountable | |

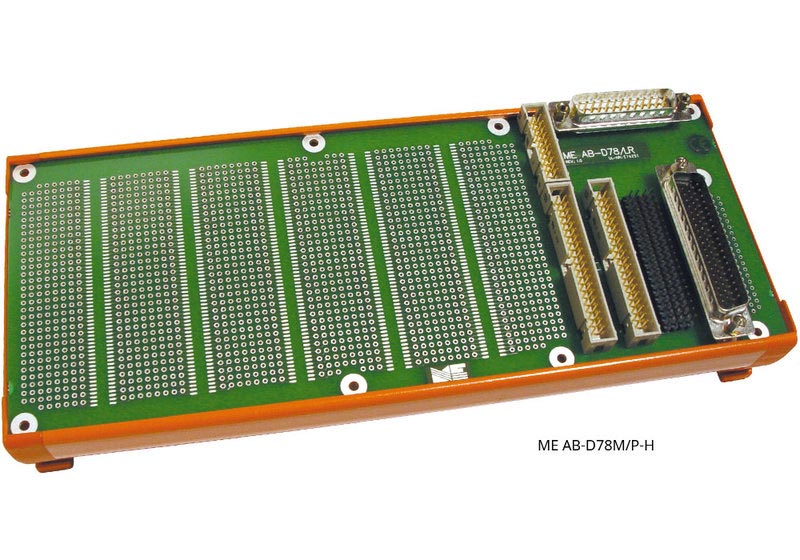

| ME AB-D78M/P-H | 78-pin D-sub male connector to prototyping/"breadboard" area and IDC | |

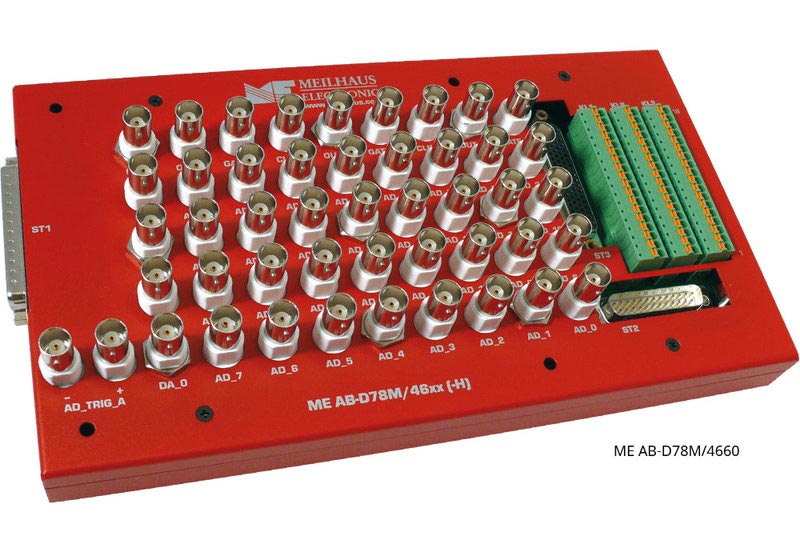

| ME AB-D78M/4660 | 78-pin D-sub male connector to pluggable terminal stripes and BNC, metal box | ME-4660, ME-4610 |

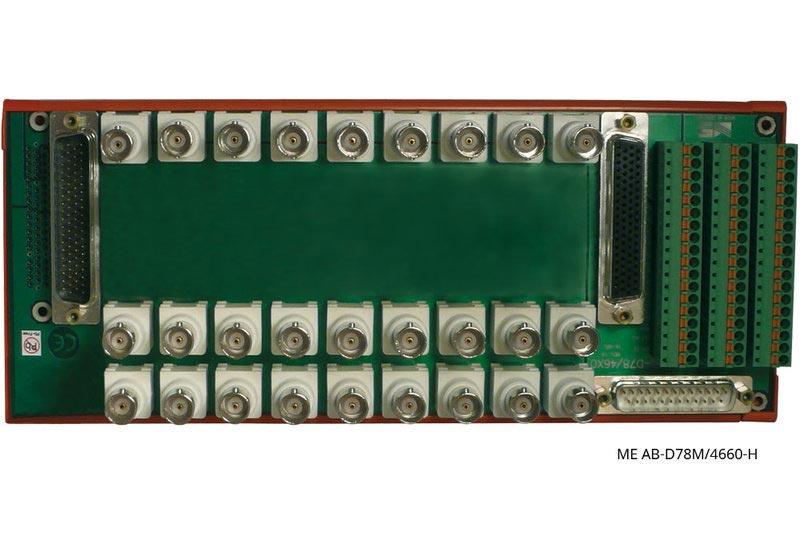

| ME AB-D78M/4660-H | 78-pin D-sub male connector to pluggable terminal stripes and BNC, DIN-rail mountable | |
| ME AB-D78M/4000 | 78-pin D-sub male connector to pluggable terminal stripes and BNC, metal box | ME-4680, ME-4670 (can also be used withME-4660, ME-4610) |

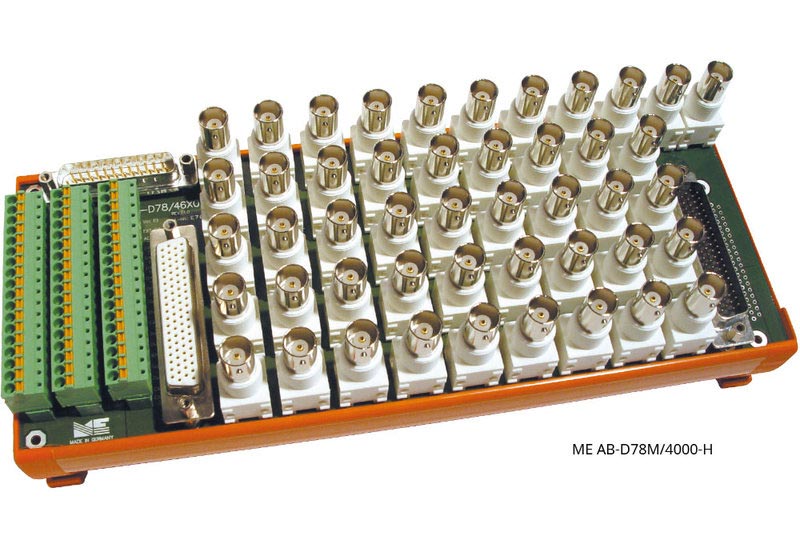

| ME AB-D78M/4000-H | 78-pin D-sub male connector to pluggable terminal stripes and BNC, DIN-rail mountable | |

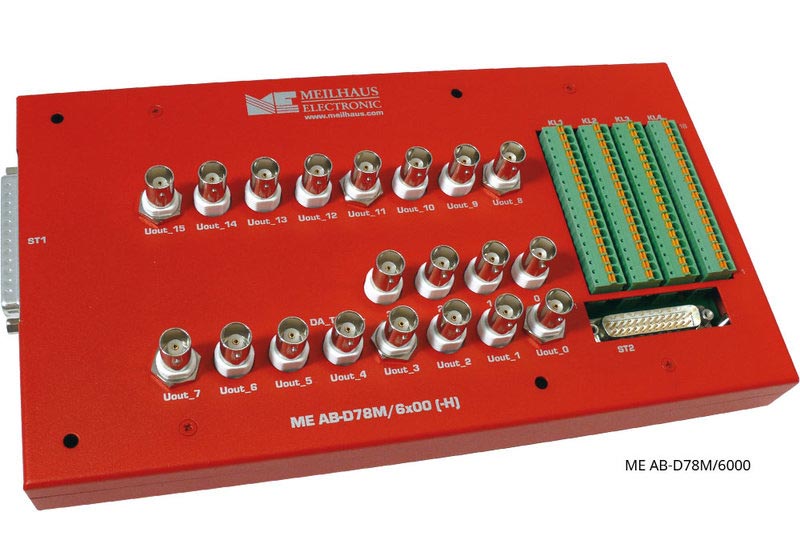

| ME AB-D78M/6000 | 78-pin D-sub male connector to pluggable terminal stripes and BNC, metal box | ME-6100, ME-6000 |

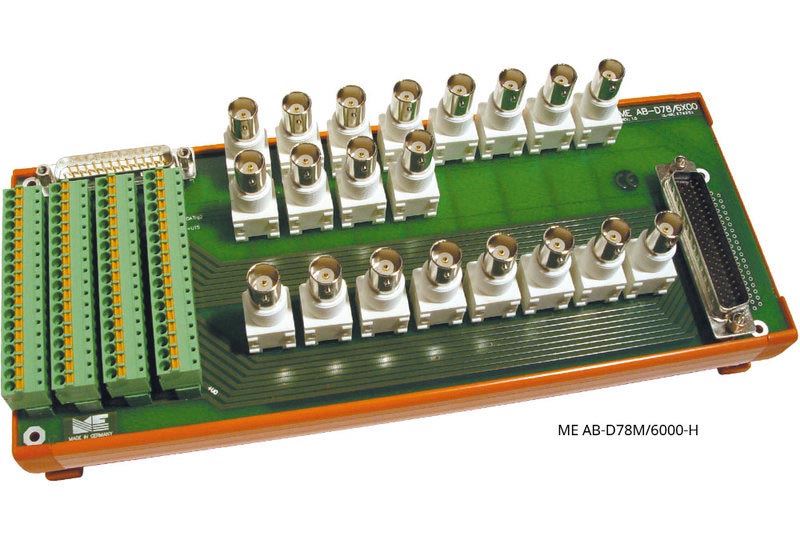

| ME AB-D78M/6000-H | 78-pin D-sub male connector to pluggable terminal stripes and BNC, DIN-rail mountable | |

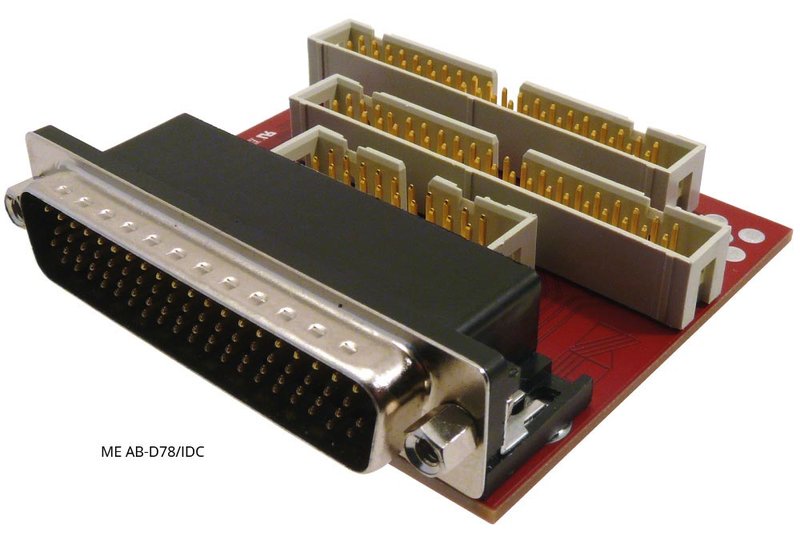

| ME AB-D78/IDC | 78-pin D-sub male to IDC, directly plugged on to board's connector | ME-5100 |
