ME AK-D78

ME AK-D78/2
additional images:
Price
starting 65,00*
starting € 77,35 brutto
* excluding VAT plus shipping
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Description

78-pin cables for ME series boards

In DAQ applications special attention has to be payed to the connectivity's reliability and noise immunity. In many cases noise and errors have their origin in this place! Only use tried and tested high-quality cable and terminal blocks from Meilhaus Electronic: For high precision and clear structures in your measurement and control system.

  • For use with products with 78-pin D-sub connectors, eg. ME series DAQ and control boards.
  • Ideal solution for industry and labs.
  • Shielded high-quality cables, available as:
    • Standard cable with sealed plastic housing.
    • HQ models with 2 cable harnesses and higher wire diameter 40x 0.25 mm2, current load up to max. 1.4 A per wire (load on 20 wires: 2 A), metal hosing. Recommended for use with ME-630 and ME-8200 series for applications with higher currents over 0.5 A/wire.
  • 1:1 contacted with combination of male-female connector for 78-pin D-sub.

Model Overview

Model Length ~ Connectors For boards...
ME AK-D78/0.6 0,6 m 78-pin D-sub male 78-pin D-sub female ...with 78-pin D-sub connector, eg.
ME-8100, ME-6x00, ME-FoXX/ME-46x0,
ME-Jekyll/ME-4610, ME-1600, ME-1400,
ME-1000, ME-630 and others

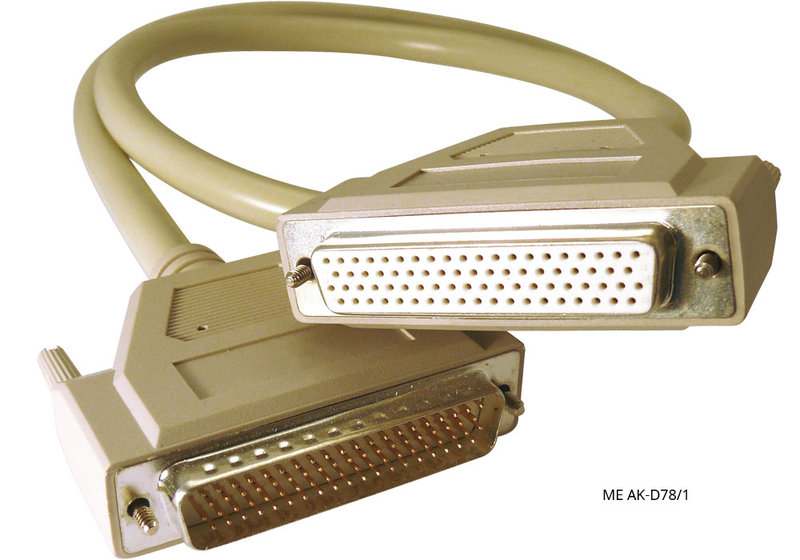

ME AK-D78/1 1 m 78-pin D-sub male 78-pin D-sub female

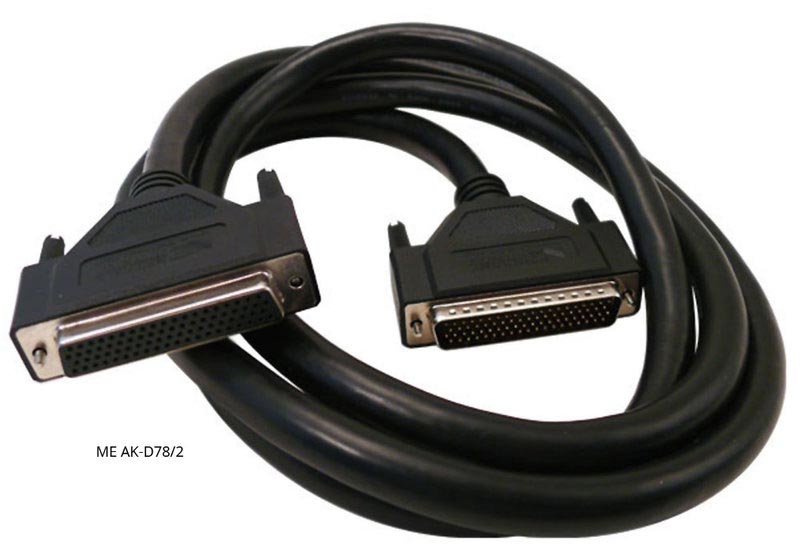

ME AK-D78/2 2 m 78-pin D-sub male 78-pin D-sub female
ME AK-D78/3 3 m 78-pin D-sub male 78-pin D-sub female
ME AK-D78/4 4 m 78-pin D-sub male 78-pin D-sub female
ME AK-D78/5 5 m 78-pin D-sub male 78-pin D-sub female

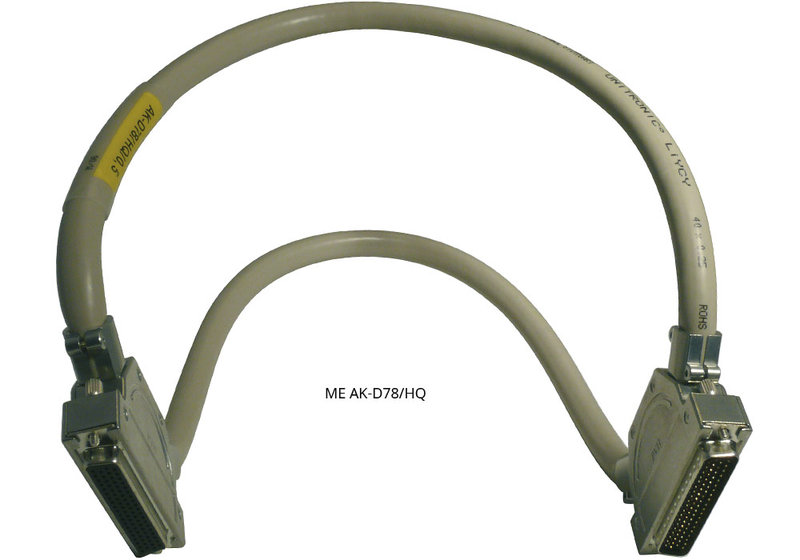

ME AK-D78/HQ/1 1 m 78-pin D-sub male 78-pin D-sub female If a higher wire diameter is required, eg. ME-630
ME AK-D78/HQ/2 2 m 78-pin D-sub male 78-pin D-sub female

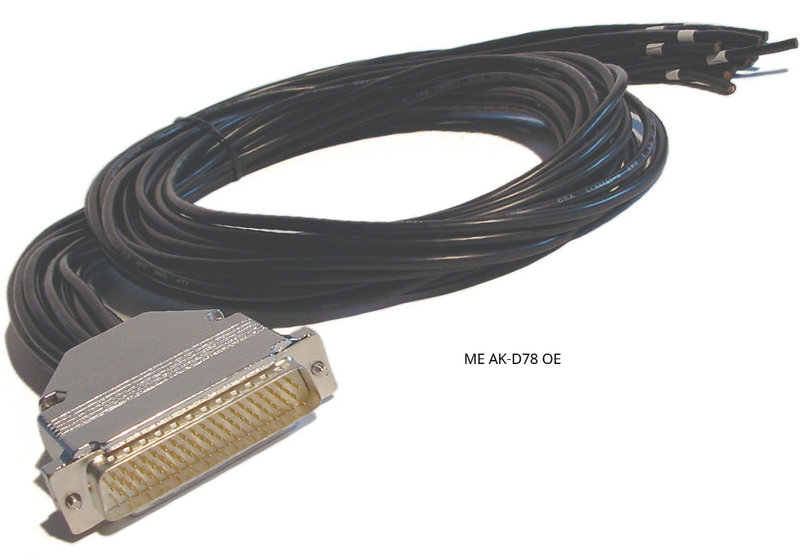

ME AK-D78/HQ-OE-1 1 m 78-pin D-sub male Open wires

The cables available in the shop are standard products. Other cables/lengths are produced only, if ordered in higher numbers.
