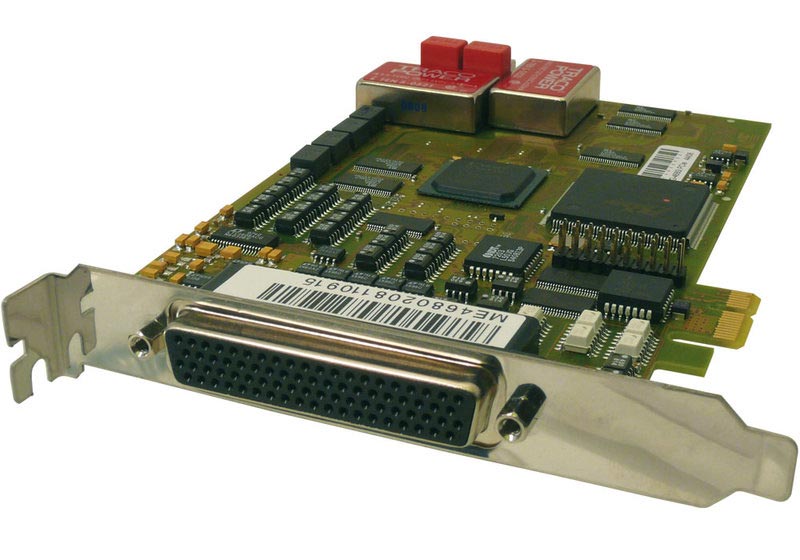

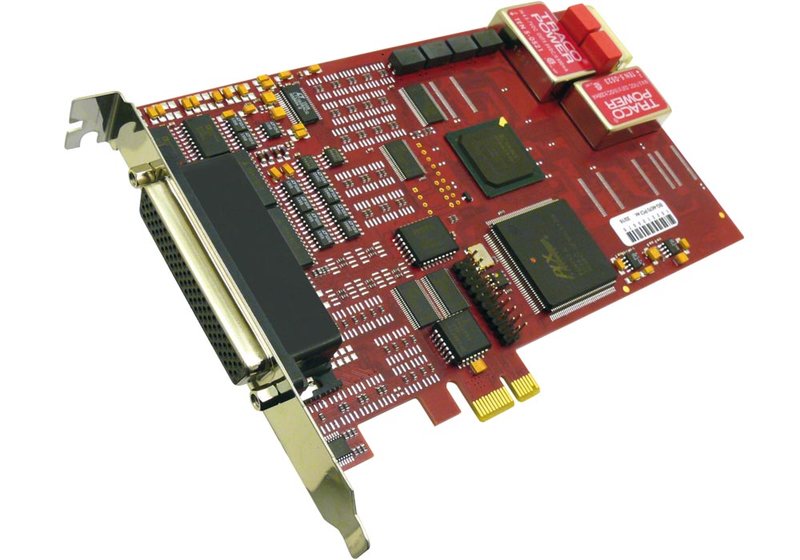

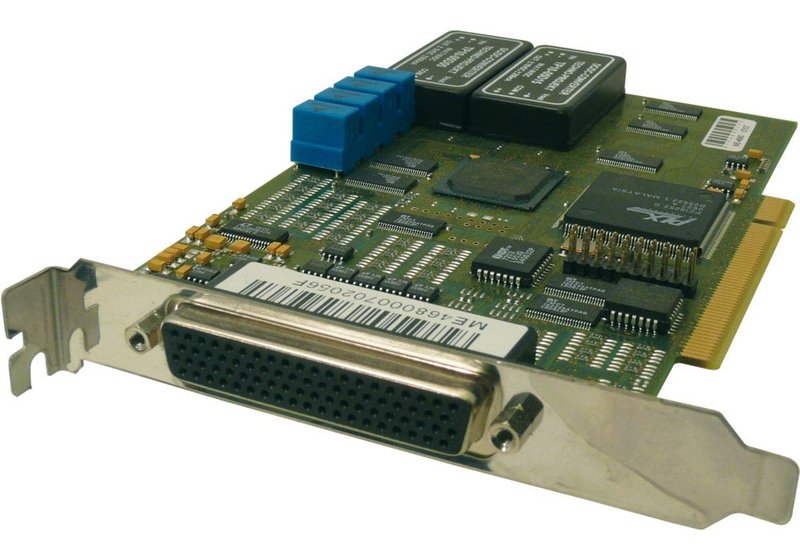

ME-SlyFoXX ME-4670 16 bit Isolated Analog DAQ Board, Advanced

Advanced DAQ board ME-4670 PCI, PCI-Express, CompactPCI/PXI
additional images:
Price
starting 1.198,00*
starting € 1.425,62 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Description

Benefits

  • Multifunctional allround DAQ board with differential channels.
  • Models with isolated analog input channels.
  • English and German user manual.

Solid, High Precision 16 bit Universal DAQ Board - Allround Model.

The ME-SlyFoXX is the allround model from the ME-FoXX PC plug-in board series. It offers the optimum value for money for most applications. Compared to the "smaller" models it has 2 additional analog outputs, selectable single-ended or differential analog inputs and an external analog trigger.

  • Reliable, precise DAQ board for measurement data acquisition and control.
  • 32 single-ended/16 differential analog inputs.
    Range ±10 V, ±2.5 V, 0...+10 V, 0...+2.5 V.
  • High precision 16 bit/max. 300 kHz A/D conversion (PC-dependent; reduced in certain modes, PCIe version: 250 kHz; with ME-Synapse USB: 20...25 kHz). External digital and analog trigger.
  • 4 analog voltage outputs.
    Range ±10 V.
  • 16 bit D/A conversion.
    External digital trigger.
  • 32 TTL digital-I/O channels, organized as 4x 8 bit ports. Each port- programmable as input or output, or on models "i": 8 opto-inputs, 8 opto-outputs and 2x 8 TTL I/Os.
  • 3x 16 bit counters. All lines wired to connector.
  • Models "i": A/D and D/A section, counter and 16 of the digital lines opto-isolated up to 500 V.
  • PC DAQ board for PCI, PCI-Express or 3 U CompactPCI/PXI.
  • Special versions "f"/FIO:

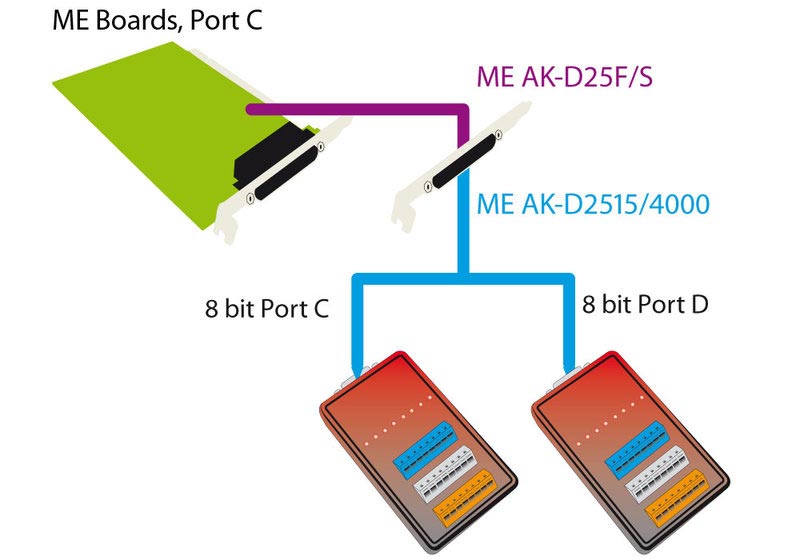

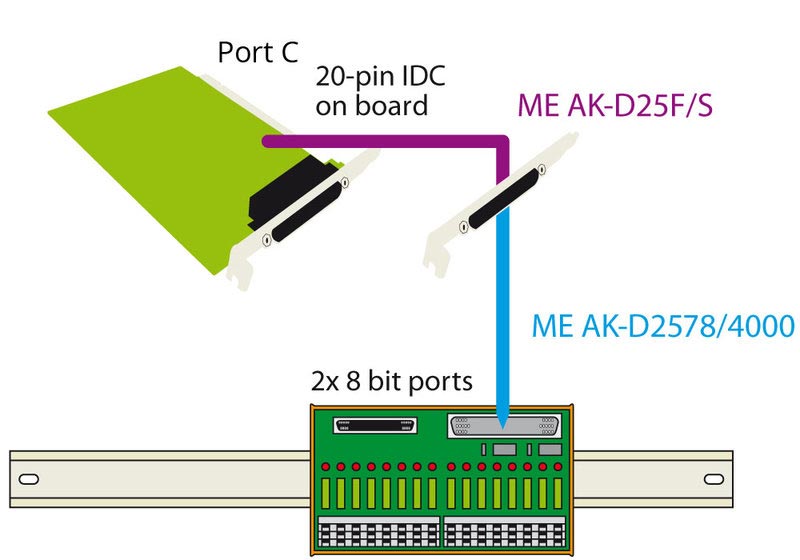

    Two of the four 8 bit TTL ports (port C/D, pin-field/additional slot bracket ME AK-D25F/S) are replaced by:
    • Frequency counter: 4 independent TTL inputs for measurement of frequency and duty cycle of periodic square signals (max. 8.25 MHz).
    • Impuls generator: 4 independent TLL outputs for a periodic square signal up to 8.25 MHz with variable duty cycle.

Model Overview

Model Analog inputs Analog outputs Digital-I/O Counter Opto-isolation Bus platform
» ME-4610 (ME-Jekyll) - Analog DAQ PC-Board, Economy Model
» ME-4660 (ME-RedFoXX) - Analog Multifunctional PC Board, Basic Model
ME-4670 (ME-SlyFoXX) - Analog Multifunctional PC Board, Enhanced Model:
ME-4670 PCIe 32 single-ended/16 differential,
±10 V, ±2.5 V, 0...+10 V, 0...+2.5 V,
16 bit/max. 250 kHz (PCIe), 300 kHz (PCI/cPCI, PC-dependent)
4,
±10 V,
16 bit/rate depending on system
2x 16 (TTL) 3 (16 bit) - PCI-Express
ME-4670 PCI StandardPCI
ME-4670 cPCI 3 U CompactPCI
ME-4670f PCIe 32 single-ended/16 differential,
±10 V, ±2.5 V, 0...+10 V, 0...+2.5 V,
16 bit/max. 250 kHz (PCIe), 300 kHz (PCI/cPCI, PC-dependent)
4,
±10 V,
16 bit/rate depending on system
16 (TTL),
4 frequency counter input,
4 impulse generator output
3 (16 bit) - PCI-Express
ME-4670f PCI StandardPCI
ME-4670f cPCI 3 U CompactPCI
ME-4670 PCIe 32 single-ended/16 differential,
±10 V, ±2.5 V, 0...+10 V, 0...+2.5 V,
16 bit/max. 250 kHz (PCIe), 300 kHz (PCI/cPCI, PC-dependent)
4,
±10 V,
16 bit/rate depending on system
16 (TTL),
8 opto-in,
8 opto-out
3 (16 bit) yes* PCI-Express
ME-4670i PCI StandardPCI
ME-4670i cPCI 3 U CompactPCI
» ME-4680 (ME-SylverFoXX) - Analog Multifunctional PC Board, Top Model

* Opto-isolation of the analog section, digital trigger lines, counter lines and part of the digital-I/O lines.
The models available in the shop are standard products. Other models are produced only, if ordered in higher numbers.

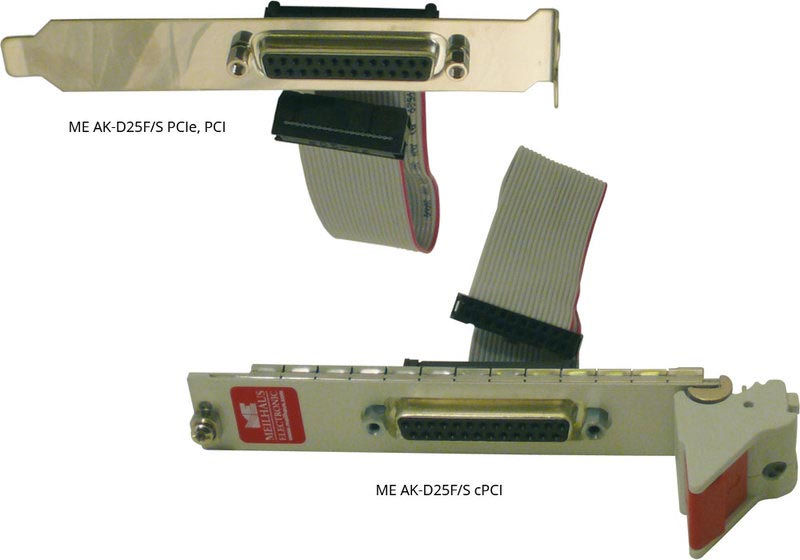

Included: Board, ME-Power-DVD with software and PDF manual, ME AK-D25F/S, 78- and 25-pin mating plug.
Software: Driver system ME-iDS for Windows, ME-PowerLab3
