ME AK-D78/1000

Special cable ME AK-D78/1000
additional images:
Price
179,00*
€ 213,01 brutto
* excluding VAT plus shipping
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Delivery Time ~2-3 weeks
Description

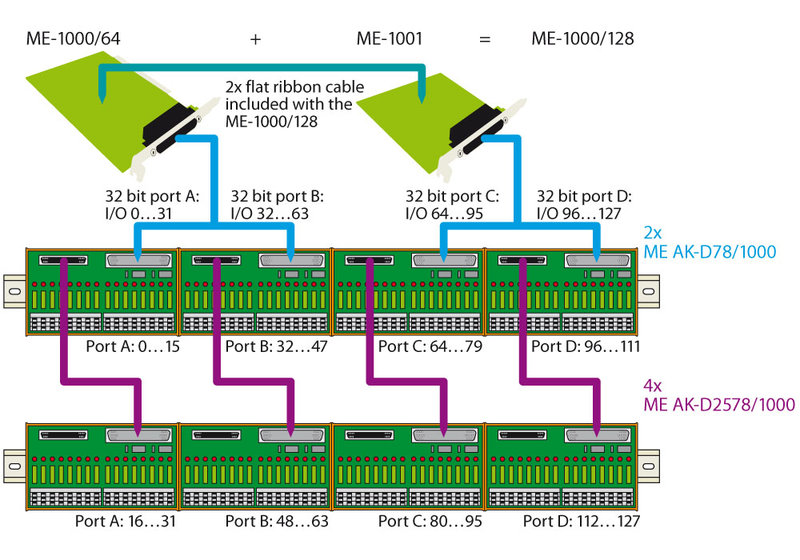

These special cables connect the expansion modules ME-631, ME-632, ME-633, ME-635* to a TTL digital-I/O board of the ME-1000 series: The cable ME AK-D78/1000 connects 2 ME-63Xtend* to a ME-1000/64; 2 cables ME AK-D78/1000 connect 4 ME-63Xtend* to a ME-1000/128.

Model Overview

Model Connector 1 Connector 2 Application

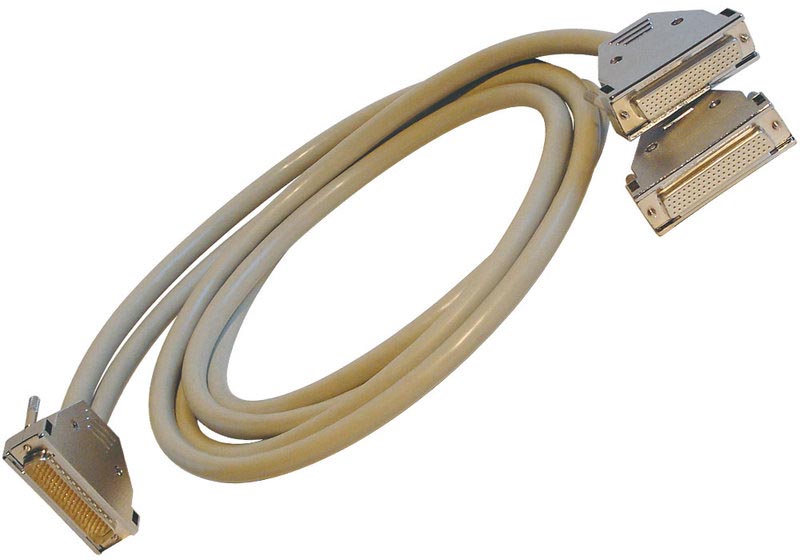

ME AK-D78/1000 1x 78-pin D-sub male 2x 78-pin D-sub female 2x ME-63Xtend (ME-631, ME-632, ME-633, ME-635*) to ME-1000/64 (2 cables required for ME-1000/128)
ME AK-D2578/1000 25-pin D-sub male 78-pin D-sub female One single additional ME-63Xtend (ME-631, ME-632, ME-633, ME-635*) to ME-63Xtend to ME-1000 (4 cables required for maximum system with ME-1000/128)

* The model ME-634 can NOT be used with the ME-1000!

Accessories, options
Query on the Item?
Do you have any questions on this item? Do you want to be updated with information on availability?
Don't forget to quote your name, company and phone number, so we can quickly reach you, if there are any questions from our side!
Your E-mail Adress
Name, company, phone, your question:
Tell a friend
Description
Accessories, options
Query on the Item?
Tell a friend

These special cables connect the expansion modules ME-631, ME-632, ME-633, ME-635* to a TTL digital-I/O board of the ME-1000 series: The cable ME AK-D78/1000 connects 2 ME-63Xtend* to a ME-1000/64; 2 cables ME AK-D78/1000 connect 4 ME-63Xtend* to a ME-1000/128.

Model Overview

Model Connector 1 Connector 2 Application
ME AK-D78/1000 1x 78-pin D-sub male 2x 78-pin D-sub female 2x ME-63Xtend (ME-631, ME-632, ME-633, ME-635*) to ME-1000/64 (2 cables required for ME-1000/128)
ME AK-D2578/1000 25-pin D-sub male 78-pin D-sub female One single additional ME-63Xtend (ME-631, ME-632, ME-633, ME-635*) to ME-63Xtend to ME-1000 (4 cables required for maximum system with ME-1000/128)

* The model ME-634 can NOT be used with the ME-1000!
