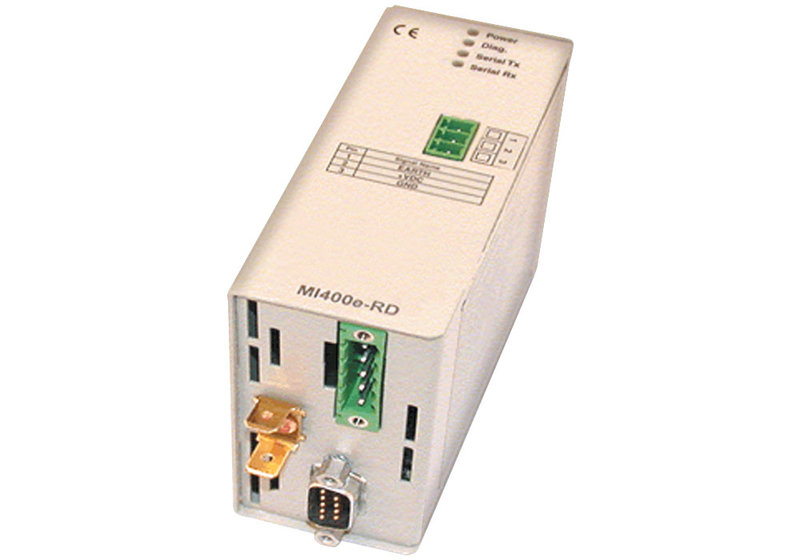

MI400e-RD - Isolated Industrial Converter RS232 to RS422, RS485

min Quantity
1 piece
Unit price
base price
Variants
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Files/Downloads

Benefits of the ACKSYS MI400e-RD Isolated Converter RS232 to RS422/RS485

  • Isolated industrial interface converter.
  • RS232-to-RS422 or RS485.
  • Sturdy, compact metal housing.

Compact Serial Industrial Converter with Full Isolation.

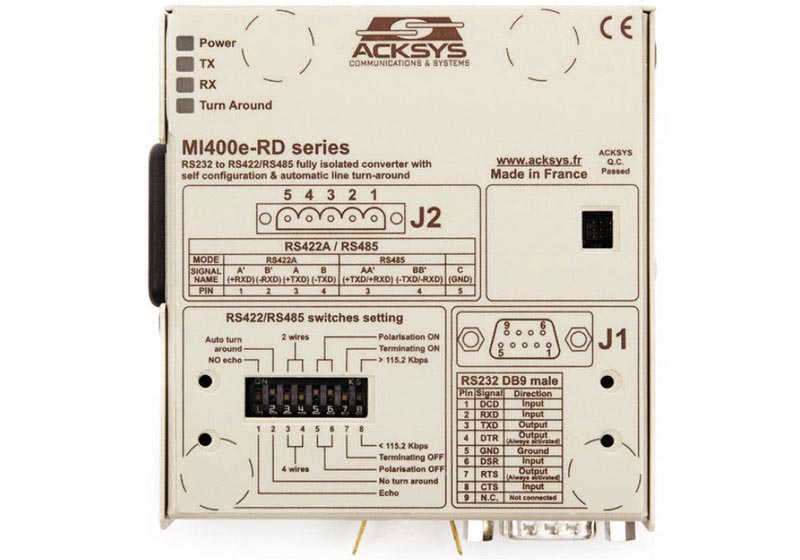

This compact, fully isolated converter with self configuration and automatic line turn-around is easy to install and converts RS232 to RS422/RS485. It has a metal, DIN-rail mountable enclosure.

  • Fully isolated converter from RS232 to RS422/RS485.
  • Self configurable serial link parameters.
  • Automatic RS485 line turn-around, software independent.
  • Rates 50 bps up to 2 Mbps.
  • Built-in continuous line surge protection, ESD protection, and lightening protection.
  • Robust metal housing.
  • No special software required for the MI400e-RD.
  • Available as a version for ower supply 110/220 VAC (incl. IEC-320 power cord) or +9...+36 VDC via screw terminal.
  • Incl. accessories for DIN-rail or wall/rack mounting.

Model Overview

Modell Description

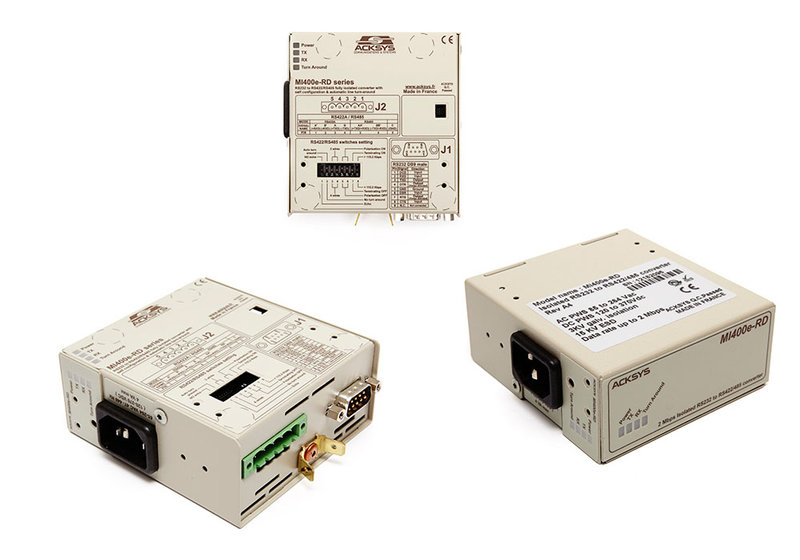

MI400e-RD-AC Fully isolated converter from RS232 to RS422/RS485.
Model for AC power supply 110/220 VAC (incl. IEC-320 power cord)
MI400e-RD-DC Fully isolated converter from RS232 to RS422/RS485.
Model for DC power supply +9...+36 VDC with screw terminal

Included: Module, user manual, AC model: IEC-320 power cord. Accessories for DIN-rail or wall/rack mounting.
