MicSig MOIP SigOFIT Gen3 Optical-Fiber Isolated Probes

MicSig MOIP SigOFIT Optical-Fiber Isolated Probes

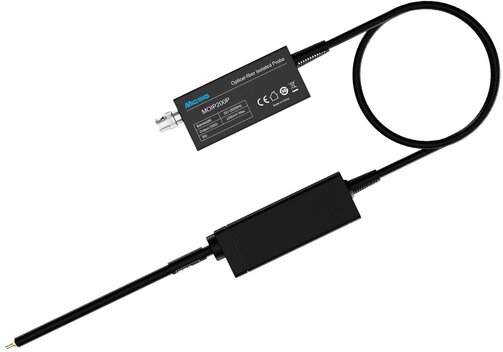

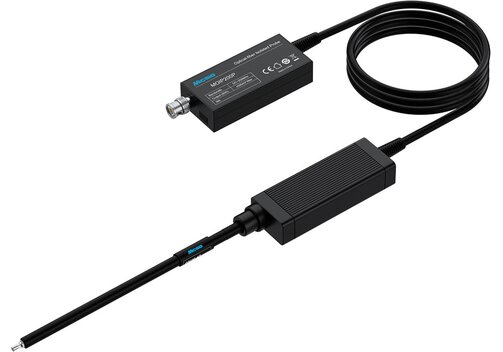

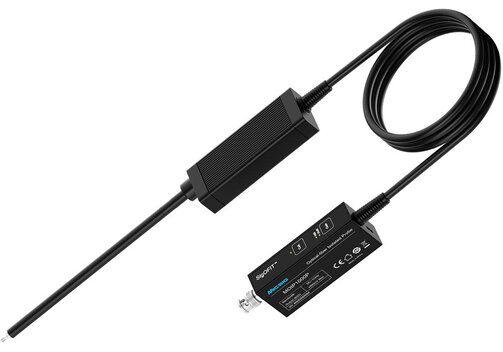

The Micsig SigOFit/MOIP series consists of fiber-optic-isolated probes with extremely high CMRR (up to 128 dB at 100 MHz/over 100 dB at 1 GHz) and isolation voltage. They consist of the following components:

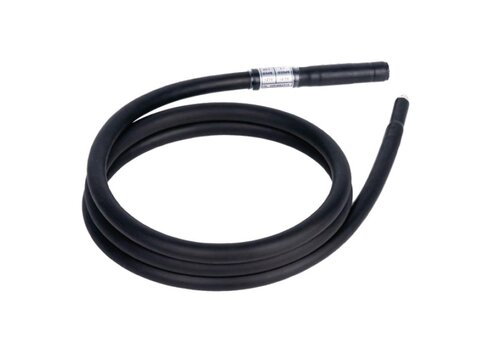

• Interchangeable probe tip (OP/OPER) with attenuator: It picks up the electrical signal to be measured.
• An electro-optical transducer (modulator) converts this analog voltage signal directly into an intensity- or phase-modulated light signal.
• The light signal is transmitted via the fiber-optic cable. Thus, the probe is completely galvanically isolated from the oscilloscope.
• An optoelectronic converter converts the optical signal back into a signal that the oscilloscope can process at its input.

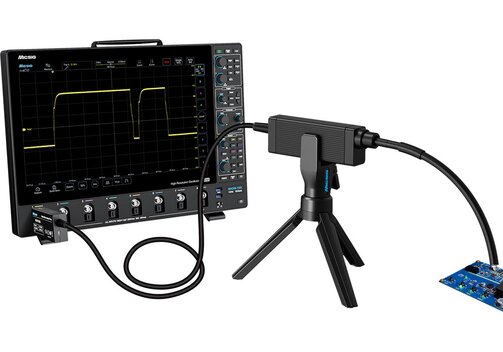

For safety and performance reasons, the probe and tip are not designed for use as a handheld probe. Instead, the probe can be mounted on a tripod, for example. The probe tip is connected, for example, via its connector to measurement terminals that have been soldered on specifically for this purpose.

Applications:

• Development of motor drives, power converters, and electronic ballasts.
• Design of GaN, SiC, and IGBT half-bridge and full-bridge devices.
• Design of inverters, UPS systems, and switching power supplies.
• Safety testing for high-voltage and high-bandwidth applications.
• Evaluation of power devices.
• Current shunt measurements.
• EMI and ESD troubleshooting.
• Floating measurements.

* Battery version.
