PeakTech P5615 Thermal Imaging Camera 160x120 Pixels, -20...550°C, USB

new
PeakTech P5610A thermal imager 160x120 pixels, -20...550°C, USB
additional images:
Price
499,00*
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Delivery Time ~3-5 workdays
Description

Benefits

  • Infrared picture resolution 160 x 120.
  • Temperature range -20...550°C.
  • Picture storage on micro SD card up to 8 GB.

PeakTech P5615 IR Thermal Imaging Camera 160 x 120 Pixels, -20...550°C with USB

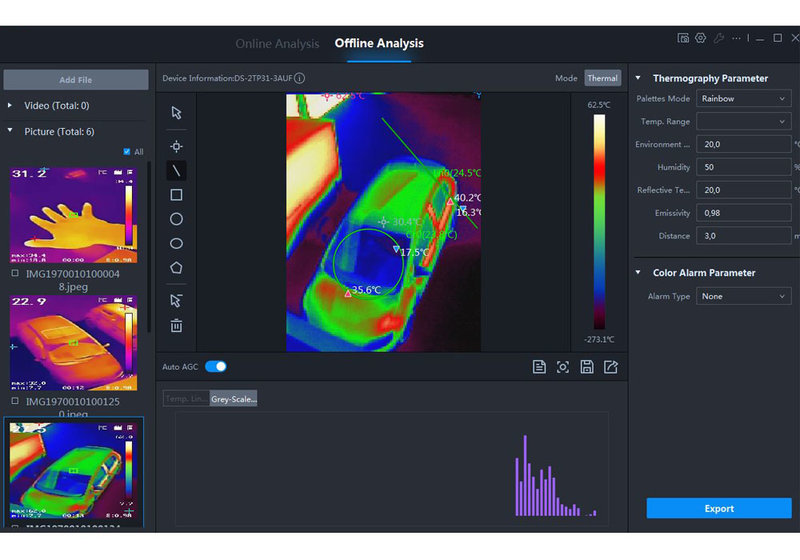

The PeakTech P5615 is a versatile thermal imaging camera with a resolution of 160 x 120 thermal pixels. The thermal imager's high-quality sensor makes even the smallest temperature differences visible. All thermal images can be opened and evaluated using the software included, with subsequent changes, e.g. can be done on the pallet selection.

  • Latest IR thermal imaging camera technics.
  • 2.4"/6.1 cm LCD color display and graphical menu navigation.
  • Thermal image resolution of 160 x 120 pixels.
  • Temperature range -20...550°C (-4...1022°F).
  • High quality thermal image sensor with high temperature sensitivity.
  • Fast thermal imaging with 25 Hz.
  • Four color palettes (Iron, Rainbow, White, Black).
  • Crosshairs, as well as cold and hot spot display.
  • Minimum and maximum value display.
  • Photo record with internal memory.
  • Records with time and date documentation.
  • USB interface for data transfer.
  • Also suitable for longer ranges (e.g. building thermography).
  • IP54 protected against dust and splash water.

Model Overview

ModelP5605P5610AP5615P5620
Thermal resolution60 x 60 pixels220 x 160 pixels160 x 120 pixels384 x 288 pixels
Temperature range-20...300°C/-4...572°F; 0.1°; resolution-20...300°C/-4...572°F; 0.1° resolution-20...550°C/-4...1022°F; 0.1° resolution-20...550°C/-4...1022°F; 0.1° resolution
Accuracy±2% or ±2°C±2% or ±2°C±2% or ±2°C±2% or ±2°C
Display2.4"/6 cm colour TFT2.8"/7 cm colour TFT2.4"/6.1 cm colour TFT3.5"/8.9 cm colour TFT
Thermal sensivity0.3°C0.07°C<40 mK<40 mK
Wave length20° x 20°27° x 35°37.2° x 50°37.2° x 28.5°
Field of view (FOV)8...14 µm8...14 µm8...14 µm17 µm; IFOV 1.7 mrad
Emissivity0.1...1.00.01...1.00.01...1.00.01...1.0
Image frequency6 Hz9 Hz25 Hz25 Hz
Storage internalMicro SD>20,000 picturesMicro SD up to 8 GBMicro SD up to 64 GB
Data interface-USBUSBUSB, WiFi, Bluetooth
Operation voltage4x 1.5 AA (UM-3) batteries2000 mAh/3.7 V battery3350 mAh/3.6 V Li-Ion battery5000 mAh/3.7 V battery
Dimensions (mm)62 x 212 x 95; approx. 320 g72 x 226 x 95; approx. 390 g59 x 196 x 78; approx 350 g100 x 244 x 104; approx. 660 g

Included: Thermal imager P 5615, USB cable, software, charger, and user manual
