PeakTech P6160 Laboratory DC Power Supply, 30V/30A/900W
Description
Files/Downloads
Benefits of the P6160 DC Power Supply up to 900 W
- Protection against short-circuit, overload and over-temperature.
- Resistance to RF interference from close range.
- LCD-display.

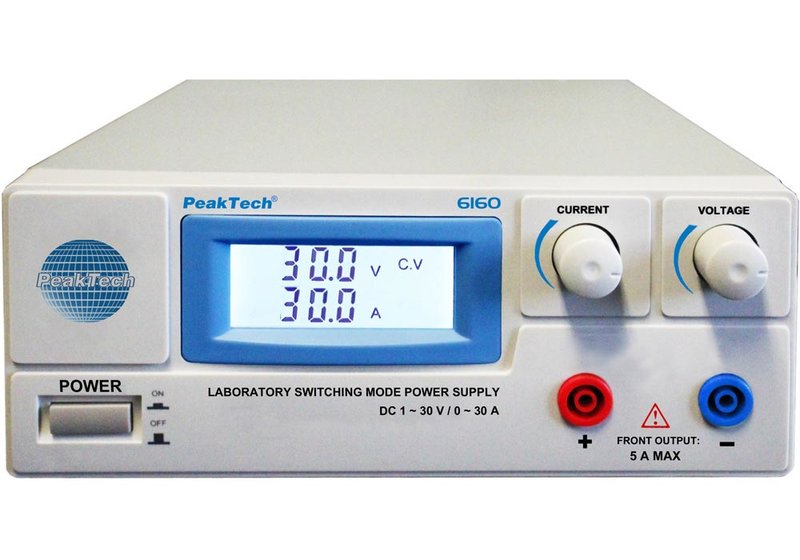

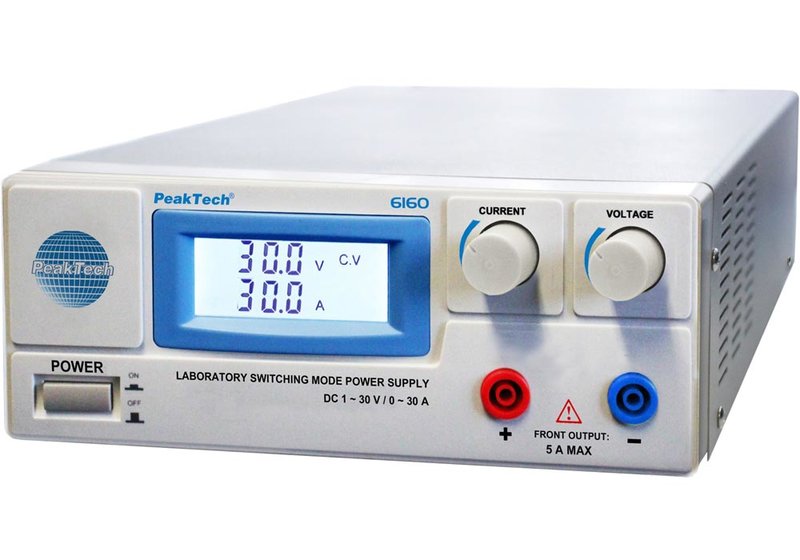

PeakTech P6160 Laboratory Switching Mode DC Power Supply, 30 V/30 A/900 W
The PeakTech P6160 is a switching power supply that is suitable for a wide range of applications in telecommunications, in the laboratory and in the industrial field. The power supply has exceptional resistance to high-frequency interference at close range. The constant current protection, the overvoltage protection and the protection against overtemperature with constant current guarantee the high reliability.
- DC labor power supply 0...30 V, 0...30 A, 900 W.
- DC output: Binding posts at the back up to 30 A.
- High efficiency.
- Protection against short-circuit, overload and over-temperature.
- LCD display to show output voltage and current values.
- Safety: EN 61010-1.
Model Overview
| Model | P6160 |
| Output power | 900 W |
| Output voltage | 1...30 VDC |
| Output current | 0...30 ADC |
| Ripple and noise | 100 mVPP (0...100% load) |
| Protection | Constant current and short-circuit protection |
| Display | Backlight LCD, 3 digits; voltage: ±1% + 3 digits; current: ±1% + 3 digits |
| Dimensions (mm) | 214 x 87 x 336; 3 kg |
Included: P 6160, power cord, user manual.
