Benefits of the Keysight P9241A 200 MHz USB Modular Oscilloscope

  • 200 MHz 2-channel USB PC oscilloscope.
  • High waveform capture rate of 1,000,000 Wfms/s for mores signal details.
  • Many options, for example arbitrary waveform generator, serial bus triggering/analysis, mask limit testing, frequency response analyzer.

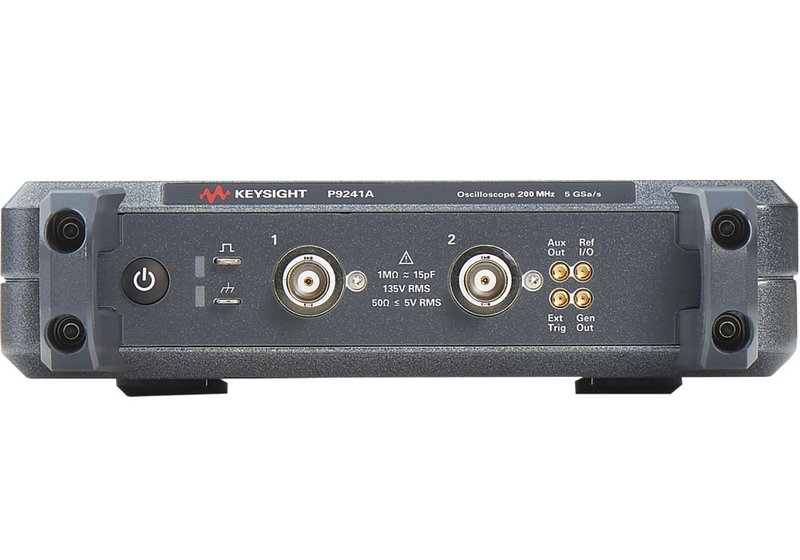

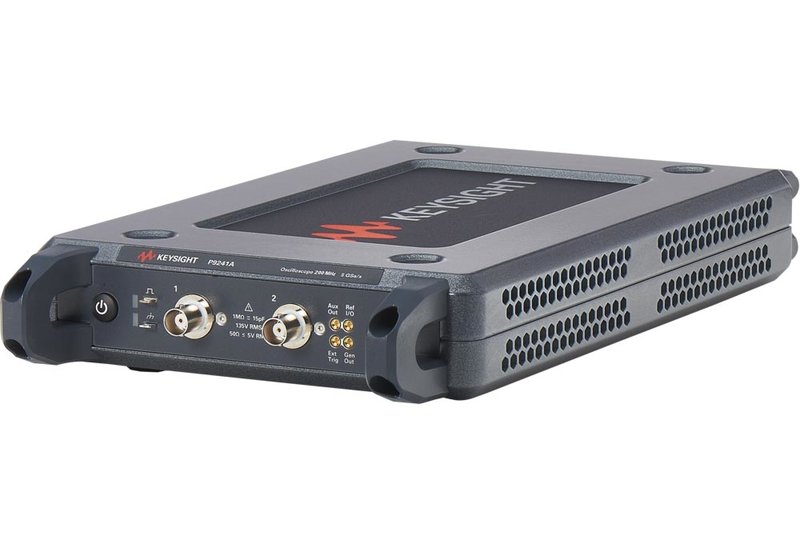

Keysight P9241A 2-Channel 200 MHz USB PC Oscilloscope

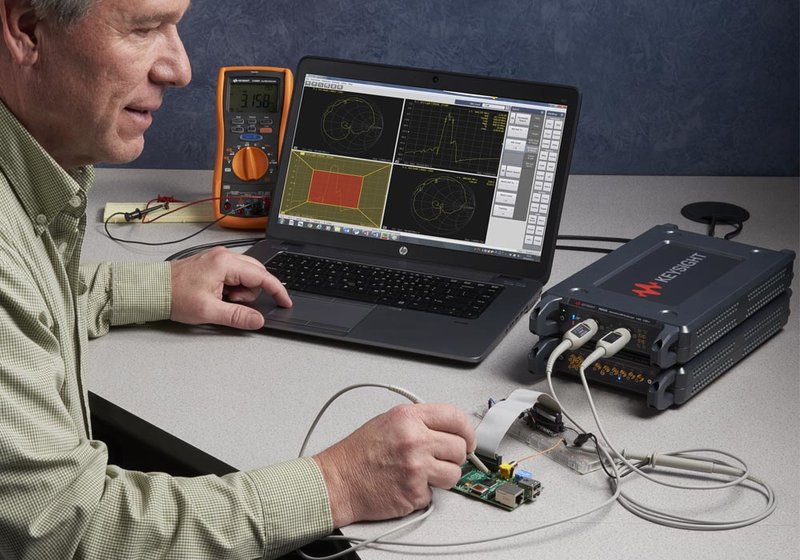

The USB PC oscilloscope P9241A from the Keysight Streamline Scope series offers an excellent performance and all the important functions and options you'll need for your embedded-testing or bench-measurement projects at a fair price. Three versions are available according to different bandwidth requirements and budgets. The P9241A has 2 analog channels and a bandwidth of up to 200 MHz. An arbitrary waveform generator is available as an option.

  • Bandwidth: 200 MHz.
  • 2 analog channels.
  • Sample rate: 5 GS/s one channel, 2.5 GS/s two channels.
  • Memory: 4 Mpts standard, segmented.
  • Update rate: 1,000,000 Wfms/s.
  • Waveform mathematics incl. FFT, automatic measurements, versatile triggering.
  • Integrated frequency counter (max. frequency = oscilloscope bandwidth).
  • Flexible options, for example arbitrary waveform generator, serial bus triggering/analysis, mask limit testing, frequency response analyzer.

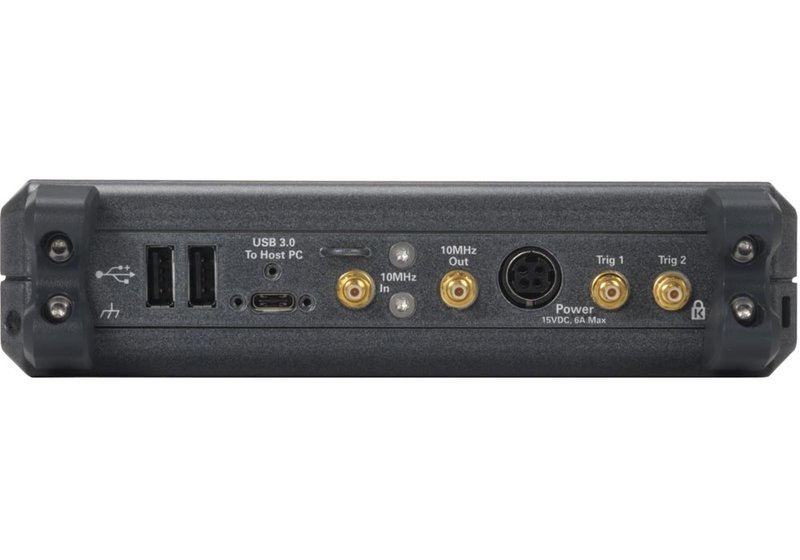

  • Interface: USB 3.0; externel power supply, no power is used from the USB connection.
  • Software for Windows 7 or 10 (64 bit).
  • Supported by BenchVue. BenchVue makes it simple to connect, control instruments, and automate test sequences.

Model Overview

Model Bandwidth Sample rate Channels Memory depth Max. update rate Waveform generator
P9241A 200 MHz 5 GS/s one channel, 2.5 GS/s two channels 2 4 Mpts standard, segmented 1,000,000 Wfms/s 20 MHz (option)
P9242A 500 MHz 5 GS/s one channel, 2.5 GS/s two channels 2 4 Mpts standard, segmented 1,000,000 Wfms/s 20 MHz (option)
P9243A 1 GHz 5 GS/s one channel, 2.5 GS/s two channels 2 4 Mpts standard, segmented 1,000,000 Wfms/s 20 MHz (option)

Included: USB PC oscilloscope PG 9241A, external power supply, 1 matching passive 10:1 probe per channel; documentation and software CD, calibration certificate.

Note: The recommended calibration interval for these devices is 2 years. Call or send an E-Mail for more information on calibration!

3Y Warranty & Keysight CARE

Agilent’s Electronic Measurement Group is now Keysight Technologies.

Datasheet_Keysight_P924xA_en.pdf
