Overview Pico Technology Active Differential High-Voltage Probes
Models TA041, TA042, TA043, TA044 Active Probes up to 25/70/100 MHz
The Pico Technology TA04x series are active differential probes suitable for high common-mode voltage measurement applicationss
Model Overview
| Model | Type | Bandwidth | Attenuation | More specifications |

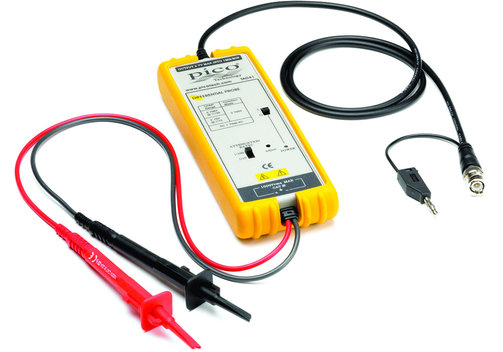

| TA041 | Differential, HV | 25 MHz | 10:1/100:1 | Rise time 14 ns; input impedance 4 MΩ||5.5 pF each side to ground; CMRR typ. 86 dB at 50 Hz/66 dB at 20 kHz; abs. max. voltage (diff. or common-mode) ±1400 V (DC + peak AC)/1000 VRMS CAT III; power supply: USB-type external supply, or battery |

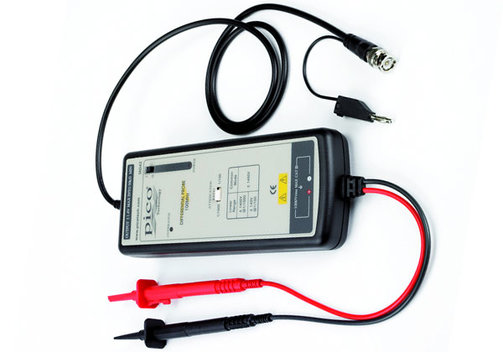

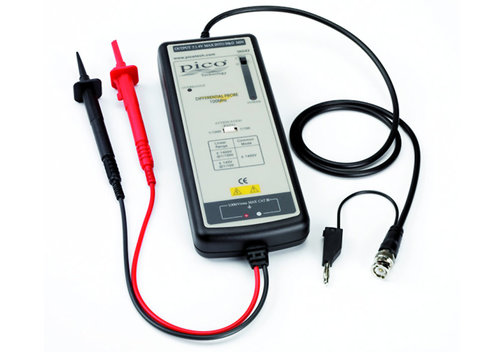

| TA042 | Differential, HV | 100 MHz | 100:1/1000:1 | Rise time 3.5 ns; input impedance 4 MΩ||7 pF each side to ground; CMRR typ. 80 dB at 60 Hz/50 dB at 1 MHz; abs. max. voltage (diff. or common-mode) ±1400 V (DC + peak AC)/1000 VRMS CAT III; power supply: USB-type external supply, or battery |
| TA043 | Differential, HV | 100 MHz | 10:1/100:1 | Input impedance 4 MΩ||7 pF each side to ground; CMRR typ. 85 dB at 50 Hz/55 dB at 1 MHz; abs. max. voltage (diff. or common-mode) 1000 VRMS CAT III (10:1 and 100:1); power supply: External main adaptor, or battery |
| TA044 | Differential, HV | 70 MHz | 100:1/1000:1 | Input impedance 10 MΩ||10 pF each side to ground; CMRR typ. 80 dB at 60 Hz/50 dB at 1 MHz; abs. max. voltage (common-mode) ±7000 V (DC + peak AC)/2500 VRMS; power supply: USB-type external supply, or battery |
