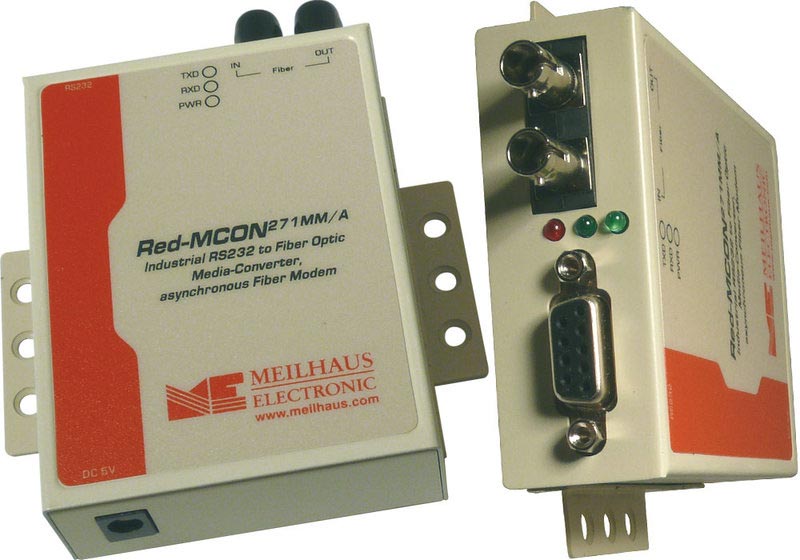

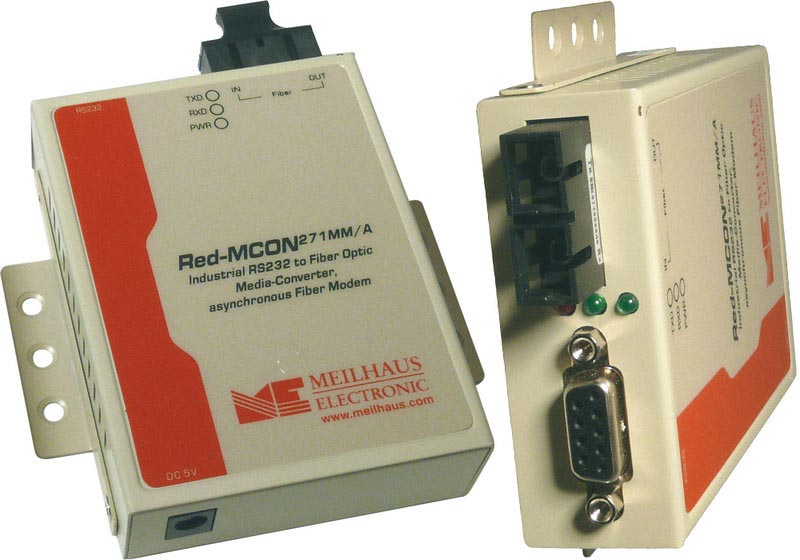

Red-MCON 271MM/A Media Converter RS232 to Fiber

Red-MCON 271MM/A converter RS232 to fiber
additional images:
Price
148,00*
€ 176,12 brutto
* excluding VAT plus shipping
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Description

Convert RS232 to Fiber: Up to 120 km with Full Galvanic Isolation.

The Red-MCON series media converters convert RS232 to fiber. Advantages: Extend transmission distances up to 120 km with full galvanic isolation. High immunity against EMI, eg. in industrial plants with motors and other switching devices.

  • Converts RS232 to fiber.
  • Supports rates up to 120 kbps. RS232: 9-pin D-sub female connector.
  • Both models available with optical SC or ST connectors. Note: Pairwise models of same type required!
  • Max. distance depending on fiber cable: Up to 2 km with multi-mode fiber, up to 120 km with single-mode fiber.
  • LEDs for power and transmission status.

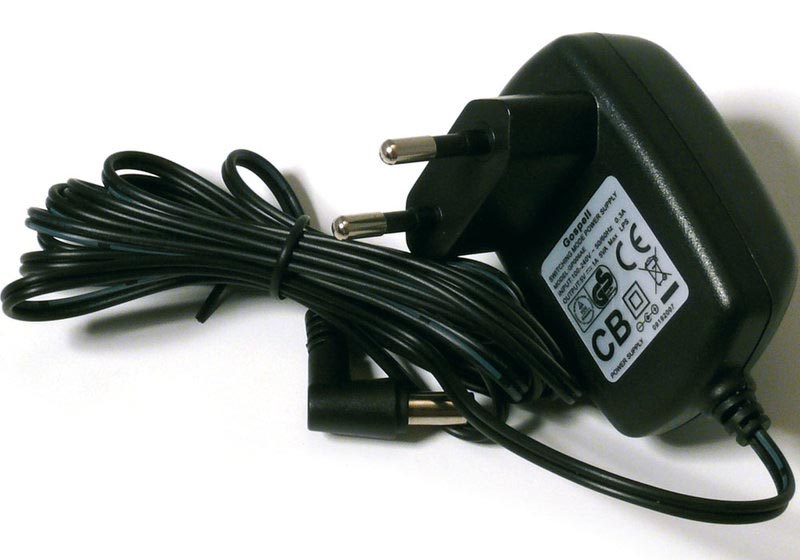

  • Power supply with external 5 V socket adaptor (included).
  • Very compact - only 70 x 27 x 95 (W x H x D in mm, without connectors/fixing clamp).

Model Overview

Model Interface 1 Interface 2 Max. distance Max. rate
Red-MCON 271MM/A ST RS232, 9-pin D-sub female Fiber, ST 2 km 120 kbps
Red-MCON 271MM/A SC RS232, 9-pin D-sub female Fiber, SC 2 km 120 kbps

Included: 1x Red-MCON module (one of the versions), external power-supply adaptor, instructions for use. Pairwise models of same type required! Fiber cable not included, commercial standard fiber cables can be used.
