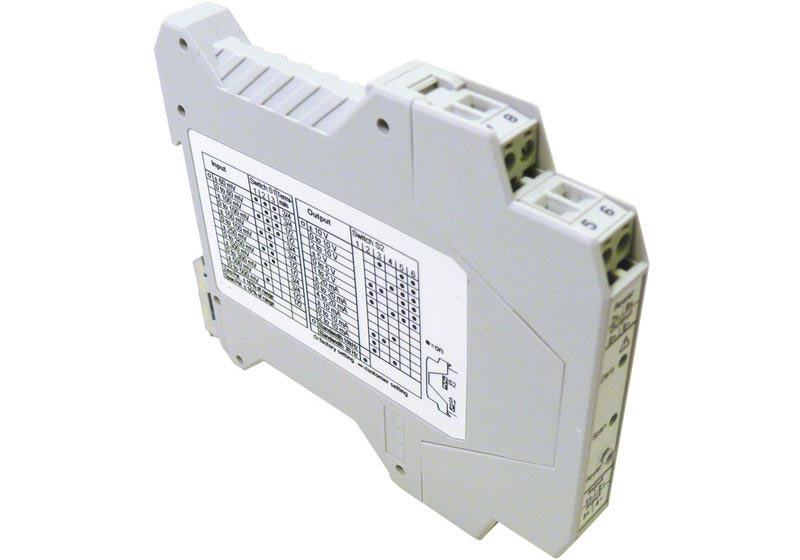

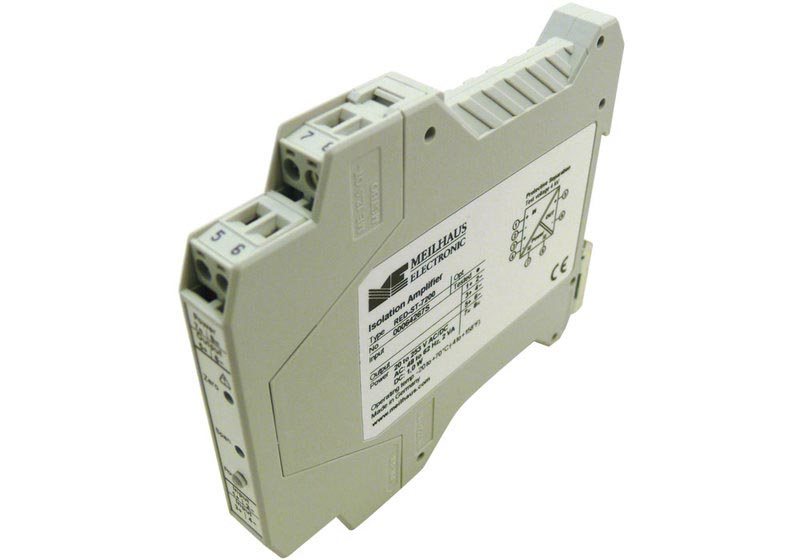

Red-STV-7200 Shunt Isolation Amplifier

Red-STV-7200 Shunt Isolation Amplifier
additional images:
Price

166,00*
* excluding VAT plus shipping
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Description

Benefits

  • 3-way isolation amplifier for bipolar/unipolar shunt voltages.
  • Various input/output ranges selectable.
  • Compact, rugged, DIN-rail mountable modules.

3-Way Isolation Amplifier for Shunt Voltages.

The 3-way isolation amplifier is used for electrical isolation and conversion of bipolar and unipolar shunt voltages. Input and output range can be set by using DIP switch. The zero/span adjustment on the front allows a fine-tuning of the measurement signal and the recalibration after a range selection. The 3-way isolation guarantees reliable decoupling of the sensor circuit from the processing circuit and prevents linked measurement circuits from influencing each other. The protective separation with high isolation level provides protection for personnel and downstream devices against impermissibly high voltage. The input signal is modulated and then electrically decoupled using a transformer. The isolated signal is then made available at the output, demodulated, filtered and amplified.

  • Shunt isolation amplifier, 3-way isolation.
  • Many input/output ranges can be combined (see table below). The table shows the default factory setting for your order. The ranges can be re-configured at any time with DIP switches.
  • Working voltage (basic insulation): 1000 V AC/DC for overvoltage category II and contamination class 2 acc. to EN 61010 part 1.
  • Test voltage 4 kV.
  • Power supply 20...253 V AC/DC, AC 48...62 Hz, approx. 2 VA, DC approx. 1.0 W.
  • Construction 12.5 mm housing, protection type: IP 20.
  • Pluggable screw connection solid/stranded 0.2 to 2.5 mm2, AWG 24 to 12 tightening torque 0.5 to 0.6 Nm. Weigth approx. 100 g.

Model Overview

(default factory setting only - can be re-configured at any time)

Model Input Ouput
Code Range Code Range
Red-STV-7200-
50 ±60 mV 0 ±10 V
51 0...60 mV 1 0...10 V
52 ±100 mV 2 2...10 V
53 0...100 mV 3 ±5 V
54 ±150 mV 4 0...5 V
55 0...150 mV 5 1...5 V
56 ±250 mV 6 ±20 mA
57 0...250 mV 7 0...20 mA
58 ±300 mV 8 4...20 mA
59 0...300 mV 9 ±10 mA
60 ±500 mV 10 0...10 mA
61 0...500 mV 11 2...10 mA

Other combinations on request!

Included: Module, instructions for use.
