Rigol SUA8000 Multi-channel Digital Transceiver
Description
Files/Downloads
Benefits of the SUA8000 Modular Digitizer/AWG Platform
- Multi-channel, multi-functional digital transceivers.
- Up to 8 channels; AWG or digitizer or combination/transceiver.
- Sample rate transmit up to 8 GS/s, receive up to 4 GS/s.

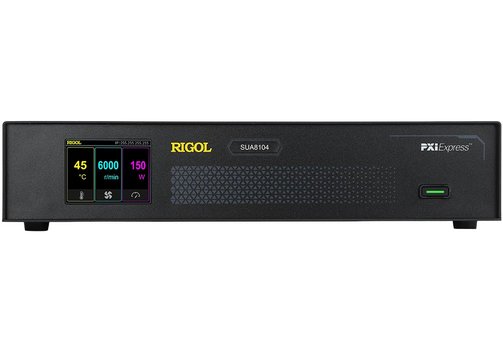

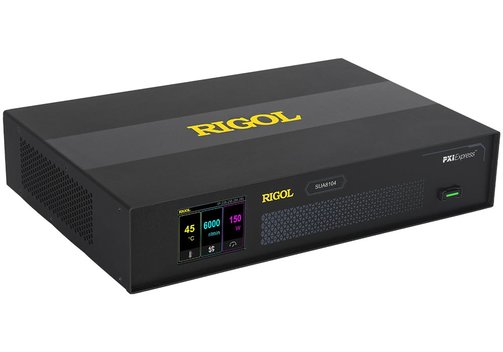

Rigol SUA8000 Multi-channel Digital Transceiver

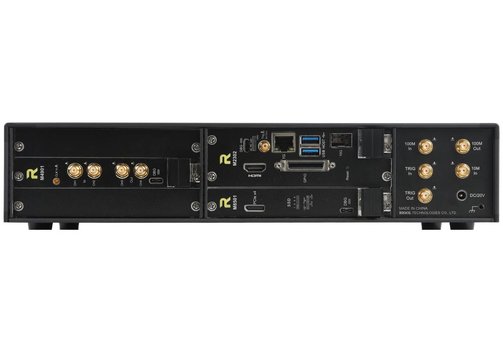

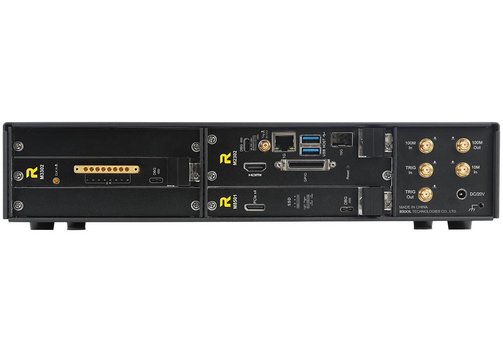

Rigol SUA8104, SUA8204, SUA8208, SUA8304, and G Multifunctional Transceivers
The Rigol SUA8000 is a scalable, modular AWG and/or digitizer platform designed for use in high-density and automated test environments. The device has up to 8 channel. It can work as AWG, digitizer, waveform recorder or a combination.
- Multi-channel digital transceiver, up to 8 channels.
- Multiple functions: AWG, digitizer, waveform recorder.
- Transmit: 8 GS/s sample rate, 14 bit vertical resolution.
- Receive: 4 GS/s sample rate, 14 bit vertical resolution.
- Up to 3000 waveform segments, fast loading via high-speed interface, complex waveform sequences such as loops, jumps, nesting, etc.
- Supports more than 100 devices with hundreds of channels working synchronously to enable highly stable waveform acquisition and generation.
Stability: ≤1 ps in-device, ≤10 ps inter-device. - Control type selectable: CPU for high performance, AI-controlled GPU with high computing power.
- 1 Gpts memory depth.
- 10 Gigabit Ethernet.
- Option: 16 TB waveform recording.
Model Overview
| Model | SUA8104 | SUA8204 | SUA8208 | SUA8304 | SUA8104G | SUA8204G | SUA8208G | SUA8304G |
| Digitizer channels | - | 4 | 8 | 2 | - | 4 | 8 | 2 |
| Sample rate | - | 4 GS/s | 4 GS/s | 4 GS/s | - | 4 GS/s | 4 GS/s | 4 GS/s |
| Bandwidth | - | DC...1.5 GHz | DC...1.5 GHz | DC...1.5 GHz | - | DC...1.5 GHz | DC...1.5 GHz | DC...1.5 GHz |
| Resolution | - | 14 bit | 14 bit | 14 bit | - | 14 bit | 14 bit | 14 bit |
| More digitizer specs (models with digitizer only) | -55 dBc SFDR; supports ring buffer and streaming operating modes; cache depth 1 Gpts/channel (except SUA8208: 512 Mpts/channel) | |||||||
| AWG channels | 4 | - | - | 2 | 4 | - | - | 2 |
| Sample rate | 8 GS/s | - | - | 8 GS/s | 8 GS/s | - | - | 8 GS/s |
| Bandwidth | DC...3.5 GHz | - | - | DC...3.5 GHz | DC...3.5 GHz | - | - | DC...3.5 GHz |
| Resolution | 14 bit | - | - | 14 bit | 14 bit | - | - | 14 bit |
| More AWG specs (models with AWG only) | -70 dBc SFDR; supports importing of external waveforms; supports advanced sequence to define outputs of various types of complex waveforms; arbitrary waveform length 1 Gpts/channel | |||||||
| Master control | CPU | GPU AI-controlled | ||||||
| Display | 2.8"/ basic status display; HDMI | |||||||
| Interfaces | USB 3.0, LAN/Ethernet 10 GbE SFP+, 1 GbE RJ45; GPIO RS232, RS422 | |||||||
| Dimensions (mm) | 340 x 236 x 68; up to approx. 4.5 kg | |||||||
| Options | M8501: 16 TB waveform recording extension option; SUA8000-SQ: AWG advanced sequence mode | |||||||
Included: Transceiver Rigol SUA 8104, 8204, 8208, 8304, or G-models, power adaptor.
