Tabor SE5082 5GS/s Dual-Channel Arbitrary Signal Generator

EOL/obsolete. ▸Click here to find replacement models.

Benefits of the SE5082 2-Channel Arbitrary and Function Generator, 12 bit, bis 2,5 GHz

• 5 Gs/s¹⁾ dual-channel arbitrary waveform generators, 12 bit, up to 2.5 GHz²⁾.
• Directly generate RF signals higher than 7 GHz for applications well beyond baseband and into the microwave frequencies.
• Powerful pulse composer for analog, digital and mixed signals.

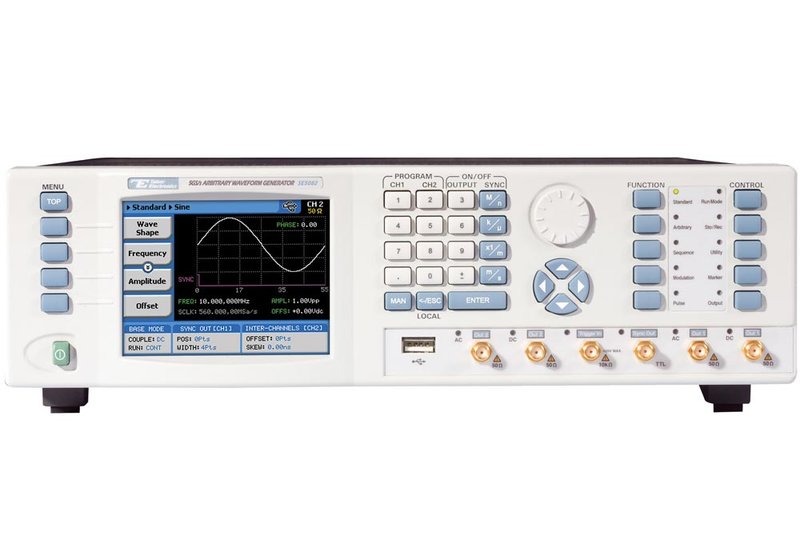

Tabor SE5082 5GS/s Dual-Channel Arbitrary Waveform Generator

The SE5082 of the Tabor Signal Expert SE Series is a dual-channel 5 Gs/s waveform generator with 12 bit resolution and an equivalent sample rate of 10 GS/s in RF mode. With an analog bandwidth of nearly 7 GHz, the generators can reach frequencies much higher than their sampling rate. Combining this vast analog bandwidth with multi Nyquist zone operation, the Signal Expert series is capable of solving applications well beyond baseband and into the microwave frequencies. This new technology combined with advanced arbitrary and sequencing capabilities, excellent spectral purity, configurable output modules, and advanced triggering make the SE5082 the highest performing and most cost effective AWG of its class and even beyond.

• Dual-channel 5 Gs/s waveform generators.
• 10 GS/s equivalent in RF mode.
• Resolution 12 bit.
• Directly generate RF signals higher than 7 GHz.
• Extremely fast rise and fall time of under 100 ps.
• Multi-Nyquist zone operation, up to the 4th Nyquist zone.
• Inter-channel skew control from -3 ns to +3 ns with 10 ps resolution.
• Independent or synchronized channels configurations.
• 32 M waveform memory and up to 64 M memory optional.
• AM, FM, FSK, PSK, ASK, amplitude and frequency hopping, Sweep and Chirp.
• Powerful pulse composer for analog, digital and mixed signals.
• Advanced sequencer for step, loop, nest and jumps scenarios.
• Various output amplifier modules utilized to solve numerous applications in different domains.
• Smart trigger allows: Trigger hold-off, detect <=> pulse width, as well as wait-for-waveform-end or abort waveform and restart.
• Built-in fast dynamic segments and sequences hop control.
• Two differential markers per channel with programmable positions, width and levels.
• User friendly GUI and remote control through Ethernet/LAN, USB, and GPIB.
• Store/recall capability on memory stick or 4 GB internal memory.
• Multi instrument synchronization.

Model Overview

1) 10 GS/s equivalent in RF mode.
2) For sine wave.
