TekBox TBCG Series Comb Generators
Benefits of the TekBox TBCG Comb Generators and Frequency Multipliers
- TBCG1 radiates a comb spectrum characterized up to 6 GHz; tolerance ±2.5 dB.
- TBCG2 optimized for moderate drive power and flatness of the spectrum in the frequency range 1 MHz to 2.5 GHz.
- TBCG3-CN comb generator to verify conducted emission test set ups.

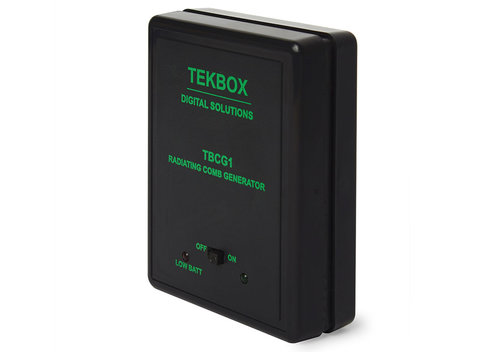

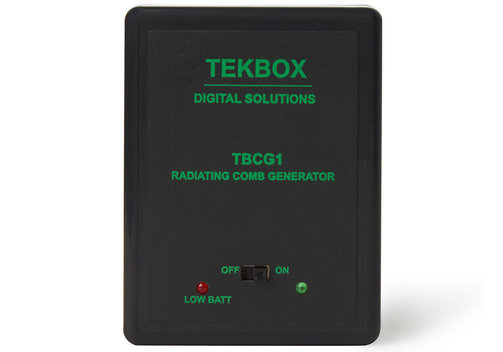

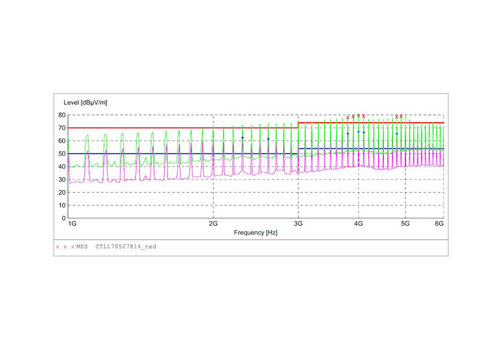

TekBox TBCG1 Radiating Comb Generator
The TekBox TBCG1 is a radiating comb generator with an internal antenna. It radiates a comb spectrum characterized up to 6 GHz and can be used as a rough reference for testing radiated noise measurement set ups in anechoic chambers, TEM/GTEM cells, shielded chambers, etc.

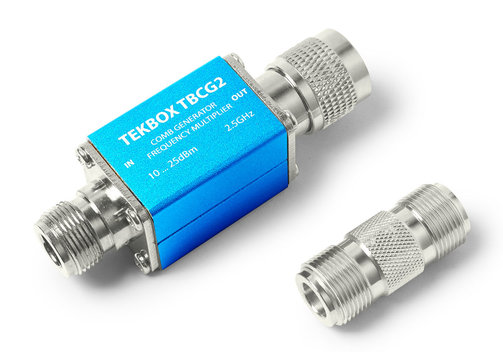

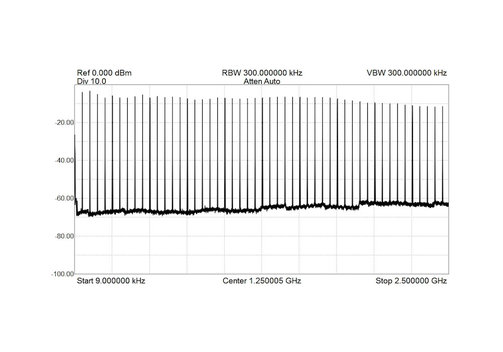

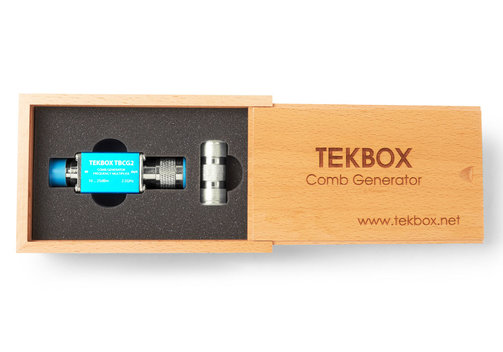

TekBox TBCG2 Comb Generator and Frequency Multiplier
The TekBox TBCG2 is a comb generator and frequency mutiplier. It is optimized for moderate drive power and flatness of the spectrum in the frequency range from 1 MHz to 2.5 GHz. The recommended drive power is +10 dBm to +20 dBm. The frequency range for the control signal is 1 MHz to 350 MHz.
TekBox TBCG3-CN Comb Generator
The TekBox TBCG3-CN is a comb generator to verify conducted emission test set ups. It is a useful tool to validate correct operation of the LISN, correct set-up and correct configuration of the spectrum analyzer. A rotary switch allows you to choose between five fixed comb frequencies and an external excitation input with a frequency range of 5 kHz to 300 MHz. The TBCG3-CN produces a comb spectrum with approximately 8 dB flatness in the frequency range up to 1.5 GHz and has a 50Ω output with a female N-connector.
Model Overview
| Model | TBCG1-25MHz | TBCG1-100 MHz | TBCG2 | ▸TBCG3-CN |
| Device type | Radiating comb generator with internal antenna1) | Passive, step recovery diode based comb generator/frequency multiplier | Comb generator | |
| Characterized comb spectrum | 30 MHz...6 GHz | 1 MHz...2.5 GHz | Selectable, fixed comb frequencies: 100 kHz, 500 kHz, 1 MHz, 5 MHz, 10 MHz | |
| Base frequency | 25 MHz | 100 MHz | External, 2...300 MHz | Switchable 0.1, 0.5, 1, 5, 10 MHz, external 5 kHz...300 MHz |
| External input | - | Only external | ✓ | |
| Further specifications | Tolerance: ±3 dB | Tolerance: ±2.5 dB |
|
|
| Power supply | 9-V battery; current consumption 80 mA | 175 mA | Passive | 4x NiMH, AA | |
| Accessories | - | - | External universal charger | |
| Application | Reference for radiated emissions; rough reference for testing radiated noise measurement set ups in anechoic chambers, TEM/GTEM cells, shielded chambers, etc. | General purpose, frequency multiplier | Reference for conducted emissions verify conducted emission test set ups. It is a useful tool to validate correct operation of the LISN, correct set-up and correct configuration of the spectrum analyzer. | |
| Dimensions (mm) | 80 x 61 x 27; 76 g (incl. battery) | 81 x 26 x 26; 96 g | Housing diameter 180/housing height 60; 1250 g | |
1) Warning: the TBCG1 radiates across a wide spectrum, significantly exceeding radiating noise limits specified in any CISPR standard. Use it only in a shielded environment to avoid interference with other electronic products.
