TekBox TBCG3-RN6/RN2/CN Comb-Generators up to 3 or 6GHz
TekBox TBCG3-RN6/RN2/CN Comb-Generators up to 3 or 6 GHz
The TekBox comb generators TBCG3-RN2 and TBCG3-RN6 are primarily intended for testing radiation setups. They are used to verify the proper operation of antennas and preamplifiers, as well as the accurate setup and configuration of spectrum analyzers. The devices are well characterized in an anechoic chamber, and the radiated emission patterns can be used as a reference to compare a DUT in a less than ideal setup with the comb generator in the same location.

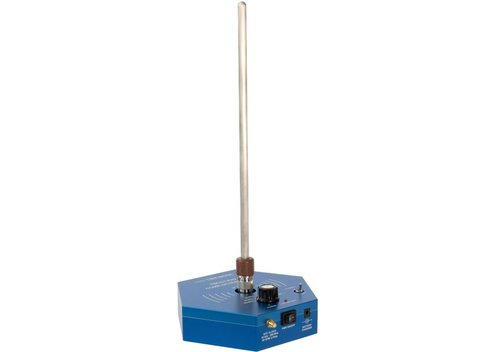

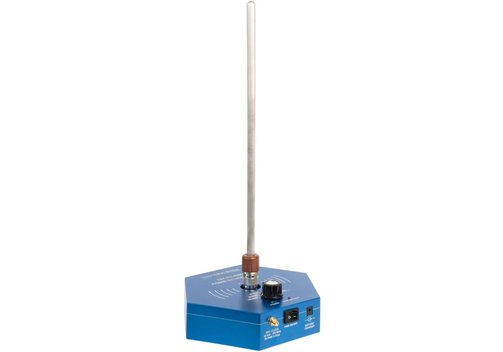

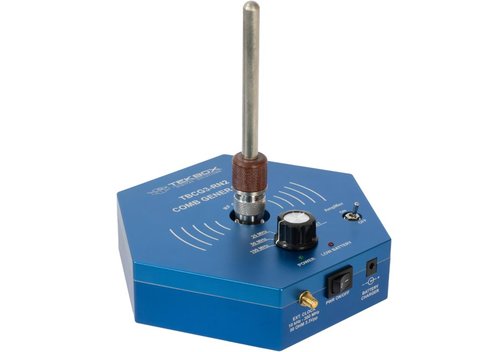

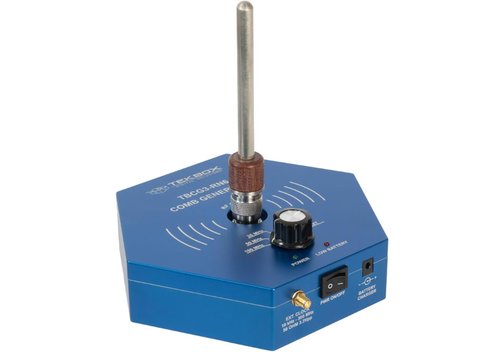

Five fixed comb frequencies can be selected with a rotary switch, as well as an external comb frequency input with a range from 5 kHz to 200 MHz. The comb generators are supplied with two monopole antennas, a 30-cm monopole for frequencies up to 300...500 MHz and a 10-cm monopole for frequencies above that. The radiated comb spectrum is characterized from 5 MHz to 3 or 6 GHz. The TBCG3-RN2 and the TBCG3-RN6 have a 50-Ω output with an N female connector. The devices are powered by six AA NiMH rechargeable batteries each and are supplied including an external charger. The housing is machined from solid aluminum. The bottom has a 1/4" - 20 UNC thread that accepts normal tripod bolts.

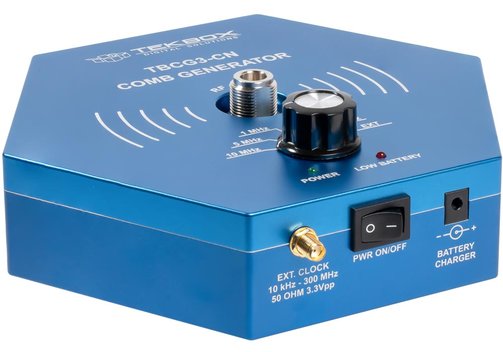

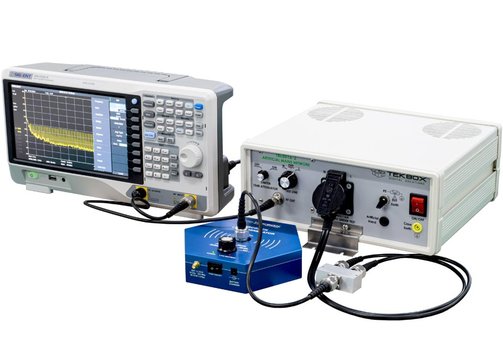

The TekBox TBCG3-CN comb generator is primarily designed to verify conducted emission test set ups. It is a useful tool to validate correct operation of the LISN, correct set-up and correct configuration of the spectrum analyzer.
Model Overview
| Model | TBCG3-RN2 | TBCG3-RN6 | TBCG3-CN |
| Characterized frequency range | 5 MHz...3 GHz | 5 MHz....6 GHz | 1.5 GHz |
| Comb spectrum flatness | Up to 1.5 GHz, amplifier off: typ. 8 dB at RF connector Up to 1.5 GHz, amplifier on: typ. 12 dB at RF connector | Up to 2 GHz: typ. 10 dB at RF connector Up to 6 GHz: typ. 40 dB at RF connector | typ. 8 dB |
| Output impedance | 50 Ω | ||
| Output power | -5 dBm max. at 100 MHz fcomb; decreasing 6 dB with every fcomb/2 | 0 dBm max. at 100 MHz fcomb; decreasing 6 dB with every fcomb/2 | 66 dBµV at 10 MHz fcomb; decreasing 6 dB with every fcomb/2 |
| Amplitude stability | <0.2 dB; <0.1 dB after 15 minutes | ||
| Aging | <0.5 dB over 12 months | ||
| Output connector | N-female | ||
| Selectable, fixed comb frequencies | 100 MHz, 50 MHz, 25 MHz, 10 MHz, 5 MHz | 100 kHz, 500 kHz, 1 MHz, 5 MHz, 10 MHz | |
| Frequency stability | 50 ppm | ||
| External excitation input | 5 kHz...200 MHz at square input signal; 3.3 Vpp max., 100 kHz...200 MHz at sinus input signal; 3.3 Vpp max. | 5 kHz...300 MHz at square input signal; 3.3 Vpp max., 100 kHz...300 MHz at sinus input signal; 3.3 Vpp max. | |
| External input impedance | 50 Ω | ||
| Input connector | SMA-female | ||
| Antennas | 30 cm monopole for f<300...500 MHz; 10 cm monopole for f>300...500 MHz | - | |
| Indicators | Power On LED, Low Battery LED | ||
| Power supply | 6x AA NiMH (e.g. Varta Mignon 2700, not supplied); charger: External; Ansmann ACS310 | 4x AA NiMH (e.g. Varta Mignon 2700, not supplied); charger: External; Ansmann ACS310 | |
| Operation time | Battery capacity/96 mA (ampl. off) or 181 mA (ampl. on) | Battery capacity/91 mA | Battery capacity/70 mA |
| Temperature range | -10...+45°C; lower operating temperature depending on batteries | ||
| Dimensions | Housing diameter: 180 mm; housing height: 60 mm; weight: 1250 g | ||
